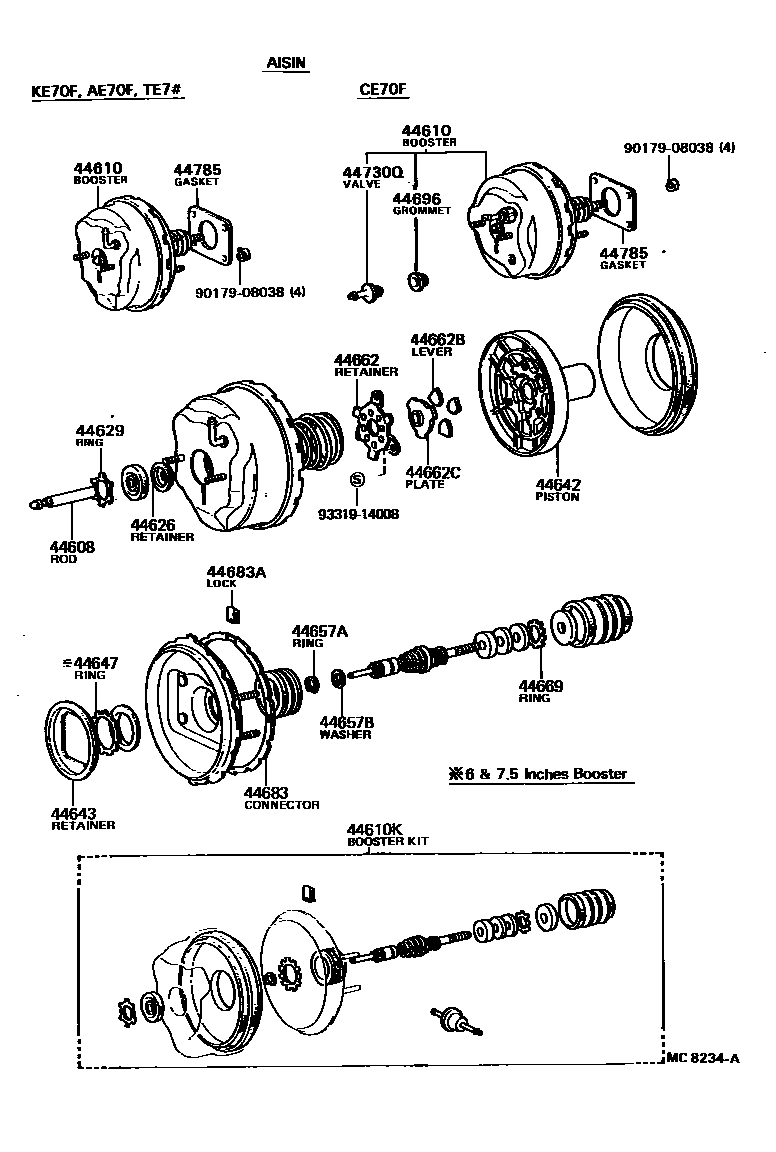

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20460iAE70,CE70,KE70,TE70197903-198304

5 & 6 INCHES,AISIN

sub44606-35100

main44606-35100iTE71197903-197908

7.5 INCHES,AISIN

main44608-12080iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,JKC

main44608-14040iTE7#..GT,SR,TRR,TRS197908-198304

7.5 INCHES,JKC

44610BOOSTER ASSY, BRAKE

main44610-12210iKE70..DX,SPD197903-198304

5 INCHES,AISIN

main44610-12230iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,AISIN

main44610-12250iTE71197903-197908

7.5 INCHES,AISIN

main44610-12260iTE7#..GT,SR,TRR,TRS197908-198304

7.5 INCHES,JKC

main44610-12340iCE70198202-198304

6 INCHES,AISIN

44610KBOOSTER KIT, BRAKE

main04443-12120iKE70..DX,SPD197903-198304

5 INCHES,AISIN

main04443-12140iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,AISIN

main04443-12150iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,JKC

main04443-12160iTE71197903-197908

7.5 INCHES,AISIN

main04443-12170iTE7#..GT,SR,TRR,TRS197908-198304

7.5 INCHES,JKC

main04443-12200iCE70198202-198304

6 INCHES,AISIN

44626RETAINER, BOOSTER ROD CUP

main44626-60010iAE70,KE70,TE71197903-198304

AISIN

44629RING, CIRCULAR INTERNAL

main44628-60010iAE70,KE70,TE71197903-198304

AISIN

44642PISTON, BRAKE BOOSTER

main44642-12070iKE70..DX,SPD197903-198304

5 INCHES,AISIN

main44642-14040iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,JKC

main44642-14170iTE71197903-197908

7.5 INCHES,AISIN

main44642-14190iAE70,CE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,AISIN

main44642-20140iTE7#..GT,SR,TRR,TRS197908-198304

7.5 INCHES,JKC

44643RETAINER, DIAPHRAGM

main44643-60010iAE70,KE70,TE71197903-198304

AISIN

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iAE70,TE71;KE70..ST,XL197903-198304

6 & 7.5 INCHES,AISIN

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iAE70,KE70,TE71197903-198304

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iAE70,KE70,TE71197903-198304

AISIN

44662RETAINER, REACTION, NO.1

main44662-35100iAE70,KE70,TE71197903-198304

AISIN

44662BLEVER, REACTION

main44661-35100iAE70,KE70,TE71197903-198304

AISIN

44662CPLATE, REACTION, NO.1

main44607-12230iAE70,CE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,AISIN

main44607-20470iTE71197903-197908

7.5 INCHES,AISIN

sub44607-22330

main44607-35130iKE70..DX,SPD197903-198304

5 INCHES,AISIN

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iAE70,KE70,TE71197903-198304

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-12070iKE70..DX,SPD197903-198304

5 INCHES,AISIN

main44682-20100iAE70,TE70;KE70..SE,SR,ST,XL197903-198304

6 INCHES,AISIN

main44682-20150iTE71197903-197908

7.5 INCHES,AISIN

main44682-20150iCE70198202-198304

6 INCHES,AISIN

44683ALOCK, CONNECTOR

main44683-20100iAE70,KE70,TE71197903-198304

AISIN

44696GROMMET, CHECK VALVE

main90480-24439iCE70198202-198304

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-22080iCE70198202-198304

44785GASKET, BRAKE BOOSTER

main44785-14010iAE70,CE70,KE70,TE7#197903-198304

9017908038

main90179-08038

9331914008

main93319-14008

21 parts on this diagram · 3 diagrams in section
