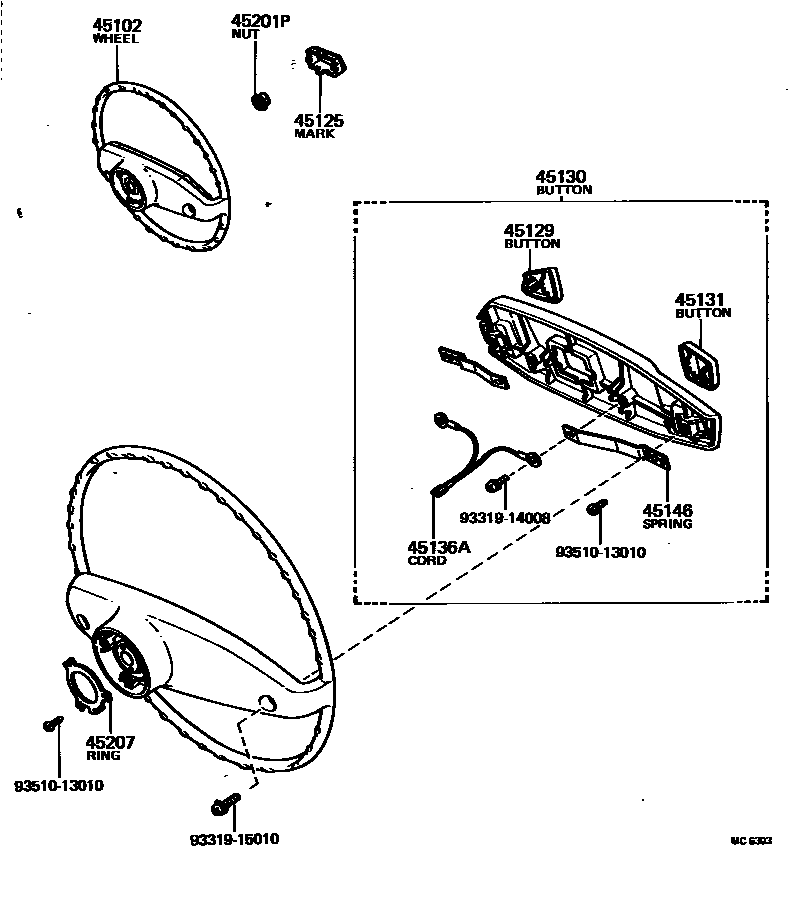

STEERING WHEEL

0001 1 0002 1 0003 1 0004 1

45102WHEEL SUB-ASSY, STEERING

main45100-12121iAE70,KE70..DX,SPD197903-198108

BLACK

main45100-12230-01iAE70,KE70,TE70..ST,XL197903-198108

BLACK,BLACK,TRIM2#

sub45100-12230

main45100-12230-04iAE70,KE70,TE70..ST,XL197903-198108

BLUE,BLUE,TRIM8#

sub45100-12230

main45100-12230-05iAE70,KE70..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub45100-12230

main45100-12230-06iAE70,KE70,TE70..(ST,XL)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

sub45100-12230

main45100-12230-15iAE70,KE70,TE70..XL..4D197908-198108

BEIGE,BEIGE,TRIM4#

sub45100-12230

main45100-12250-01iAE70,TE70..SR197903-198108

BLACK,BLACK,TRIM2#

sub45100-12250

main45100-12250-04iAE70,TE70..SR197903-198108

BLUE,BLUE,TRIM8#

sub45100-12250

main45100-12250-06iAE70,TE70..SR197903-198108

DARK BROWN,BROWN,TRIM4#

sub45100-12250

main45100-12260-01iAE70,TE70..SE197903-198002

BLACK,BLACK,TRIM2#

sub45100-12261

main45100-12260-04iAE70,TE70..SE197903-198002

BLUE,BLUE,TRIM8#

sub45100-12261

main45100-12260-05iAE70..SE..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub45100-12261

main45100-12260-06iAE70,TE70..SE..2D197903-198002

DARK BROWN,BROWN,TRIM4#

sub45100-12261

main45100-12260-15iAE70,TE70..SE..4D197908-198002

BEIGE,BEIGE,TRIM4#

sub45100-12261

main45100-12261-01iAE70,CE70,KE70,TE70..SE198002-198304

WOODY,BLACK,BLACK,TRIM2#

sub45100-12261

main45100-12261-04iAE70,CE70,KE70,TE70..SE198002-198304

WOODY,BLUE,BLUE,TRIM8#

sub45100-12261

main45100-12261-06iAE70,CE70,KE70..SE198108-198304

WOODY,DARK BROWN,BROWN,TRIM4#

sub45100-12261

main45100-12261-06iAE70,TE70..SE198002-198108

DARK BROWN,BROWN,TRIM4#

sub45100-12261

main45100-12261-15iAE70,TE70..SE..4D198002-198108

BEIGE,BEIGE,TRIM4#

sub45100-12261

main45100-12270-01iTE71197903-198108

BLACK,BLACK,TRIM2#

sub45100-12370

main45100-12270-04iTE71..2D197903-198108

BLUE,BLUE,TRIM8#

sub45100-12370

main45100-12270-06iTE71..2D197903-198108

DARK BROWN,BROWN,TRIM4#

sub45100-12370

main45100-12310iAE70,CE70,KE70..DX,SPD198108-198304

BLACK

sub45100-12311

main45100-12330-01iAE70,CE70,KE70..XL198108-198304

BLACK,BLACK,TRIM2#

sub45100-12331

main45100-12330-04iAE70,CE70,KE70..XL198108-198304

BLUE,BLUE,TRIM8#

sub45100-12331

main45100-12330-06iAE70,CE70,KE70..XL198108-198304

DARK BROWN,BROWN,TRIM4#

sub45100-12331

main45100-12350-01iAE70,KE70,TE71..SR,SX,TRS198108-198304

BLACK,BLACK,TRIM2#

sub45100-12350

main45100-12350-04iAE70,KE70,TE71..SR,SX,TRS198108-198304

BLUE,BLUE,TRIM8#

sub45100-12350

main45100-12350-06iAE70,KE70,TE71..SR,SX,TRS198108-198304

DARK BROWN,BROWN,TRIM4#

sub45100-12350

main45100-12370-11iTE71..GT,TRR198108-198304

BLACK,BLACK,TRIM2#

sub45100-12370

main45100-12370-14iTE71..(GT,TRR)..2D198108-198304

BLUE,BLUE,TRIM8#

sub45100-12370

main45100-12370-16iTE71..(GT,TRR)..2D198108-198304

DARK BROWN,BROWN,TRIM4#

sub45100-12370

45125MARK, STEERING WHEEL PAD

main45125-12180iAE70,KE70..DX,SPD197903-198108

BLACK

main45125-12200-01iAE70,CE70,KE70,TE7#..GT,ST,TRR,XL197903-198304

BLACK,BLACK,TRIM2#

main45125-12200-04iAE70,KE70,TE70..ST,XL197903-198304

BLUE,BLUE,TRIM8#

main45125-12200-05iAE70,KE70,TE70..XL..4D197903-198108

BEIGE,BEIGE,TRIM4#

main45125-12200-06iAE70,KE70,TE70..(ST,XL)..2D197903-198304

DARK BROWN,BROWN,TRIM4#

main45125-12220-01iAE70,KE70..HT..XL197903-198304

BLACK,BLACK,TRIM2#

main45125-12220-01iAE70,CE70,KE70,TE71..SE,SR,SX,TRS198108-198304

WHEEL=WOODY,BLACK,BLACK,TRIM2#

main45125-12220-04iAE70,TE70..SE,SR197903-198304

BLUE,BLUE,TRIM8#

main45125-12220-05iAE70,TE70..SE..4D197903-198108

BEIGE,BEIGE,TRIM4#

main45125-12220-06iAE70,CE70,KE70,TE71..SE,SR,SX,TRS198108-198304

WHEEL=WOODY,DARK BROWN,BROWN,TRIM4#

main45125-12220-06iAE70,TE70..(SE,SR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main45125-12290iAE70,CE70,KE70..DX,SPD198108-198304

BLACK

45129BUTTON, HORN, NO.2

main45131-12061iAE70,KE70..DX,SPD197903-198108

main45131-12140iAE70,CE70,KE70,TE7#..GT,ST,TRR,XL197903-198304

sub45131-12210

main45131-12150iAE70,KE70,TE7#..SR,SX,TRS197903-198304

main45131-12160iAE70,CE70,KE70,TE70..SE197903-198304

main45131-12160iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

main45131-12170iAE70,CE70,KE70..DX,SPD198108-198304

sub45131-12200

45130BUTTON ASSY, HORN

main45130-12111iAE70,KE70..DX,SPD197903-198108

BLACK

main45130-12200-01iAE70,CE70,KE70,TE70..ST,XL197903-198304

BLACK,BLACK,TRIM2#

sub45130-12201

main45130-12200-04iAE70,CE70,KE70,TE70..ST,XL197903-198304

BLUE,BLUE,TRIM8#

sub45130-12201

main45130-12200-05iAE70,KE70..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub45130-12201

main45130-12200-06iAE70,KE70,TE70..(ST,XL)..2D197903-198304

DARK BROWN,BROWN,TRIM4#

sub45130-12201

main45130-12200-15iAE70,KE70,TE70..XL..4D197908-198108

BEIGE,BEIGE,TRIM4#

sub45130-12201

main45130-12210-01iTE71197903-198108

BLACK,BLACK,TRIM2#

sub45130-12211

main45130-12210-04iTE71..2D197903-198108

BLUE,BLUE,TRIM8#

sub45130-12211

main45130-12210-06iTE71..2D197903-198108

DARK BROWN,BROWN,TRIM4#

sub45130-12211

main45130-12211-01iTE71..GT,TRR198108-198304

BLACK,BLACK,TRIM2#

sub45130-12212

main45130-12211-04iTE71..(GT,TRR)..2D198108-198304

BLUE,BLUE,TRIM8#

sub45130-12212

main45130-12211-06iTE71..(GT,TRR)..2D198108-198304

DARK BROWN,BROWN,TRIM4#

sub45130-12212

main45130-12220iAE70,CE70,KE70..DX,SPD198108-198304

BLACK

sub45130-12221

45131BUTTON, HORN, NO.1

main45129-12020iAE70,KE70..DX,SPD197903-198108

main45129-12040iAE70,CE70,KE70,TE7#..GT,ST,TRR,XL197903-198304

sub45129-12110

main45129-12050iAE70,KE70,TE7#..SR,SX,TRS197903-198304

main45129-12060iAE70,CE70,KE70,TE70..SE197903-198304

main45129-12060iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

main45129-12070iAE70,CE70,KE70..DX,SPD198108-198304

sub45129-12100

45136PLATE, HORN BUTTON CONTACT

main45136-12090iAE70,CE70,KE70,TE7#..GT,ST,TRR,XL197903-198304

main45136-12100iAE70,CE70,KE70,TE7#..SE,SR,SX,TRS197903-198304

main45136-12100iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

45136ACORD(FOR HORN CONTACT RING)

main90945-02026iAE70,KE70,TE7#..DX,GT,SPD,ST,TRR,XL197903-198304

main90945-02040iAE70,KE70..DX,SPD198108-198112

main90945-02042iAE70,CE70,KE70,TE7#..SE,SR,SX,TRS197903-198304

main90945-02042iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

main90945-02061iAE70,CE70,KE70..DX,SPD198112-198304

45146SPRING, HORN BUTTON CONTACT

main45146-12021iAE70,KE70..DX,SPD197903-198108

main45146-12060iAE70,CE70,KE70,TE7#..GT,ST,TRR,XL197903-198304

main45146-12070iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

main45146-12070iAE70,CE70,KE70,TE7#..SE,SR,SX,TRS197903-198304

main45146-12080iAE70,CE70,KE70..DX,SPD198108-198304

45201PNUT, STEERING WHEEL SET

main90179-12086iAE70,CE70,KE70,TE7#197903-198304

45207RING, HORN CONTACT

main45176-14030iAE70,CE70,KE70,TE7#..SE,SR,SX,TRS197903-198304

main45176-14030iAE70,KE70..HT..XL198108-198304

WHEEL=WOODY

main45176-20030iAE70,CE70,KE70,TE7#..DX,GT,SPD,ST,TRR,XL197903-198304

9331914008

main93319-14008

9331915010

main93319-15010

9351013010

main93510-13010

13 parts on this diagram · 4 diagrams in section
