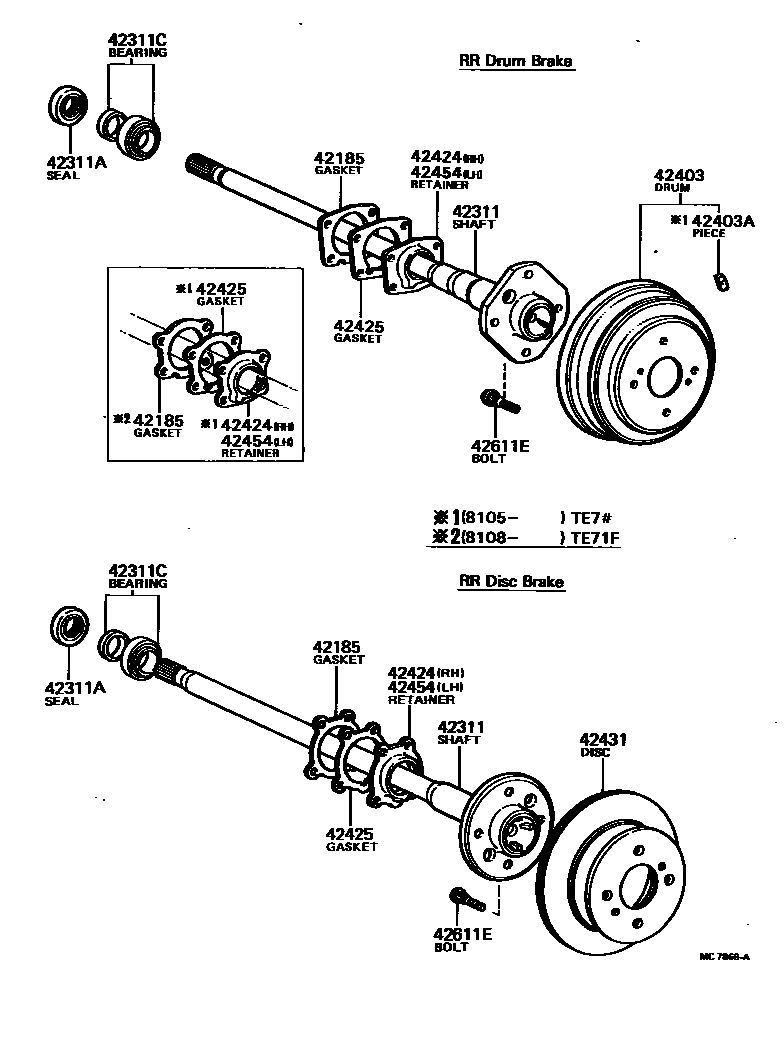

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-12010iKE70197903-198304

RR DRUM BRAKE

sub42185-52030

main42185-12020iTE70197908-198108

RR DRUM BRAKE

main42185-14010iTE7#..GT,SR,TRR,TRS197903-198304

RR DISC BRAKE

main42185-14020iTE71198108-198304

RR DRUM BRAKE

main42185-22010iAE70,CE70197903-198304

RR DRUM BRAKE

42311SHAFT, REAR AXLE

main42311-12070iKE70197903-198304

RR DRUM BRAKE

main42311-12080iAE70,CE70197903-198304

RR DRUM BRAKE

main42311-12100iTE71197908-198304

RR DISC BRAKE,W/LSD

main42311-14090iTE71..GT,TRR197908-198304

RR DRUM BRAKE

main42311-14120iTE7#..GT,SR,TRR197903-198304

RR DISC BRAKE

main42311-15010iTE71198108-198304

RR DRUM BRAKE,W/LSD

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055iAE70,CE70,KE70197903-198304

main90311-52059iTE7#197903-198304

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

sub04421-12011

main04421-14010iTE7#..GT,SR,TRR,TRS197903-198304

RR DISC BRAKE

main04421-30011iTE71197908-198304

RR DRUM BRAKE

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12050iAE70,CE70,KE70,TE70197903-198304

sub42431-12110

main42431-12081iTE71198209-198304

main42431-27020iTE71198108-198209

sub42431-14061

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020iTE71198108-198304

main90937-01021iTE71198108-198304

main90937-01023iTE71198108-198304

main90937-01032iTE71198108-198304

main90937-01033iTE71198108-198304

main90937-01034iTE71198108-198304

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14010iTE7#..GT,SR,TRR,TRS197903-198304

RR DISC BRAKE

main42424-14020iTE70198105-198304

RR DRUM BRAKE

main42424-20010iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

main42424-21010iTE70197908-198105

RR DRUM BRAKE

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14010iTE7#..GT,SR,TRR,TRS197903-198304

RR DISC BRAKE

main42425-14020iTE70198105-198304

RR DRUM BRAKE

main42425-20010iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

sub42425-52030

main42425-22020iTE70197908-198105

RR DRUM BRAKE

42431DISC, REAR

main42431-12070iTE7#..GT,SR,TRR,TRS197903-198304

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-14010iTE7#..GT,SR,TRR,TRS197903-198304

RR DISC BRAKE

main42454-14010iTE70198105-198304

RR DRUM BRAKE

main42454-20010iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

main42454-21010iTE70197908-198105

RR DRUM BRAKE

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iAE70,CE70,KE70,TE7#197903-198304

sub90942-02047

11 parts on this diagram · 1 diagram in section
