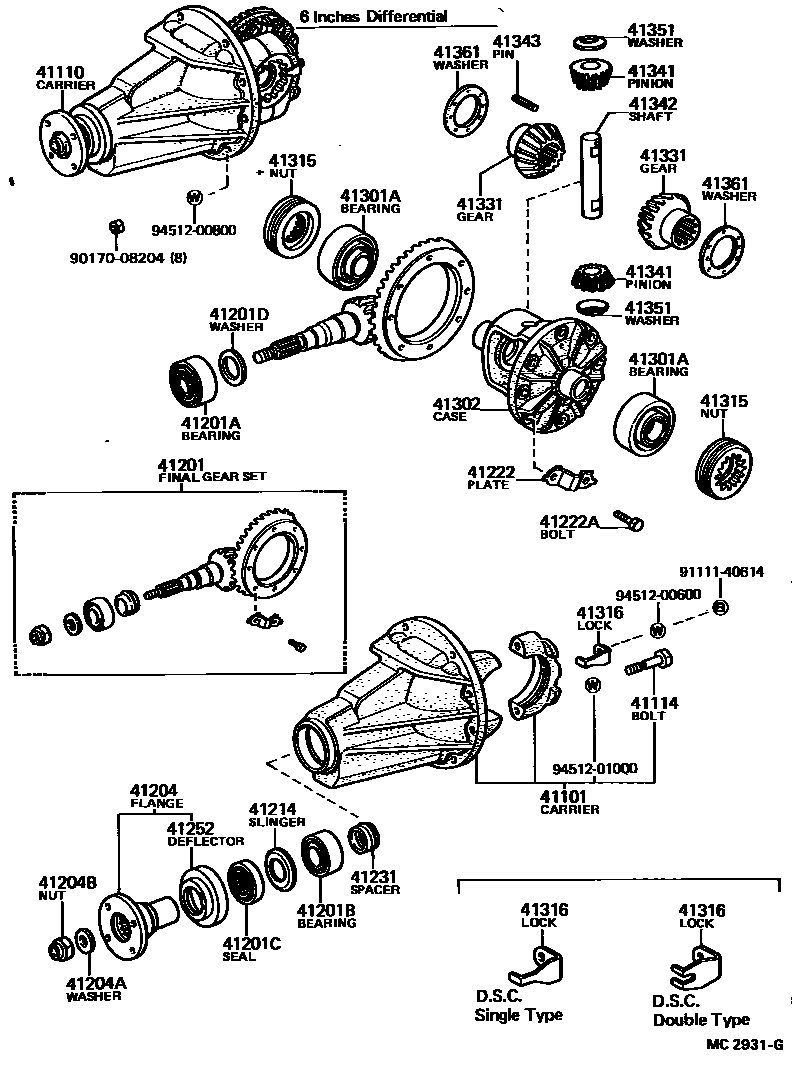

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-12030iKE70197903-198304

main41101-20010iAE70197903-198008

sub41101-20011

main41101-20011iAE70,CE70198008-198304

main41101-20020iTE7#198008-198304

sub41101-20021

sub41204-48020

main41101-22010iTE7#197903-198008

sub41101-20020

sub90116-08236

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-10080iKE70..2FC197903-198108

*AXC=U292

main41110-10100iKE70..3FC197903-198304

*AXC=U312

main41110-12022iTE71197908-198008

*AXC=T283,W/LSD

sub41110-12023

sub90116-08236

main41110-12023iTE71198008-198108

*AXC=T283,W/LSD

main41110-12031iAE70197903-198108

*AXC=S312

main41110-12110iCE70..4FC198202-198304

*AXC=314

main41110-12120iAE70..SE,SR,SX,XL;AE70..(3FC,4F)..DX197903-198304

*AXC=S302

main41110-12130iCE70..5F198202-198304

*AXC=S304

main41110-12140iKE70..4F197903-198304

*AXC=U302

main41110-12150iCE70..5F198202-198304

*AXC=S374

main41110-12180iKE70..5F..DX198108-198304

*AXC=U372

main41110-12190iAE70..5F..DX198108-198304

*AXC=S382

main41110-14032iTE71197908-198008

*AXC=T293,W/LSD

sub41110-14033

sub90116-08236

main41110-14033iTE71198008-198304

*AXC=T293,W/LSD

main41110-20180iTE71197903-198008

*AXC=T292

sub41110-20181

sub90116-08236

main41110-20181iTE71..GT,TRR198008-198304

*AXC=T292

main41110-20190iTE70..4F197908-198008

*AXC=T302

sub41110-20191

sub90116-08236

main41110-20191iTE70..4F198008-198108

*AXC=T302

main41110-20200iTE70197908-198008

*AXC=T312

sub41110-20201

sub90116-08236

main41110-20201iTE70198008-198108

*AXC=T312

main41110-20260iTE71197906-198008

*AXC=T282

sub41110-20261

sub90116-08236

main41110-20261iTE71198008-198108

*AXC=T282

main41110-22013iAE70..5F197906-198108

*AXC=S292

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-10128iAE70,KE70197903-198304

main90101-12371iTE7#197903-198304

sub90105-12114

main90105-10008iAE70,CE70198008-198304

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19186iAE70197903-198008

N=43:11

sub41201-19187

main41201-19187iCE70..4FC198008-198212

N=43:11

sub41201-19188

main41201-19226iKE70..2FC197903-198108

N=41:10

sub41201-19228

main41201-19236iKE70..3FC197903-198212

N=43:11

sub41201-19238

main41201-19238iKE70..3FC198212-198304

sub41201-19575

main41201-19305iKE70..4F197903-198212

N=41:11

sub41201-19306

main41201-19306iKE70..MTM..2D;KE70..4F..DX..4D;KE70..MTM..(SE,SPD,XL)..4D198212-198304

main41201-19346iCE70..5F198202-198212

N=43:12

sub41201-19347

main41201-19347iCE70..5F198212-198304

N=43:12

main41201-19405iAE70..5F..DX198108-198212

N=41:12

sub41201-19406

main41201-19406iAE70..5F..DX198212-198304

N=41:12

main41201-19415iKE70..5F..DX198108-198212

N=43:12

sub41201-19416

main41201-19416iKE70..5F..DX198212-198304

N=43:12

main41201-29196iTE71197903-198212

N=41:10

sub41201-29197

main41201-29197iTE71198212-198304

main41201-29206iTE71197906-198108

N=43:10

sub41201-29207

main41201-29226iTE70..4F197908-198108

N=41:11

sub41201-29227

main41201-29236iTE70197908-198108

N=43:11

sub41201-29237

main41201-29345iAE70..4F197903-198008

N=41:11

sub41201-29346

main41201-29346iAE70..SE,SR,SX,XL;AE70..(3FC,4F)..DX198008-198212

N=41:11

sub41201-29347

main41201-29347iAE70..SE,SR,SX,XL;AE70..(3FC,4F)..DX198212-198304

N=41:11

main41201-29355iAE70..5F197906-198008

N=41:10

sub41201-29356

main41201-29356iAE70..5F198008-198108

sub41201-29357

main42201-19188iCE70..4FC198212-198304

N=43:11

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90368-30069iKE70197903-198304

sub90368-30002

main90368-33021iAE70,CE70197903-198304

main90368-34049iTE7#197903-198304

sub90366-34019

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-25047iKE70197903-198304

main90368-30002iAE70,CE70,TE7#197903-198304

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-35131iKE70197903-198304

main90311-38015iTE7#197903-198304

main90311-38057iAE70,CE70197903-198304

sub90311-38015

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-30234iKE70197903-198304

T=2.33

main90201-30235iKE70197903-198304

T=2.36

main90201-30236iKE70197903-198304

T=2.39

main90201-30237iKE70197903-198304

main90201-30238iKE70197903-198304

main90201-30239iKE70197903-198304

main90201-30240iKE70197903-198304

main90201-30241iKE70197903-198304

main90201-30242iKE70197903-198304

main90201-30539iKE70197903-198304

main90201-30540iKE70197903-198304

main90201-30541iKE70197903-198304

main90201-30542iKE70197903-198304

main90201-30543iKE70197903-198304

main90201-30544iKE70197903-198304

main90201-35396iTE7#197903-198304

main90201-35397iTE7#197903-198304

main90201-35398iTE7#197903-198304

main90201-35399iTE7#197903-198304

main90201-35400iTE7#197903-198304

main90201-35401iTE7#197903-198304

main90201-35402iTE7#197903-198304

main90201-35403iTE7#197903-198304

main90201-35404iTE7#197903-198304

main90201-35435iTE7#197903-198304

sub90201-35516

main90201-35436iTE7#197903-198304

sub90201-35517

main90201-35437iTE7#197903-198304

sub90201-35518

main90201-35438iTE7#197903-198304

main90201-35439iTE7#197903-198304

main90201-35440iTE7#197903-198304

main90209-33038iAE70,CE70197903-198304

main90209-33039iAE70,CE70197903-198304

main90209-33040iAE70,CE70197903-198304

main90209-33041iAE70,CE70197903-198304

main90209-33042iAE70,CE70197903-198304

main90209-33043iAE70,CE70197903-198304

main90209-33044iAE70,CE70197903-198304

main90209-33045iAE70,CE70197903-198304

main90209-33046iAE70,CE70197903-198304

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-12020iKE70197903-198304

main41204-20012iAE70,CE70197903-198304

main41204-20020iTE7#197903-198304

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-16244iKE70197903-198304

main90201-18485iAE70,CE70,TE7#197903-198304

41204BNUT (FOR REAR DRIVE PINION)

main90179-16052iKE70197903-198304

main90179-18001iAE70,CE70,TE7#197903-198304

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-12020iKE70197903-198304

main41214-20020iAE70,CE70,TE7#197903-198304

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12030iKE70197903-198304

main41222-20020iAE70197903-198008

main41222-20021iAE70,CE70198008-198304

main41222-30030iTE7#197903-198304

sub41222-28010

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iTE7#197903-198304

main90101-11365iKE70197903-198304

main90109-10015iAE70,CE70197903-198304

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-12020iKE70197903-198304

main41231-20020iAE70,CE70197903-198304

main41231-22010iTE7#197903-198304

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-20010iAE70,CE70197903-198304

main41252-12020iKE70197903-198304

main41252-22010iTE7#197903-198304

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-34020iAE70,CE70,KE70197903-198304

main90368-41050iTE7#197903-198304

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-22011iAE70197903-198002

sub41301-22H00

main41301-22012iAE70198002-198008

sub41301-22013

sub41222-20021

sub41315-20011

main41301-22013iAE70198008-198304

main41301-22022iCE70198202-198304

main41302-14011iTE71197908-198304

W/LSD

main41311-12030iKE70197903-198304

main41311-22030iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

sub41311-22031

sub41351-12030

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-12020iKE70197903-198304

main41315-20010iAE70197903-198008

sub41315-20011

main41315-20011iAE70,CE70198008-198304

main41315-22011iTE7#197903-198304

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-12010iKE70197903-198304

SINGLE TYPE

main41316-20010iAE70,CE70197903-198304

SINGLE TYPE

main41316-20020iAE70,CE70197903-198304

DOUBLE TYPE

main41316-22011iTE7#197903-198304

SINGLE TYPE

main41317-12010iKE70197903-198304

DOUBLE TYPE

main41317-22011iTE7#197903-198304

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-14010iTE71197908-198304

W/LSD

main41331-20011iKE70197903-198304

main41331-22011iAE70,CE70197903-198304

main41331-22020iTE7#197903-198304

41341PINION, REAR DIFFERENTIAL

main41341-14020iTE71197908-198304

W/LSD

main41341-20011iKE70197903-198304

main41341-22010iAE70197903-198002

main41341-22011iAE70,CE70198002-198304

main41341-22020iTE7#197903-198304

sub41341-12030

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-12010iKE70197903-198304

main41342-20010iAE70,CE70197903-198304

L=94

main41342-20020iCE70198202-198304

L=24

main41342-22010iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main41343-22010iAE70,CE70197903-198304

main90250-04053iKE70197903-198304

main90250-04193iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-12010iKE70197903-198304

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12010iKE70197903-198304

main41361-12020iKE70197903-198304

main41361-12030iKE70197903-198304

main41361-12040iKE70197903-198304

main41361-12050iKE70197903-198304

main41361-12060iKE70197903-198304

main41361-12070iAE70,CE70197903-198304

T=1.50

main41361-12080iAE70,CE70197903-198304

T=1.55

main41361-12090iAE70,CE70197903-198304

T=1.60

main41361-12100iAE70,CE70197903-198304

T=1.65

main41361-12110iAE70,CE70197903-198304

T=1.70

main41361-12120iAE70,CE70197903-198304

T=1.75

main41361-14012iTE71197908-198304

main41361-14022iTE71197908-198304

main41361-14032iTE71197908-198304

main41361-14042iTE71197908-198304

main41361-14060iTE71197908-198304

main41361-14070iTE71197908-198304

main41361-22020iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

main41361-22030iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

main41361-22040iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

main41361-22140iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

main41361-22150iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

main41361-22160iTE7#..GT,SE,SR,ST,TRR,XL197903-198304

9017008204

main90170-08204

9111140614

main91111-40614

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

31 parts on this diagram · 6 diagrams in section
