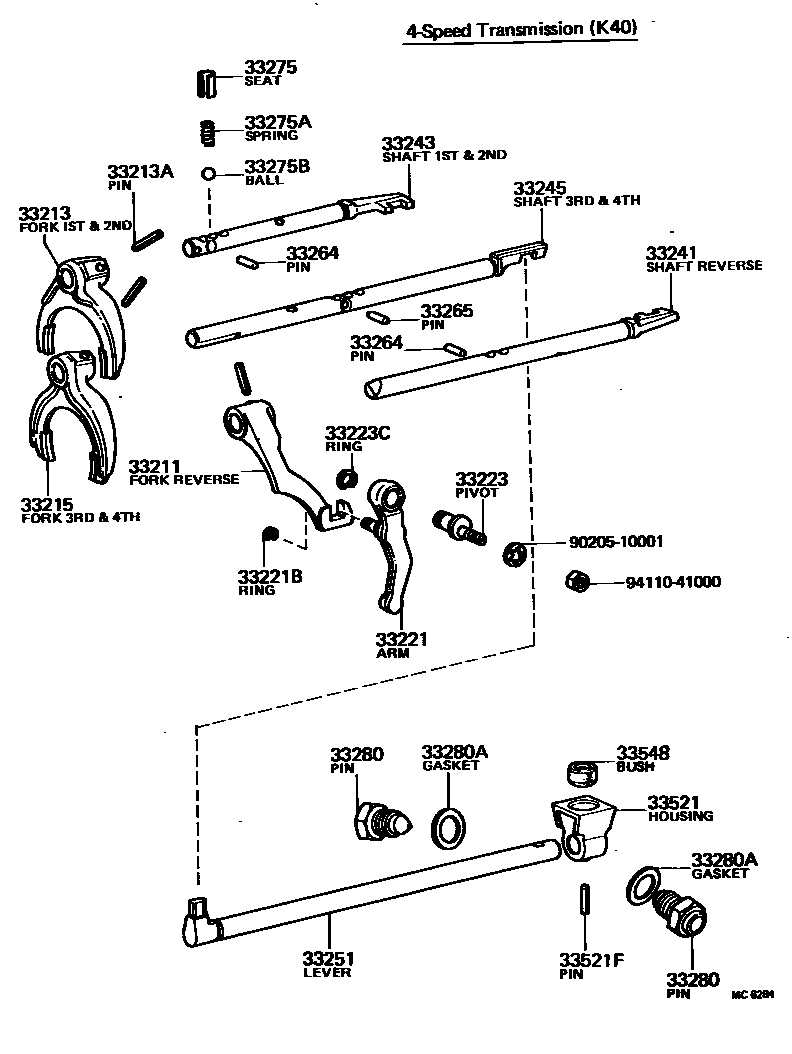

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33223PIVOT, SHIFT ARM
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
RH
LH
RH
33280AGASKET, REVERSE RESTRICT PIN
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
33548BUSH, SHIFT LEVER
9020510001
main90205-10001
9411041000
main94110-41000
24 parts on this diagram · 5 diagrams in section
