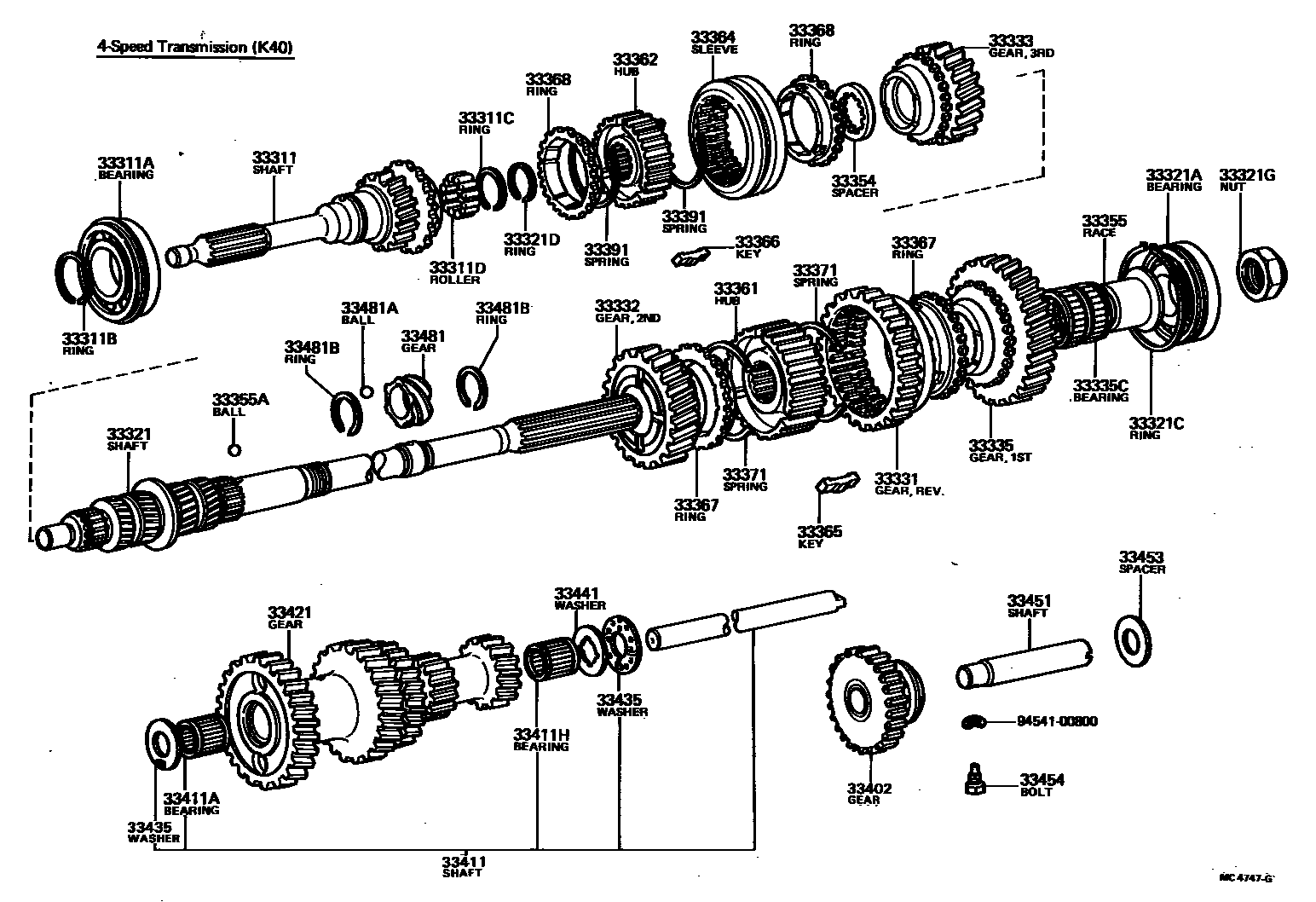

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
T=2.50-2.55
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.00-2.05
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33331GEAR, REVERSE
N=41
N=41
N=34
N=34
N=39
33332GEAR, 2ND
N=31
N=29
N=29
N=29
33333GEAR, 3RD
N=27
N=27
N=25
N=22
N=23
33335GEAR, 1ST
N=35
N=36
N=36
33354SPACER, CLUTCH HUB
T=4.30-4.35
T=4.35-4.40
T=4.40-4.45
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR
1ST GEAR
2ND GEAR
33368RING, SYNCHRONIZER, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
N=32,28,23,16,16
N=32,27,22,16,16
N=32,27,22,16,16
N=33,28,22,14
N=33,28,22,14
N=33,28,22,14
N=33,28,22,14
N=29,26,22,14
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=1.71-1.81,RR
T=1.83-1.93,RR
T=1.95-2.05,RR
T=1.95-2.05,RR
T=1.71-1.81,FR
T=1.71-1.81,FR
T=1.95-2.05
T=2.10-2.20
T=2.25-2.35
T=2.40-2.50
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=1.30-1.35
T=1.40-1.45
T=1.50-1.55
T=1.60-1.65
33451SHAFT, REVERSE IDLER GEAR
33453SPACER, REVERSE IDLER GEAR SHAFT
T=5.0
T=6.0
33454BOLT, SHAFT RETAINING
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,DIFF R=4.300
N=5,DIFF R=4.300
N=6,SMG R=20:6
N=6
N=6,DIFF R=3.909
N=6,DIFF R=3.727
N=6,SMG R=18:6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
9454100800
main94541-00800
41 parts on this diagram · 8 diagrams in section
