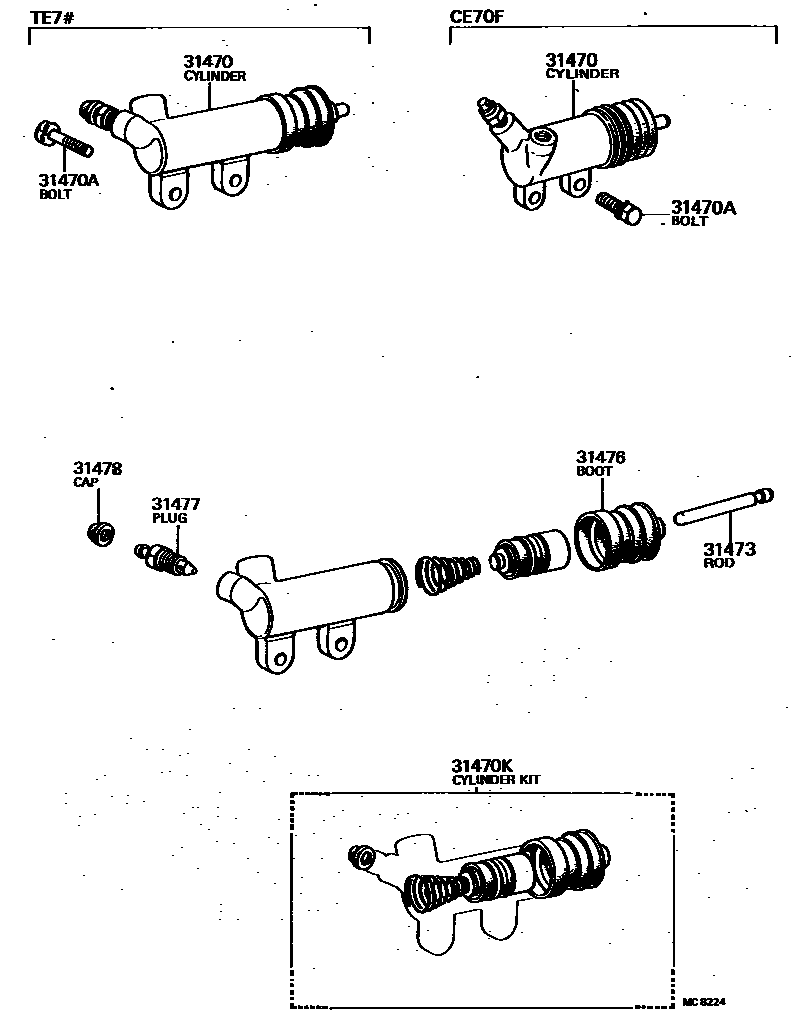

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iTE7#..MTM197903-198008

sub31470-14021

main31470-14040iCE70..5F198202-198304

main31470-20150iTE7#..MTM198008-198012

sub31470-20151

main31470-20151iTE7#..MTM198012-198304

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iCE70,TE7#..MTM197903-198304

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iCE70,TE7#..MTM198012-198304

sub04313-12030

main04313-30100iTE7#..MTM197903-198012

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iTE7#..MTM197903-198008

main31473-20030iTE7#..MTM198008-198012

main31473-20031iCE70,TE7#..MTM198012-198304

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCE70,TE7#..MTM198012-198304

main31476-30040iTE7#..MTM197903-198012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCE70,TE7#..MTM197903-198304

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCE70,TE7#..MTM197903-198304

7 parts on this diagram · 1 diagram in section
