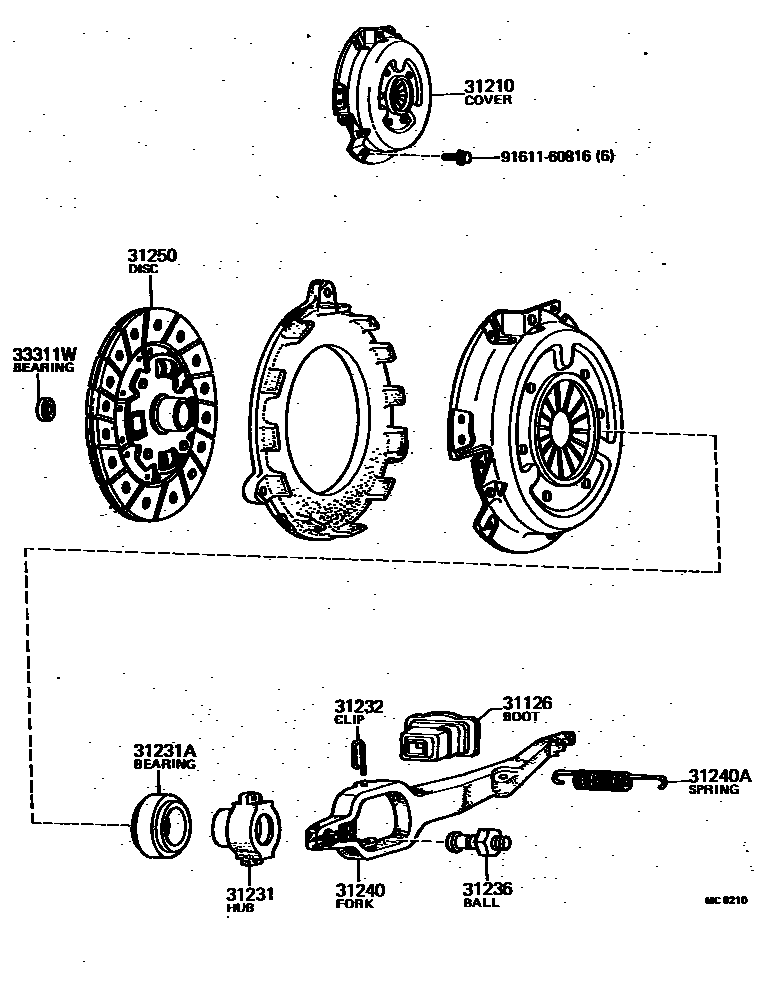

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12020iKE70..4F197903-198304

main31126-12040iAE70..MTM197903-198304

main31126-20070iCE70,TE7#..MTM198008-198304

main31126-22040iTE7#..MTM197903-198008

31210COVER ASSY, CLUTCH

main31210-12050iKE70..MTM197903-197908

sub31210-12051

main31210-12051iKE70..MTM197908-198008

sub31210-12052

main31210-12052iKE70..MTM198008-198304

sub31210-12053

main31210-12060iAE70197903-197908

sub31210-12061

main31210-12061iAE70197908-197909

sub31210-12062

main31210-12062iAE70..MTM197909-198304

sub31210-12063

main31210-14032iTE71197903-197907

sub31210-14033

main31210-14033iTE71197907-197908

sub31210-14100

main31210-14100iTE71197908-198304

sub31210-14101

main31210-23011iTE70..MTM197908-198108

sub31210-23012

main31210-35042iCE70..5F198202-198304

sub31210-22120

31231HUB, CLUTCH RELEASE BEARING

main31231-12031iAE70,KE70..MTM197903-197904

sub31231-12032

main31231-12032iAE70,KE70..MTM197904-198010

main31231-12033iAE70,KE70..MTM198010-198304

main31231-14030iTE71197903-197904

sub31231-14031

main31231-14031iTE7#..MTM197904-198007

sub31231-14032

main31231-14032iTE7#..MTM198007-198008

main31231-20081iTE7#..MTM198008-198304

main31231-36070iCE70..5F198202-198304

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33002iAE70,KE70..MTM197903-198204

sub90363-33004

main90363-33004iAE70,KE70..MTM198204-198304

main90363-40001iTE7#..MTM197903-198002

sub90363-40008

main90363-40008iTE7#..MTM198002-198007

main90363-40015iTE7#..MTM198007-198012

sub90363-40022

main90363-40022iCE70,TE7#..MTM198012-198304

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010iAE70,KE70..MTM197903-198304

main31232-22010iCE70,TE7#..MTM197903-198304

31236BALL, RELEASE FORK

main31236-20020iTE7#..MTM197903-198108

main31236-30030iAE70,KE70..MTM197903-198304

main31236-30060iCE70,TE71..5F198108-198304

31240FORK ASSY, CLUTCH RELEASE

main31204-10040iKE70..5F197903-198010

main31204-12010iKE70..4F197903-198010

main31204-12011iKE70..4F198010-198304

main31204-12030iAE70..MTM197903-198010

main31204-12031iKE70..5F198010-198304

main31204-20080iTE7#..MTM198008-198304

main31204-20090iCE70..5F198202-198304

main31204-22030iTE7#..MTM197903-198008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iAE70,KE70..MTM197903-198304

31250DISC ASSY, CLUTCH

main31250-12021iKE70..MTM197903-198012

sub31250-12070

main31250-12051iAE70..MTM197903-198002

sub31250-12052

main31250-12052iAE70..MTM198002-198304

sub31250-12053

main31250-12061iTE71198001-198208

sub31250-12062

main31250-12062iTE71198208-198304

sub31250-16040

main31250-12070iKE70..MTM198012-198304

sub31250-12071

main31250-12080iTE70..MTM198001-198108

sub31250-12081

main31250-14090iTE71197903-198001

sub31250-14091

main31250-14100iTE70..MTM197908-197910

sub31250-14101

main31250-14101iTE70..MTM197910-198001

sub31250-12080

main31250-20110iCE70..5F198202-198203

sub31250-20111

main31250-20111iCE70..5F198203-198304

sub31250-20112

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAE70,KE70,TE7#..MTM198010-198304

main90363-12004iCE70..5F198202-198304

main97123-06001iAE70,KE70,TE7#..MTM197903-198010

9161160816

main91611-60816

11 parts on this diagram · 4 diagrams in section
