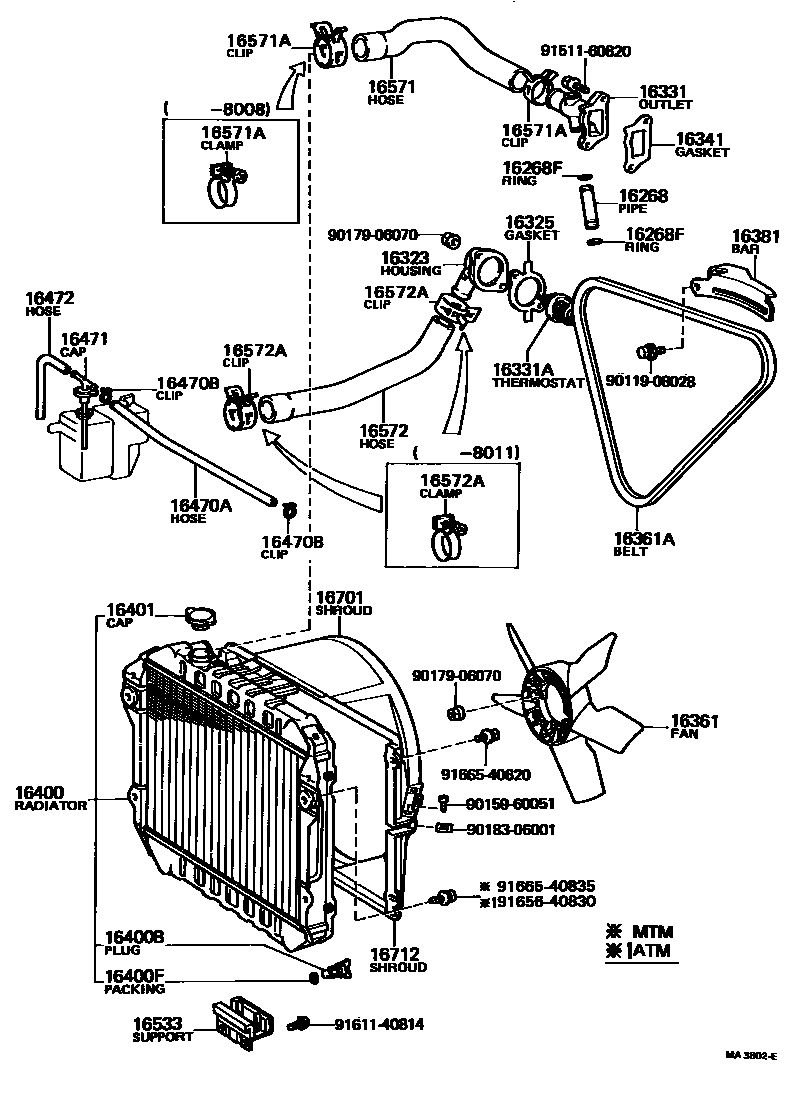

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i3AU..AE70197903-198304

sub16268-15011

main16268-64010i1C..CE70198204-198304

sub16268-64020

main87208-20150i1C..CE70198202-198204

sub16268-64010

16268FRING, O(FOR WATER BY-PASS PIPE)

main96710-02013i3AU..AE70197903-198112

sub96711-24013

main96711-24013i3AU..AE70198112-198304

16323HOUSING, WATER INLET

main16323-15010i3AU..AE70197903-198108

main16323-15020i3AU..AE70198108-198304

16325GASKET, WATER INLET HOUSING, NO.1

main16325-15010i3AU..AE70197903-198107

sub16325-70020

main16325-63010i1C..CE70198202-198304

sub16325-63011

main16325-70020i3AU..AE70198107-198112

sub16325-70021

main16325-70021i3AU..AE70198112-198304

16331OUTLET, WATER

main16331-13010i4KU..KE70197903-198108

sub16331-13011

main16331-13011i4KU..KE70..MTM198108-198304

main16331-15010i3AU..AE70197903-198303

main16331-15030i3AU..AE70197903-198108

COLD SPEC

main16331-15050i3AU..AE70198303-198304

main16331-22031i4KU..KE70..3FC198108-198304

main16331-26050i2TGEU..TE71197903-198304

main16331-26060i13TU..TE70197908-198108

main16331-64010i1C..CE70198202-198304

16331ATHERMOSTAT

main90916-03034i4KU..KE70..2D;4KU..KE70..(SE,SPD,XL)..4D;4KU..KE70..(2FC,3FC,4F)..DX..4D197903-198211

*WAX 82-95,*(F)

main90916-03036i13TU,2TGEU..TE7#197903-198304

*WAX 88-100,*(F)

sub90916-03040

main90916-03036i4KU..KE70..2D;4KU..KE70..(SE,SPD,XL)..4D;4KU..KE70..(2FC,3FC,4F)..DX..4D197903-198211

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i4KU..KE70..2D;4KU..KE70..(SE,SPD,XL)..4D;4KU..KE70..(2FC,3FC,4F)..DX..4D197903-198211

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i4KU..KE70..5F..DX197908-198211

*WAX 88-100,KUZEH

sub90916-03078

main90916-03040i4KU..KE70..2D;4KU..KE70..(SE,SPD,XL)..4D;4KU..KE70..(3FC,4F)..DX..4D198108-198211

COLD SPEC,*WAX 88-100,KUZEH

sub90916-03078

main90916-03046i3AU..AE70197903-198304

main90916-03054i4KU..KE70..2D;4KU..KE70..(SE,SPD,XL)..4D;4KU..KE70..(3FC,4F)..DX..4D198211-198304

sub90916-03083

main90916-03055i4KU..KE70..5F..DX198211-198304

sub90916-03078

main90916-03055i4KU..KE70..5F..DX198211-198304

sub90916-03078

16341GASKET, WATER OUTLET

main16341-13011i4KU..KE70197903-198304

sub16341-13040

main16341-15010i3AU..AE70197903-198112

sub16341-15011

main16341-15011i3AU..AE70198112-198304

sub16341-15012

main16341-38010i13TU..TE70197908-198108

main16341-64010i1C..CE70198202-198304

sub16341-64020

main16341-88260i2TGEU..TE71197903-198208

sub16341-88280

main16341-88280i2TGEU..TE71198208-198304

sub16341-88281

16361FAN

main16361-13030i4KU..KE70..2FC197903-198108

4 BLADES,OD=270

main16361-13050i4KU..KE70..MTM198008-198304

4 BLADES,OD=300

main16361-13060i4KU..KE70..3FC198108-198304

main16361-15010i4KU..KE70..MTM197903-198008

4 BLADES,OD=250

main16361-15020i3AU..AE70198108-198304

main16361-18010i13TU..TE70..SE,ST,XL197908-198108

W/POWER STEERING

sub16361-16010

main16361-26040i13TU,2TGEU..TE7#197903-198304

main16361-26050i13TU,2TGEU..TE7#197903-198304

W/COOLER

main16361-38010i1C..CE70198202-198304

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02123i1C..CE70198206-198304

main99321-00850i2TGEU..TE71197903-198304

main99321-00870i4KU..KE70197903-198304

L=870

main99321-00885i4KU..KE70198108-198212

L=885

main99321-00885i13TU..TE70197908-198108

main99321-01000i3AU..AE70197903-198304

W/COOLER,L=100

sub99321-51000

main99321-50975i3AU..AE70198205-198304

L=975

main99321-50985i3AU..AE70197903-198205

L=985

main99332-60975i1C..CE70198202-198206

sub90916-02123

16381BAR, FAN BELT ADJUSTING

main16381-15011i3AU..AE70197903-198203

sub16381-15030

main16381-15030i3AU..AE70198203-198304

main16381-24011i4KU..KE70197903-198304

main16381-25010i13TU,2TGEU..TE7#197903-198304

main16381-64011i1C..CE70198202-198304

16400RADIATOR ASSY

main16400-13080i4KU..KE70..MTM197903-198001

sub16400-13081

main16400-13081i4KU..KE70..MTM198001-198007

sub16400-13082

main16400-13082i4KU..KE70..MTM198007-198304

main16400-13090i4KU..KE70..2FC197903-198001

sub16400-13091

main16400-13091i4KU..KE70..2FC198001-198002

sub16400-13092

sub32941-12031

main16400-13092i4KU..KE70..2FC198002-198108

main16400-13190i4KU..KE70..3FC198108-198304

main16400-15020i3AU..AE70..MTM197903-198108

sub16400-15100

main16400-15030i3AU..AE70..3FC197910-198304

main16400-15100i3AU..AE70..MTM198108-198304

sub16400-15170

main16400-26200i13TU,2TGEU..TE7#..MTM197903-198304

sub16400-26360

main16400-26210i13TU..TE70..MTM..(SE,ST,XL)197908-198108

W/POWER STEERING

main16400-26220i13TU..TE70..3FC197908-198108

sub16400-26360

main16400-26230i13TU..TE70..3FC197908-198108

W/POWER STEERING

main16400-26320i13TU..TE70..LB197912-198108

ALMINIUM

sub16400-26230

main16400-64010i1C..CE70..5F198202-198304

main16400-64021i1C..CE70..4FC198202-198304

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i13TU,2TGEU..TE7#197903-198304

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i3AU..AE70197903-198110

sub96711-19007

main96711-19007i1C..CE70198110-198304

16401CAP SUB-ASSY, RADIATOR

main16401-36011i13TU,2TGEU..TE7#197903-198304

16470TANK ASSY, RADIATOR RESERVE

main16470-26050i2TGEU..TE71197903-198108

W/OK MONITOR

main16470-26060i2TGEU..TE71197903-198304

main16470-26090i1C..CE70198202-198304

COLD SPEC

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12015i2TGEU..TE71197903-198304

main90445-12021i1C..CE70198202-198304

sub90099-33534

main90445-12073i4KU..KE70197903-198304

sub90099-33370

main90445-12351i4KU..KE70..3FC198108-198304

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4KU..KE70197903-198304

16471CAP SUB-ASSY, RESERVE TANK

main16471-34030i2TGEU..TE71197903-198304

main85339-12010i3AU..AE70197903-198304

16472HOSE, BREATHER

main85338-16010i3AU..AE70197903-198304

sub85338-12010

16533SUPPORT, RADIATOR, UPPER

main16533-26010i13TU,2TGEU..TE7#197903-198304

main16533-26030i1C..CE70198202-198304

main16533-26030i13TU..TE70..SE,ST,XL197908-198108

W/POWER STEERING

16571HOSE, RADIATOR, INLET

main16571-15020i3AU..AE70197903-198304

main16571-26080i13TU..TE70..SE,ST,XL197908-198108

W/POWER STEERING

main16571-64020i1C..CE70198202-198304

main16572-13020i4KU..KE70197903-198304

main16572-13080i4KU..KE70..3FC198108-198304

main16572-26020i2TGEU..TE71197903-198304

main90916-01166i13TU..TE70197908-198108

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i3AU..AE70197903-198304

WATER OUTLET SIDE

sub90467-33003

main90467-37001i4KU..KE70197903-198108

WATER OUTLET SIDE

sub90467-37003

main90467-37001i4KU..KE70198005-198011

sub90467-37003

main90467-37001i2TGEU..TE71198108-198304

RADIATOR SIDE

sub90467-37003

main96111-10420i3AU..AE70197903-198008

RADIATOR SIDE

main96111-10430i4KU..KE70197903-198108

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-13040i4KU..KE70197903-198304

main16571-13070i4KU..KE70..3FC198108-198304

main16571-26060i13TU,2TGEU..TE7#197903-198304

main16572-15020i3AU..AE70197903-198108

main16572-15080i3AU..AE70198108-198304

main16572-15090i3AU..AE70..SE,SR,SX,XL;3AU..AE70..(3FC,4F)..DX198108-198304

W/POWER STEERING

main16572-26040i13TU..TE70..SE,ST,XL197908-198108

W/POWER STEERING

main16572-64020i1C..CE70198202-198304

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i13TU,2TGEU..TE7#197903-198304

RADIATOR SIDE

main90467-34001i3AU..AE70198011-198108

sub90467-33003

main90467-37001i1C..CE70198202-198304

sub90467-37003

main96111-10400i3AU..AE70197903-198011

WATER INLET SIDE

main96111-10400i3AU..AE70198108-198304

main96111-10420i3AU..AE70197903-198011

RADIATOR SIDE

main96111-10500i13TU,2TGEU..TE7#197903-198304

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-12030i4KU..KE70..3FC198108-198304

W/COOLER

main16711-12040i3AU..AE70198108-198304

W/COOLER

main16711-13050i4KU..KE70..MTM197903-198007

main16711-13060i4KU..KE70..2FC197903-198108

main16711-13130i4KU..KE70..MTM198007-198108

sub16711-13131

main16711-13131i4KU..KE70..MTM198108-198304

main16711-15020i3AU..AE70197903-198108

W/COOLER

main16711-27030i2TGEU..TE71197903-197908

W/COOLER

sub16711-27031

main16711-27031i13TU,2TGEU..TE7#197908-198304

W/COOLER

main16711-28060i13TU..TE70..SE,ST,XL197908-198108

W/COOLER & POWER STEERING

main16711-64020i1C..CE70198202-198304

16712SHROUD, FAN, NO.2

main16712-12010i4KU..KE70..3FC198108-198304

W/COOLER

main16712-12020i3AU..AE70198108-198304

W/COOLER

main16712-15010i3AU..AE70197903-198108

W/COOLER

main16712-27030i2TGEU..TE71197903-197908

W/COOLER

sub16712-27031

main16712-27031i13TU,2TGEU..TE7#197908-198304

W/COOLER

main16712-28040i13TU..TE70..SE,ST,XL197908-198108

W/COOLER & POWER STEERING

main16712-64010i1C..CE70198202-198304

9011908028

main90119-08028

9015960051

main90159-60051

9017906070

main90179-06070

9018306001

main90183-06001

9151160820

main91511-60820

9161140814

main91611-40814

9165640830

main91656-40830

9166540620

main91665-40620

9166540835

main91665-40835

35 parts on this diagram · 10 diagrams in section
