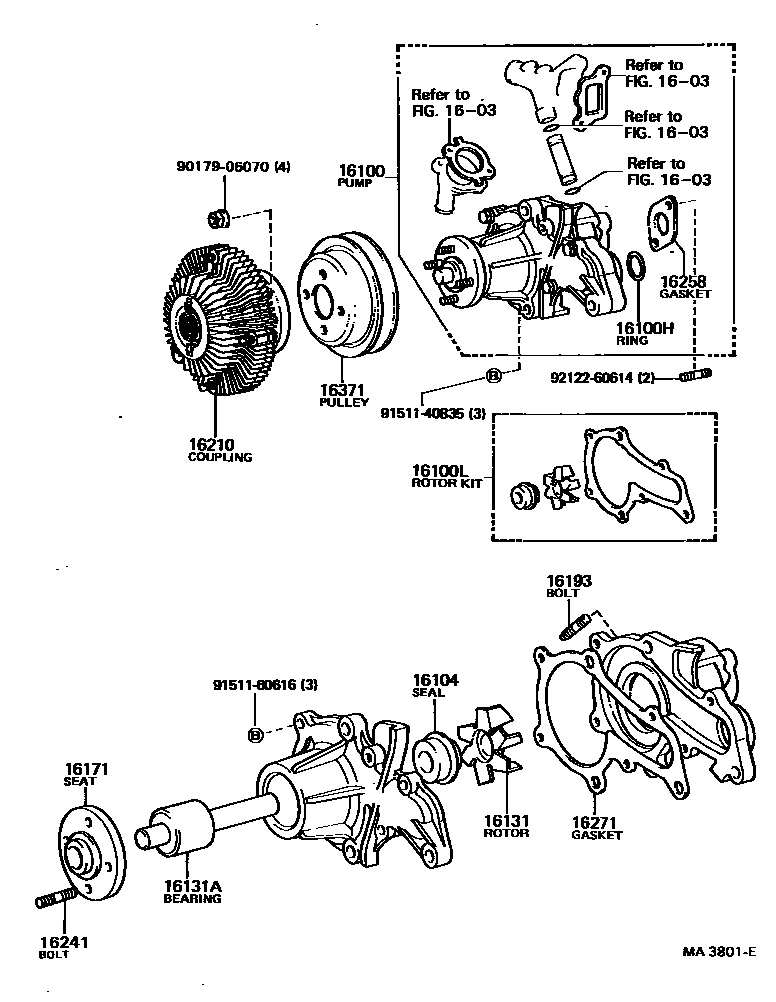

WATER PUMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-19015i4KU..KE70..MTM197903-198304

sub16100-19016

main16100-19016i4KU..KE70..MTM198304-198304

main16100-19035i3AU..AE70197903-198112

sub16100-19036

main16100-19036i3AU..AE70198112-198304

main16100-19075i4KU..KE70..3FC198108-198304

sub16100-19076

main16100-19076i4KU..KE70..3FC198304-198304

sub16100-19077

main16100-28020i13TU..TE70197908-198108

main16100-69085i1C..CE70198202-198304

sub16100-69275

main16100-88260i2TGEU..TE71197903-198304

16100HRING, O(FOR WATER PUMP)

main96710-02035i3AU..AE70197903-198112

sub96711-24035

main96711-24035i3AU..AE70198112-198304

sub96761-24035

16100LROTOR KIT, WATER PUMP

main04162-13010i4KU..KE70197903-197910

sub04162-13011

main04162-13011i4KU..KE70197910-198106

sub04162-13012

main04162-13012i4KU..KE70198106-198304

sub04162-13013

main04162-15010i3AU..AE70197903-198304

sub04162-15011

main04162-28010i13TU,2TGEU..TE7#197908-198108

sub04162-28011

main04162-28020i2TGEU..TE71198108-198201

sub04162-28021

main04162-28021i2TGEU..TE71198201-198304

16104SEAL SET, WATER PUMP

main16104-41110i13TU..TE70197903-198108

sub16104-41111

main16104-41111i4KU..KE70197903-198304

main16104-41112i4KU..KE70198304-198304

sub16104-15020

16131ROTOR, WATER PUMP

main16131-13010i4KU..KE70197903-198304

sub16131-13011

main16131-15010i3AU..AE70197903-198304

main16131-26010i13TU,2TGEU..TE7#197903-198304

16131ABEARING, WATER PUMP

main16140-38011i13TU,2TGEU..TE7#197903-198304

sub90369-30066

main90369-30014i3AU..AE70197903-198304

WPB16114RRS

sub90029-36835

main90369-30028i4KU..KE70..3FC198108-198304

main90369-30063i4KU..KE70197903-198304

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-15020i3AU..AE70198108-198304

main16171-24031i4KU..KE70197903-198304

main16171-26021i13TU,2TGEU..TE7#197903-198304

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010i3AU..AE70197903-198304

16210COUPLING ASSY, FLUID

main16210-13020i4KU..KE70..3FC198108-198304

main16210-15010i3AU..AE70198108-198304

main16210-28020i3AU..AE70197903-198304

main16210-64010i1C..CE70198202-198304

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i4KU..KE70..3FC198108-198304

main16241-15020i3AU..AE70198001-198304

main16241-28020i3AU..AE70197903-198304

main90116-06008i13TU..TE70197903-198108

sub16241-28020

16258GASKET(FOR HEATER RETURN)

main16258-15010i3AU..AE70197903-198112

sub16258-15011

main16258-15011i3AU..AE70198112-198304

16271GASKET, WATER PUMP

main16124-15010i3AU..AE70197903-198304

sub16124-16020

main16129-25010i2TGEU..TE71197903-197911

sub16129-25011

main16129-25011i13TU..TE70197908-198201

sub16129-25012

main16129-25012i2TGEU..TE71198201-198304

sub16129-25013

main16271-13020i4KU..KE70197903-198106

sub16271-13021

main16271-13021i4KU..KE70198106-198304

sub16271-13030

main16271-64010i1C..CE70198202-198304

sub16271-64020

16371PULLEY, FAN

main16173-26021i3AU..AE70197903-198304

main16173-28010i13TU..TE70197908-198108

main16371-13030i4KU..KE70..3FC198108-198304

main16371-15020i3AU..AE70197903-198205

main16371-24050i4KU..KE70..MTM197903-198304

main16371-64011i1C..CE70198202-198304

9017906070

main90179-06070

9151140835

main91511-40835

9151160616

main91511-60616

9212260614

main92122-60614

18 parts on this diagram · 6 diagrams in section
