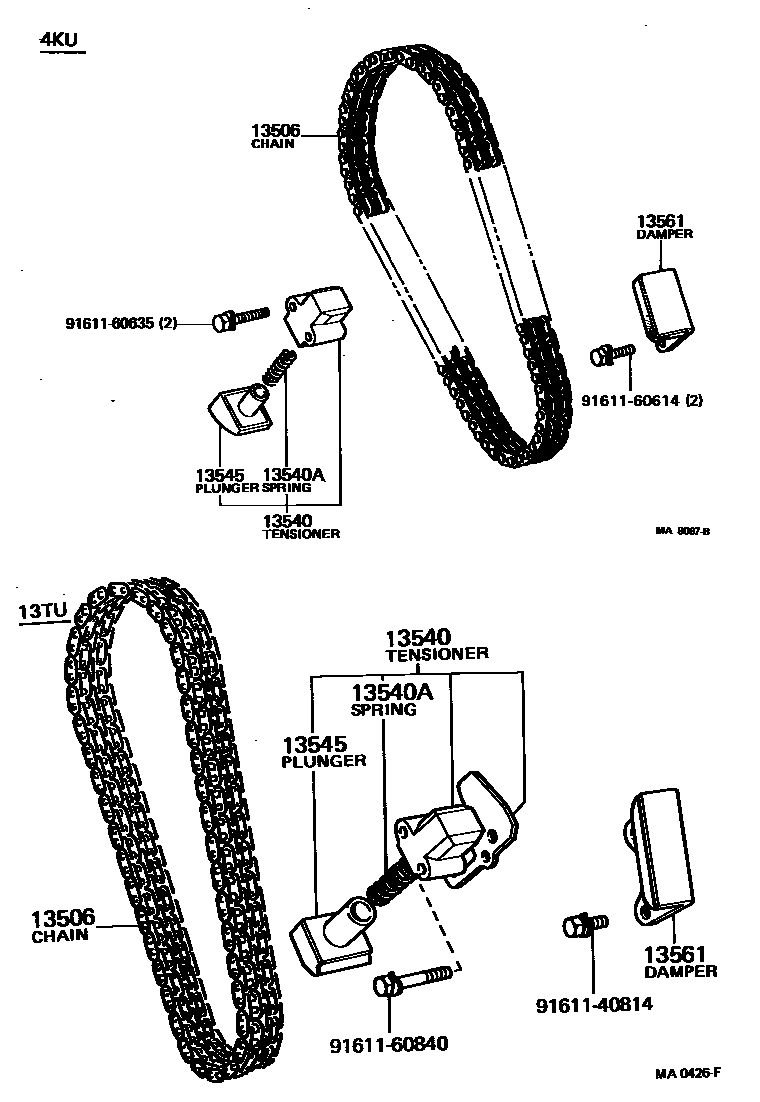

TIMING CHAIN

0001 1 0003 1

13506CHAIN SUB-ASSY

main13506-13020i4KU..KE70198108-198304

sub13506-13021

main13506-22010i4KU..KE70197903-198108

main13506-25010i13TU,2TGEU..TE7#197903-198304

sub13506-73010

13540TENSIONER ASSY, CHAIN, NO.1

main13540-13010i4KU..KE70198108-198304

sub13540-13011

main13540-22012i4KU..KE70197903-198108

main13540-25010i13TU..TE70197908-198108

main13540-88221i2TGEU..TE71197903-198304

13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)

main90072-50129i2TGEU..TE71197903-198304

main90501-09593i4KU..KE70198108-198304

main90501-10595i4KU..KE70197903-198108

13545PLUNGER, CHAIN TENSIONER

main13545-13010i4KU..KE70198108-198304

main13545-22010i4KU..KE70197903-198108

main13545-25010i13TU,2TGEU..TE7#197903-198304

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-13020i4KU..KE70198108-198304

sub13561-13030

main13561-22010i4KU..KE70197903-198108

main13561-25010i13TU,2TGEU..TE7#197903-198304

9161140814

main91611-40814

9161160614

main91611-60614

9161160635

main91611-60635

9161160840

main91611-60840

9 parts on this diagram · 2 diagrams in section
