CRANKSHAFT & PISTON

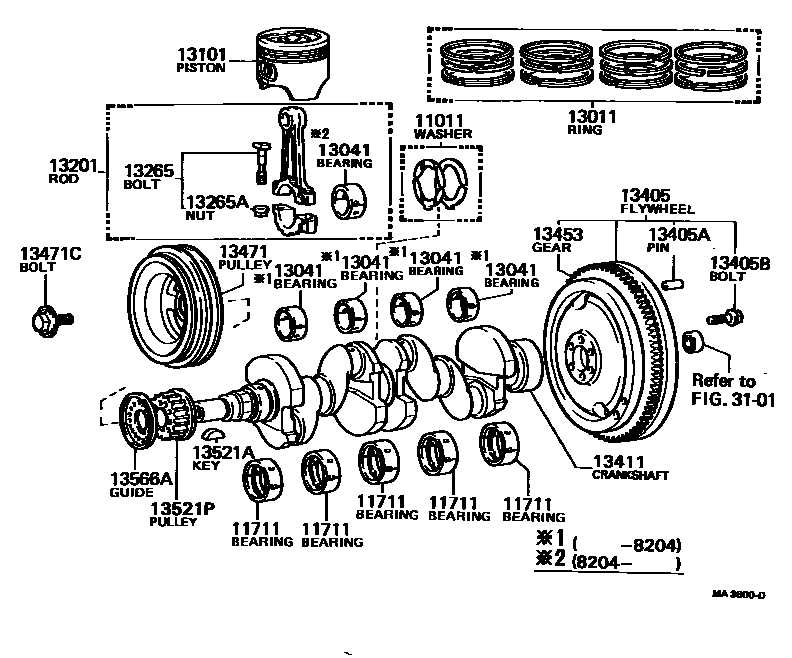

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-15010i197903-198304
sub11011-15020
main11011-22010i197903-197908
STD
sub11011-22011
main11011-22011i197908-198304
main11011-25010i197903-198304
main11011-64010i198202-198304
main11012-22010i197903-197908
O/S 0.125
sub11012-22011
main11012-22011i197908-198304
main11012-25010i197903-198304
O/S 0.125
main11012-64010i198202-198304
main11013-22010i197903-197908
O/S 0.250
sub11013-22011
main11013-22011i197908-198304
main11013-25010i197903-198304
O/S 0.250
main11013-64010i198202-198304
11711BEARING, CRANKSHAFT
main11701-13010-03i198208-198304
STD,MARK"3",MARK 3
main11701-13010-04i198208-198304
STD,MARK"4",MARK 4
main11701-13010-05i198208-198304
STD,MARK"5",MARK 5
main11701-13010-06i198208-198304
STD,MARK"6",MARK 6
main11701-13010-07i198208-198304
STD,MARK"7",MARK 7
main11701-15010-01i197903-198001
MARK"1",MARK 1
sub11701-15011
main11701-15010-02i197903-198001
MARK"2",MARK 2
sub11701-15011
main11701-15010-03i197903-198001
MARK"3",MARK 3
sub11701-15011
main11701-15011-01i198001-198301
MARK"1",MARK 1
main11701-15011-02i198001-198301
MARK"2",MARK 2
main11701-15011-03i198001-198301
MARK"3",MARK 3
main11701-15030-01i198301-198304
MARK"1",MARK 1
sub11701-16010
main11701-15030-02i198301-198304
MARK"2",MARK 2
sub11701-16010
main11701-15030-03i198301-198304
MARK"3",MARK 3
sub11701-16010
main11701-64010-01i198202-198304
STD,MARK"1",MARK 1
sub11701-64030
main11701-64010-02i198202-198304
STD,MARK"2",MARK 2
sub11701-64030
main11701-64010-03i198202-198304
STD,MARK"3",MARK 3
sub11701-64030
13011RING SET, PISTON
main13011-13010i198108-198304
STD
main13011-15010i197903-198304
STD
sub13011-15011
main13011-24011i197903-198005
STD
sub13011-24012
main13011-24012i198005-198108
sub13011-13030
main13011-28030i197908-198108
STD
sub13011-28031
main13011-64020i198202-198304
STD
main13011-88262i197903-198304
STD
main13013-13010i198108-198304
O/S 0.50
main13013-15010i197903-198304
main13013-24011i197903-198005
O/S 0.50
sub13013-24012
main13013-24012i198005-198108
O/S 0.50
sub13013-13030
main13013-28030i197908-198108
O/S 0.50
sub13013-28031
main13013-64020i198202-198304
O/S 0.50
main13013-88262i197903-198304
O/S 0.50
main13014-13010i198108-198304
O/S 0.75
main13014-15010i197903-198304
main13014-24011i197903-198005
O/S 0.75
sub13014-24012
main13014-24012i198005-198108
O/S 0.75
sub13014-13030
main13014-28030i197908-198108
O/S 0.75
sub13014-28031
main13014-88262i197903-198304
O/S 0.75
main13015-13010i198108-198304
O/S 1.00
main13015-15010i197903-198304
main13015-24011i197903-198005
O/S 1.00
sub13015-24012
main13015-24012i198005-198108
O/S 1.00
sub13015-13030
main13015-28030i197908-198108
O/S 1.00
sub13015-28031
main13015-88262i197903-198304
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-15010-01i197903-198008
MARK"1",MARK 1
sub13041-15011
main13041-15010-02i197903-198008
MARK"2",MARK 2
sub13041-15011
main13041-15010-03i197903-198008
MARK"3",MARK 3
sub13041-15011
main13041-15011-01i198008-198304
MARK"1",MARK 1
main13041-15011-02i198008-198304
MARK"2",MARK 2
main13041-15011-03i198008-198304
MARK"3",MARK 3
main13041-64010-01i198202-198304
STD,MARK"1",MARK 1
sub13041-64030
main13041-64010-02i198202-198304
STD,MARK"2",MARK 2
sub13041-64030
main13041-64010-03i198202-198304
STD,MARK"3",MARK 3
sub13041-64030
main13041-88281-03i198209-198304
MARK"3",MARK 3
main13041-88281-04i198209-198304
MARK"4",MARK 4
main13041-88281-05i198209-198304
MARK"5",MARK 5
main13041-88281-06i198209-198304
MARK"6",MARK 6
main13041-88281-07i198209-198304
MARK"7",MARK 7
13101PISTON SUB-ASSY, W/PIN
main13101-13020i198108-198206
STD
sub13101-13021
main13101-13021i198206-198207
STD
sub13101-13022
main13101-13022i198207-198304
STD
main13101-15020i197903-198304
main13101-18010i197908-198108
STD
main13101-24011i197903-198108
main13101-64010i198202-198304
STD
main13101-88261i197903-198108
STD
main13101-88262i198108-198304
STD
main13103-13020i198108-198206
O/S 0.50
sub13103-13021
main13103-13021i198206-198207
O/S 0.50
sub13103-13022
main13103-13022i198207-198304
O/S 0.50
main13103-15020i197903-198304
main13103-18010i197908-198108
O/S 0.50
main13103-24010i197903-198108
main13103-64010i198202-198304
O/S 0.50
main13103-88261i197903-198108
O/S 0.50
main13103-88262i198108-198304
O/S 0.50
main13104-13020i198108-198206
O/S 0.75
sub13104-13021
main13104-13021i198206-198207
O/S 0.75
sub13104-13022
main13104-13022i198207-198304
O/S 0.75
main13104-15020i197903-198304
main13104-18010i197908-198108
O/S 0.75
main13104-24010i197903-198108
main13104-88261i197903-198108
O/S 0.75
main13104-88262i198108-198304
O/S 0.75
main13105-13020i198108-198206
O/S 1.00
sub13105-13021
main13105-13021i198206-198207
O/S 1.00
sub13105-13022
main13105-13022i198207-198304
O/S 1.00
main13105-15020i197903-198304
main13105-18010i197908-198108
O/S 1.00
main13105-24010i197903-198108
main13105-88261i197903-198108
O/S 1.00
main13105-88262i198108-198304
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
main13201-13010i197903-198304
main13201-15010i197903-198204
sub13201-19015
main13201-19015i198204-198304
sub13201-19055
main13201-25010i197903-198209
main13201-64010i198202-198204
sub13201-69025
main13201-69025i198204-198304
sub13201-69026
main13201-71011i198209-198304
13265BOLT, CONNECTING ROD
main13265-19015i197903-198304
main13265-29015i197903-198304
sub13265-70010
sub90170-09001
main13265-29025i197903-198304
main13265-49015i198202-198304
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198005-198304
main90170-09195i197903-198303
main90179-08014i197903-198304
main90179-10042i198202-198304
13405FLYWHEEL SUB-ASSY
main13405-19035i197903-198108
N=106
sub13405-19045
main13405-19065i197903-198304
N=106
main13405-19085i198108-198304
main13405-29067i197903-198304
N=115
main13405-69046i198202-198210
sub13405-69047
main13405-69047i198210-198304
sub13405-64011
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i197903-198304
main90250-08120i197903-198304
13405BBOLT, FLYWHEEL SETTING
main90105-10042i197903-198304
main90105-10045i198202-198304
main90913-01005i197903-198304
13411CRANKSHAFT
main13411-13010i197903-198304
sub13411-13900
main13411-15010i197903-198108
sub13411-15021
main13411-15011i198108-198208
sub13411-15010
main13411-15021i198208-198301
sub13411-15030
main13411-15030i198301-198304
sub13411-15040
main13411-26900i197903-197904
sub13411-27904
main13411-27904i197904-198304
sub13411-27901
main13411-28010i197908-198108
sub13041-88281
main13411-64010i198202-198304
sub13411-64011
13453GEAR, FLYWHEEL RING
main13453-10010i197903-198304
N=106
main13453-20010i197903-198304
N=115
main13453-64010i198202-198210
main13453-64011i198210-198304
13471PULLEY, CRANKSHAFT
main13407-13010i198108-198304
sub13470-13010
main13407-15010i197908-198108
main13407-15011i198108-198110
sub13407-15012
main13407-15012i198110-198201
sub13407-15013
main13407-15013i198201-198304
sub13470-15050
main13408-64011i198202-198211
sub13408-64012
main13408-64012i198211-198304
sub13408-64040
main13471-13040i197903-198108
main13471-15020i197903-197908
main13471-18010i197908-198108
main13471-25021i197903-198304
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12001i197903-197912
W/COOLER
sub90105-12051
main90105-12012i197903-198304
main90105-12050i197903-198011
main90105-12051i197909-198304
main91511-61435i198202-198304
sub90105-14089
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-13020i198108-198304
main13521-22010i197903-198108
N=18
main13521-33010i197903-198304
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i197903-198304
main95161-20622i198202-198304
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-15010i197903-198304
N=18
main13521-64010i198202-198304
sub13521-64011
13566AGUIDE, TIMING BELT
main13566-15010i197903-198304
main13566-64010i198202-198304
sub13566-64011
