WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12290iAE8#198305-198505

sub85110-12540

main85110-12540iAE8#198505-198704

sub85110-12550

main85110-12550iAE8#198505-198507

COLD SPEC

sub85110-12551

main85110-12610iAE8#198507-198704

COLD SPEC

sub85110-12550

85160LINK ASSY, WINDSHIELD WIPER

main85160-12340iAE8#198305-198704

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAE8#198305-198507

main90176-08033iAE8#198507-198704

85190ARM ASSY, WINDSHIELD WIPER

main85190-12570iAE8#198305-198704

RH

main85210-12110iAE8#198305-198704

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450iAE8#198305-198704

LH

sub85220-12561

main85220-14170iAE8#198305-198704

LH,WINTER BLADE

sub85291-14010

main85220-16580iAE8#198607-198704

RH,WINTER BLADE

sub85291-16010

main85220-32300iAE8#198305-198308

RH

sub85220-32311

main85220-32310iAE8#198308-198704

RH

sub85220-32311

main85220-40040iAE8#198305-198607

RH,WINTER BLADE

sub85291-40010

85221BLADE, WINDSHIELD WIPER

main85221-12230iAE8#198305-198704

LH

sub85214-12H90

main85221-30110iAE8#198305-198704

RH

sub85221-30130

9009900955

main90099-00955

9011906151

main90119-06151

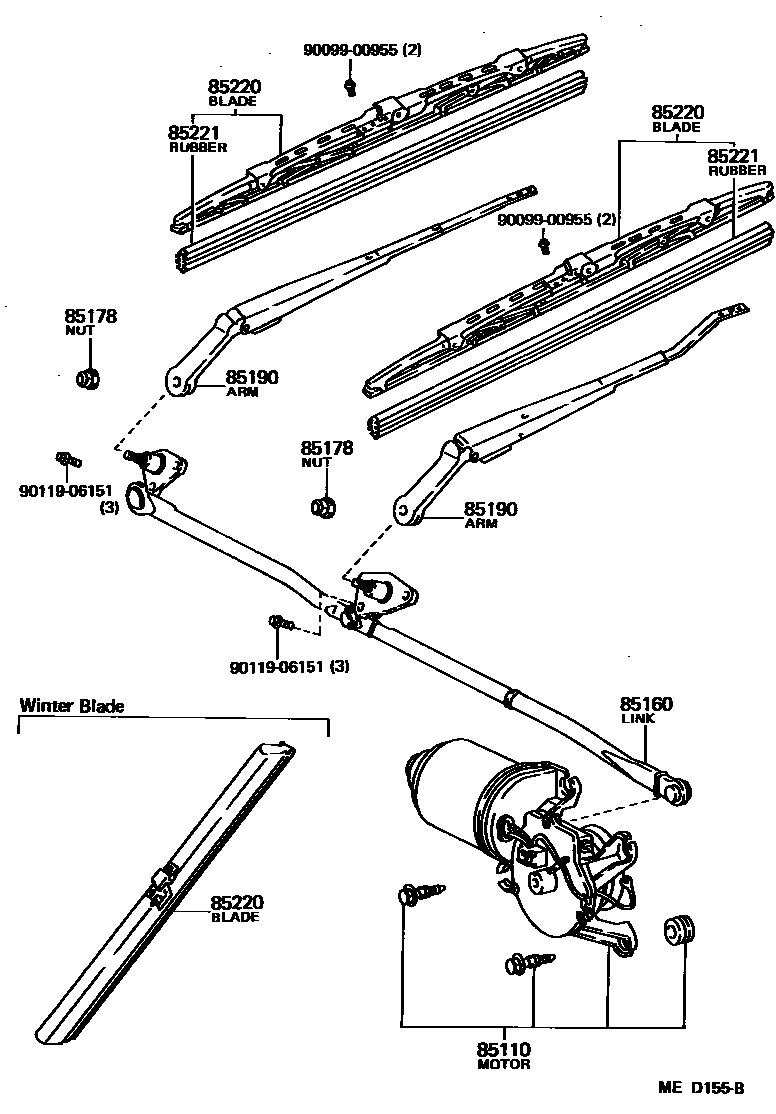

8 parts on this diagram · 1 diagram in section
