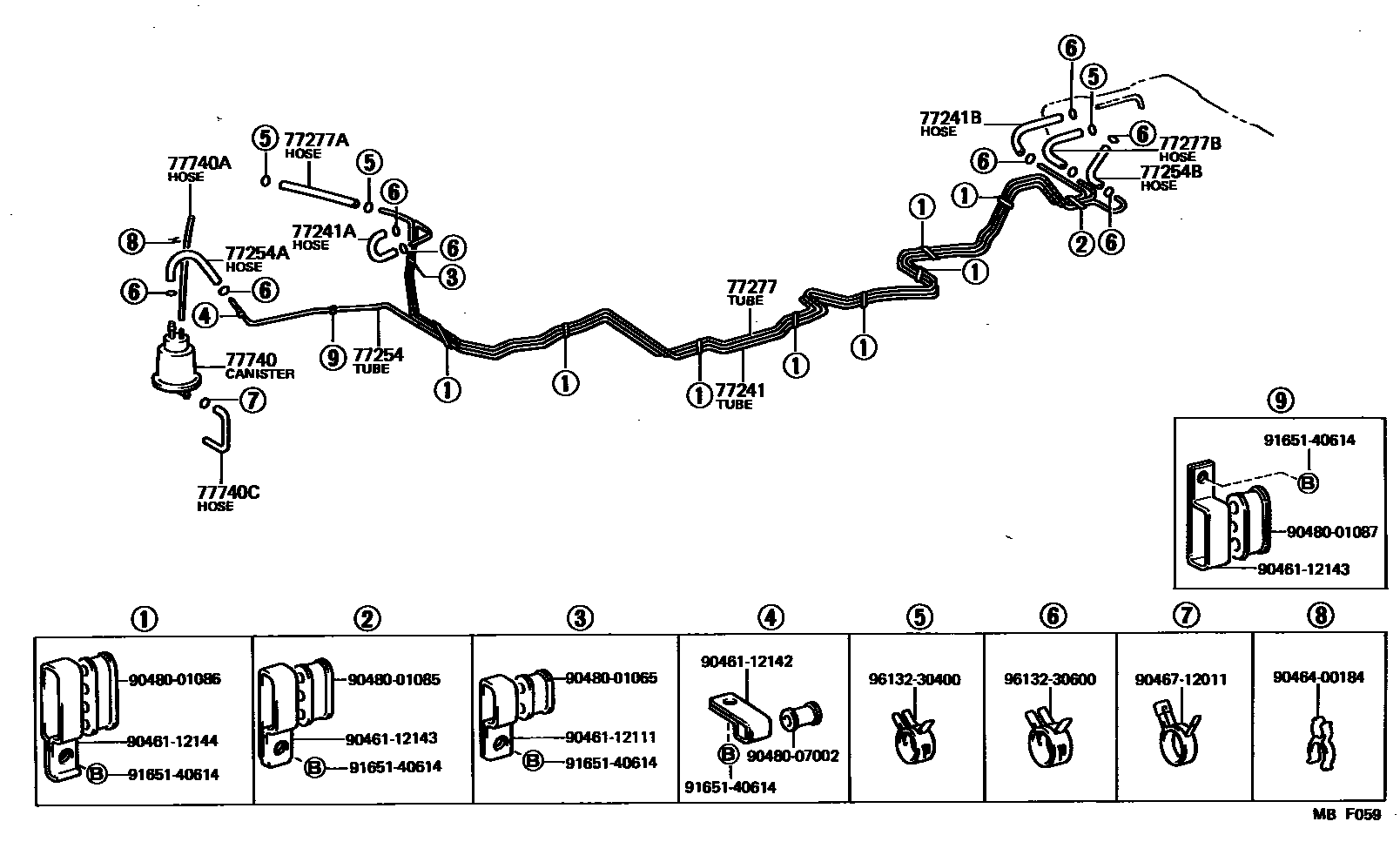

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77241TUBE, FUEL MAIN, NO.1

main77205-12110iAE85198305-198704

main77205-12120iAE86198305-198704

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iAE85198305-198606

sub95333-06020

main95333-06020iAE85198606-198704

sub95337-06020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iAE85198305-198606

sub95333-06020

main95333-06020iAE85198606-198704

sub95337-06020

77254TUBE, FUEL EMISSION, NO.1

main77019-12090iAE85198305-198704

main77019-12100iAE86198305-198704

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06020iAE8#198305-198606

sub95333-06020

main95333-06020iAE8#198606-198704

sub95337-06020

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06020iAE85198305-198606

sub95333-06020

main95332-06030iAE86198305-198701

sub95333-06030

main95333-06020iAE85198606-198704

sub95337-06020

main95333-06022iAE86198701-198702

sub95333-06030

main95333-06030iAE86198702-198704

sub95338-06030

77277TUBE, FUEL RETURN, NO.1

main77255-12150iAE85198305-198704

main77255-12160iAE86198305-198704

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12044iAE86198305-198704

main95332-04030iAE85198305-198606

sub95333-04030

main95333-04024iAE85198606-198702

sub95333-04030

main95333-04030iAE85198702-198704

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iAE85198305-198606

sub95333-04020

main95332-06030iAE86198305-198701

sub95333-06030

main95333-04018iAE85198606-198702

sub95333-04020

main95333-04020iAE85198702-198704

main95333-06022iAE86198701-198702

sub95333-06030

main95333-06030iAE86198702-198704

sub95338-06030

77740CANISTER ASSY, CHARCOAL

main77704-12270iAE8#198305-198704

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main17361-15070iAE85198505-198704

*H,L=540

main95411-19960iAE85198305-198505

sub90999-92003

main95411-19960iAE86198305-198704

sub90999-92003

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77754-12030iAE8#198305-198704

9046112111

main90461-12111

9046112142

main90461-12142

9046112143

main90461-12143

9046112144

main90461-12144

9046400184

main90464-00184

9046712011

main90467-12011

9048001065

main90480-01065

9048001085

main90480-01085

9048001086

main90480-01086

9048001087

main90480-01087

9048007002

main90480-07002

9165140614

main91651-40614

9613230400

main96132-30400

9613230600

main96132-30600

26 parts on this diagram · 3 diagrams in section
