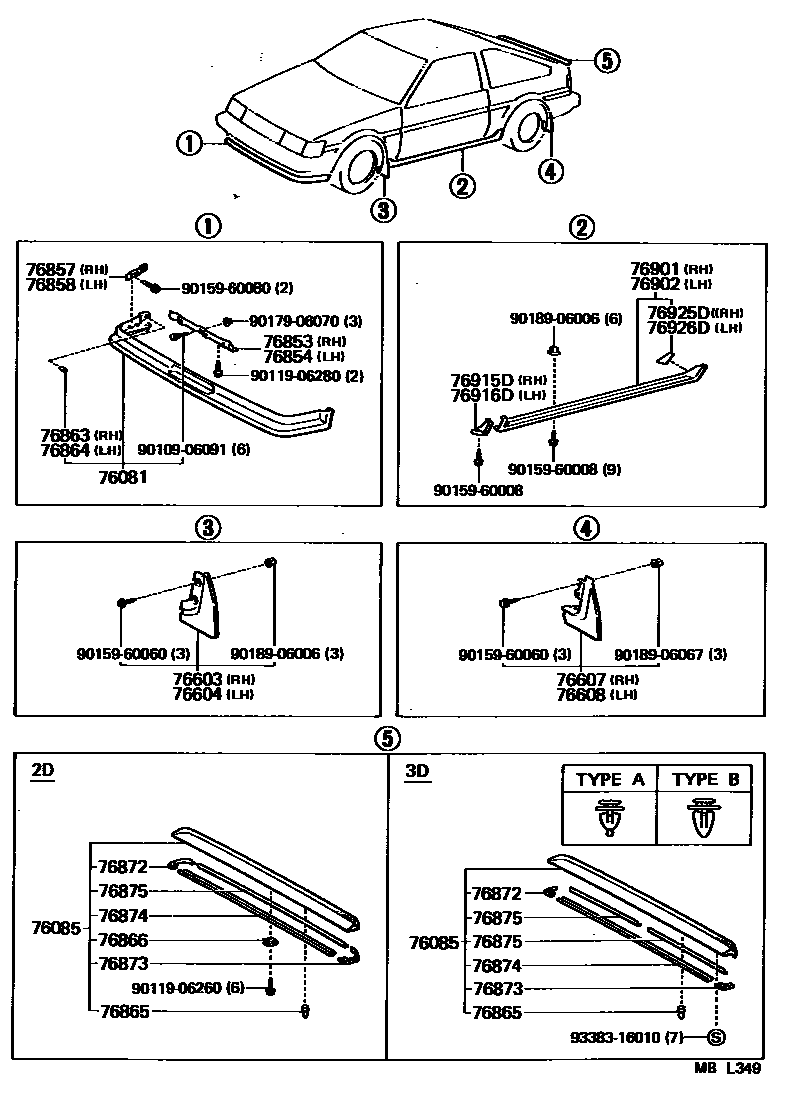

MUDGUARD & SPOILER

76081SPOILER SUB-ASSY, FRONT

main76081-12010iAE86198401-198505

76085SPOILER SUB-ASSY, REAR

main76085-12010iAE86..3D198401-198704

main76085-12030iAE86..2D198401-198704

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19075iAE8#198305-198505

main76621-19076iAE8#..APX,GT,GTV,SE,SR198505-198704

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19075iAE8#198305-198505

main76622-19076iAE8#..APX,GT,GTV,SE,SR198505-198704

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19175iAE8#198305-198505

sub76607-19185

main76607-19275iAE8#..APX,GT,GTV,SE,SR198505-198704

sub76607-19265

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19175iAE8#198305-198505

sub76608-19185

main76608-19275iAE8#..APX,GT,GTV,SE,SR198505-198704

sub76608-19265

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-12020iAE86198401-198505

76854RETAINER, FRONT SPOILER, UPPER LH

main76854-12020iAE86198401-198505

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-12010iAE86198401-198505

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-12010iAE86198401-198505

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-12010iAE86198401-198505

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76863-12010iAE86198401-198505

76865RETAINER, REAR SPOILER, NO.1

main76865-12020iAE86..3D198401-198404

main76865-12020iAE86..3D198404-198704

TYPE A

main76865-12040iAE86..3D198404-198704

TYPE B

main76865-12040iAE86..2D198401-198704

76866RETAINER, REAR SPOILER, NO.2

main76865-12030iAE86..2D198401-198704

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12020iAE8#..3D198607-198704

main76872-12030iAE86..2D198607-198704

76873PROTECTOR, REAR SPOILER, NO.2

main76873-12020iAE8#..3D198607-198704

main76873-12030iAE86..2D198607-198704

76874PROTECTOR, REAR SPOILER, NO.3

main76874-12020iAE8#..3D198607-198704

main76874-12030iAE86..2D198607-198704

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12030iAE8#..3D198607-198704

main76875-12040iAE86..2D198607-198704

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-12010iAE86198408-198505

sub76901-12011

main76901-12011iAE86198505-198704

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-12010iAE86198408-198505

sub76902-12011

main76902-12011iAE86198505-198704

76915DMUDGUARD, SIDE, FRONT RH

main76915-12010iAE86198408-198505

main76915-12011iAE86198505-198704

sub76915-12010

76916DMUDGUARD, SIDE, FRONT LH

main76916-12010iAE86198408-198505

main76916-12011iAE86198505-198704

sub76916-12010

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-12010iAE86198409-198704

76926DPROTECTOR, SIDE MUDGUARD, LH

main76926-12010iAE86198409-198704

9010906091

main90109-06091

9011906260

main90119-06260

9011906280

main90119-06280

9015960008

main90159-60008

9015960060

main90159-60060

9015960080

main90159-60080

9017906070

main90179-06070

9018906006

main90189-06006

9018906067

main90189-06067

9338316010

main93383-16010

34 parts on this diagram · 1 diagram in section
