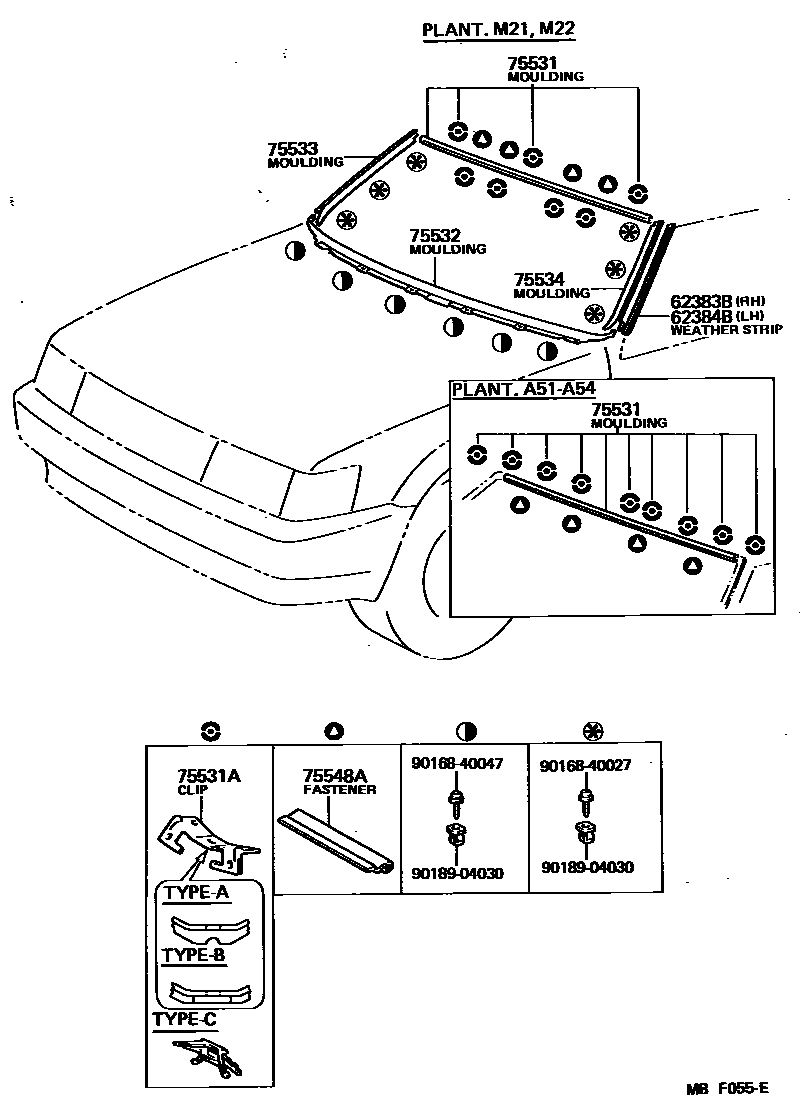

FRONT MOULDING

0001 1 0002 1

62383BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62383-12010iAE8#198305-198704

62384BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62383-12010iAE8#198407-198704

main62384-12010iAE8#198305-198407

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12190iAE85..SE198305-198704

PLANT.M21,M22

main75531-12210iAE8#..APX,GL,GT,GTV,SR198305-198704

PLANT.M21,M22

main75531-12270iAE8#..APX,GL,GT,GTV,SR198305-198505

PLANT.A51-A54

main75531-12271iAE8#..APX,GL,GT,GTV,SR198505-198704

PLANT.A51-A54

main75531-12280iAE85..SE198305-198505

PLANT.A51-A54

main75531-12281iAE85..SE198505-198704

PLANT.A51-A54

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-12050×4iAE8#198305-198704

TYPE-C

main75546-12030×5iAE8#198305-198505

TYPE-B

main75546-14080×3iAE8#198305-198607

TYPE-A

75532MOULDING, WINDSHIELD, LOWER

main75535-12130iAE8#198305-198704

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12200iAE8#..APX,GL,GT,GTV,SR198305-198704

main75533-12220iAE85..SE198305-198704

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12130iAE8#..APX,GL,GT,GTV,SR198305-198704

main75534-12150iAE85..SE198305-198704

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-12060×4iAE8#198305-198704

9016840027

main90168-40027

9016840047

main90168-40047

9018904030

main90189-04030

11 parts on this diagram · 2 diagrams in section
