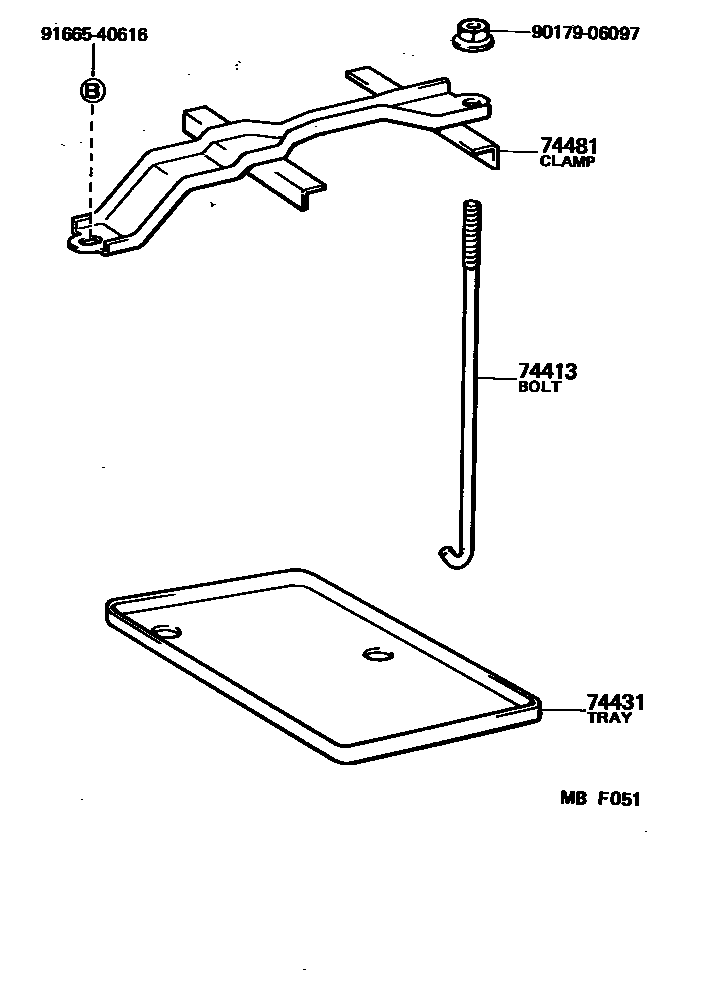

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-14010iAE8#198305-198704

74431TRAY, BATTERY

main74431-14010iAE8#198305-198704

34B19L(NS40ZAL)

sub74431-14050

main74431-14020iAE8#198305-198704

46B24L(NS60L)

74481CLAMP, BATTERY HOLD DOWN

main74404-12190iAE8#198305-198704

9017906097

main90179-06097

9166540616

main91665-40616

5 parts on this diagram · 1 diagram in section
