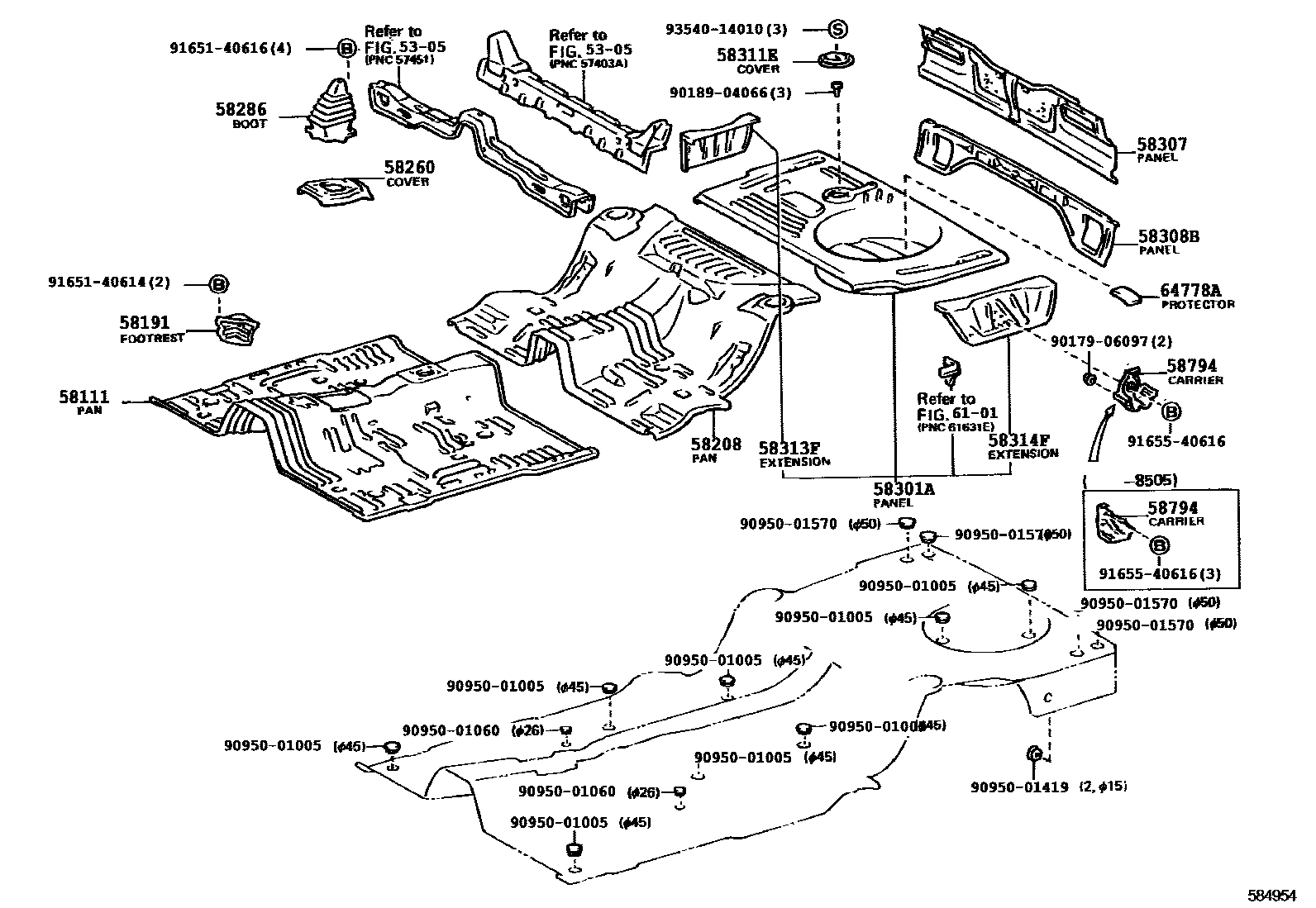

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

58111PAN, FRONT FLOOR

main58111-12160iAE8#198305-198704

58191FOOTREST, FRONT FLOOR

main58191-12050iAE8#198305-198704

58208PAN, CENTER FLOOR

main58211-12150iAE8#198305-198704

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12030iAE8#..5F198305-198704

main58281-12040iAE8#..4FC198305-198704

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12110iAE85..5F198305-198704

main58280-12120iAE86..5F198305-198704

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12170iAE8#..3D198305-198704

main58301-12190iAE8#..2D198305-198503

sub58301-12210

main58301-12210iAE8#..2D198503-198505

main58301-12211iAE8#..2D198505-198704

sub58301-12210

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12730iAE8#..3D198305-198505

main58307-12731iAE8#..3D198505-198704

main58307-12780iAE8#..2D198305-198505

main58307-12781iAE8#..2D198505-198704

58308BPANEL SUB-ASSY, REAR VALANCE

main58308-12110iAE8#198305-198704

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-16030iAE8#198305-198704

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12140iAE8#..3D198305-198704

main58313-12150iAE8#..2D198305-198704

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12050iAE8#..2D198305-198412

sub58303-12060

main58303-12060iAE8#..2D198412-198505

main58303-12061iAE8#..2D198505-198704

main58314-12140iAE8#..3D198305-198704

58794CARRIER, JACK

main58791-12080iAE8#..2D198305-198505

main58791-12081iAE8#..2D198505-198704

6101

64778APROTECTOR, SPARE WHEEL

main64778-12020iAE8#198305-198704

9017906097

main90179-06097

9018904066

main90189-04066

9095001005

main90950-01005

9095001060

main90950-01060

9095001419

main90950-01419

9095001570

main90950-01570

9165140614

main91651-40614

9165140616

main91651-40616

9165540616

main91655-40616

9354014010

main93540-14010

25 parts on this diagram · 2 diagrams in section
