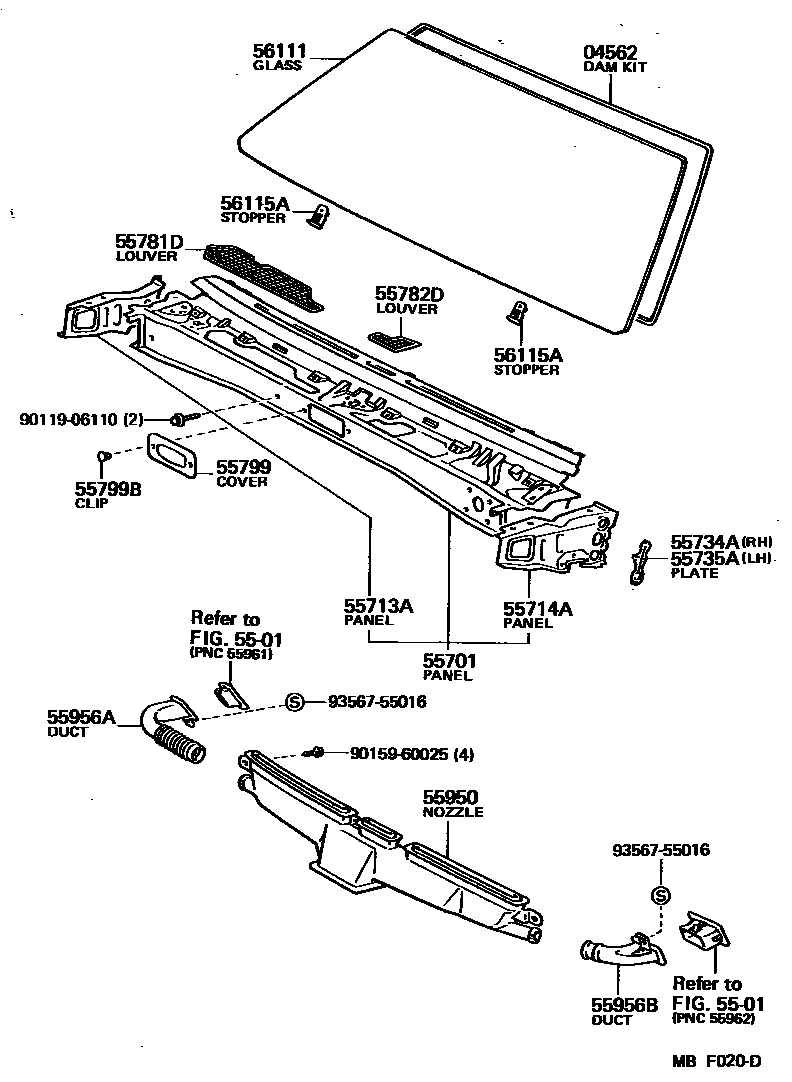

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30030iAE8#198305-198308

sub04562-30040

main04562-30040iAE8#198308-198704

5501

55701PANEL SUB-ASSY, COWL

main55700-12230iAE8#198305-198511

sub55700-12410

main55700-12230iAE8#198511-198704

PLANT.M21,M22

sub55700-12410

main55700-12410iAE8#198511-198704

PLANT.A51-A54

55713APANEL, COWL TOP SIDE, RH

main55713-12050iAE8#198305-198704

55714APANEL, COWL TOP SIDE, LH

main55714-12050iAE8#198305-198704

55734APLATE, WATER GUARD, RH

main55734-12060iAE8#198305-198704

55735APLATE, WATER GUARD, LH

main55735-12060iAE8#198305-198704

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-12120iAE8#198305-198704

55782DLOUVER, COWL TOP VENTILATOR, LH

main55784-12010iAE8#198305-198704

55799COVER, WIPER MOTOR

main55793-24010iAE8#198305-198704

55799BCLIP, WIPER MOTOR COVER, OUTER

main90467-08023iAE8#198305-198704

55950NOZZLE ASSY, DEFROSTER

main55950-12080iAE8#198305-198704

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12050iAE8#198305-198704

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12040iAE8#198305-198704

56111GLASS, WINDSHIELD

main56111-12480iAE8#..GL,GT,GTV,SE,SR198305-198605

*TZT,T=5.0

sub56111-12760

main56111-12510iAE86..APX198305-198508

*TEM,T=5.0,BRONZE

sub56111-12790

main56111-12511iAE86..APX198508-198704

*LAM,T=5.3,BRONZE

main56111-12760iAE8#..GL,GT,GTV,SE,SR198508-198704

*TL,T=5.3

main56111-12790iAE86..APX198508-198605

*TEM,T=5.0,BRONZE

sub56111-12511

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12010iAE8#198305-198704

9011906110

main90119-06110

9015960025

main90159-60025

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
