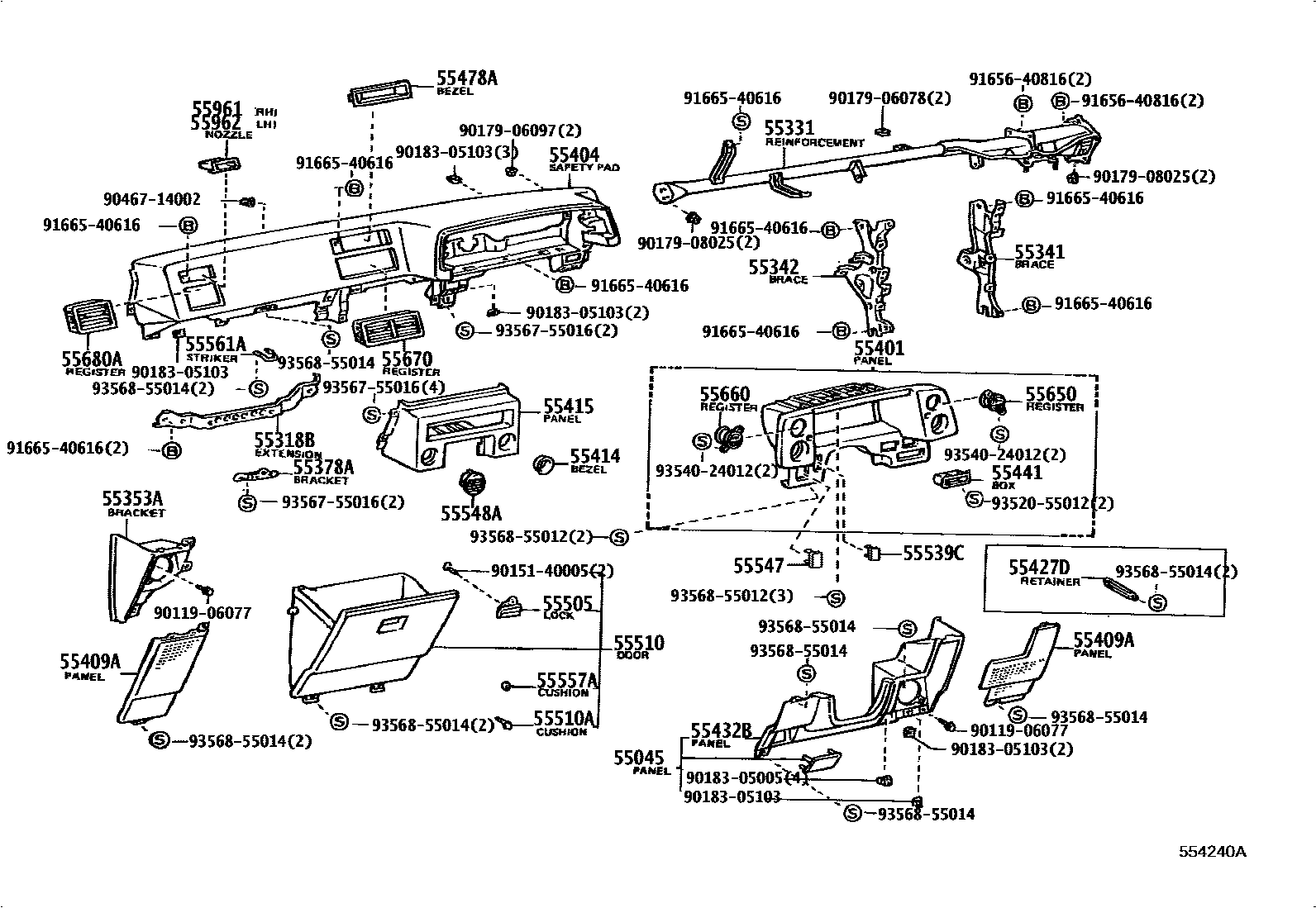

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-12070-02iAE86..GTV198406-198505

W/O *TIS,TERRA COTTA,MAROON,TRIM3#

main55045-12070-04iAE8#..GL,GT,GTV,SE,SR198406-198505

W/O *TIS,BLUE,BLUE,TRIM8#

main55045-12070-05iAE8#..GL,GT,SE,SR198406-198505

W/O *TIS,BEIGE,BEIGE,TRIM3#

main55045-12080-02iAE86..APX198406-198505

W/*TIS,TERRA COTTA,MAROON,TRIM3#

main55045-12080-04iAE8#..APX,GL,SE,SR198406-198505

W/*TIS,BLUE,BLUE,TRIM8#

main55045-12080-05iAE85198406-198505

W/*TIS,BEIGE,BEIGE,TRIM3#

main55045-12110-01iAE8#..GL,GT,GTV,SE,SR198505-198704

W/O *TIS,BLACK,BLACK,TRIM2#

main55045-12120-01iAE8#..APX,GL,SE,SR198505-198704

W/*TIS,BLACK,BLACK,TRIM2#

55318BEXTENSION, INSTRUMENT PANEL

main55558-12050iAE8#198305-198704

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12100iAE8#198305-198505

main55330-12101iAE8#198505-198704

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-12040iAE8#198305-198704

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-12090iAE8#198305-198704

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-12040-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55353-12040-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55353-12040-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-12090iAE8#198305-198704

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-12890iAE8#198305-198505

main55410-12891iAE8#198505-198704

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-12160-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55401-12160-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55401-12160-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-12040-02iAE86..APX,GTV198305-198505

RH,TERRA COTTA,RED/MAROON,TRIM3#

main55472-12040-04iAE8#198305-198505

RH,BLUE,BLUE,TRIM8#

main55472-12040-05iAE8#..GL,GT,SE,SR198305-198505

RH,BEIGE,BEIGE,TRIM3#

main55472-12041-01iAE8#198505-198704

RH,BLACK,BLACK,TRIM2#

main55473-12020-02iAE86..APX,GTV198305-198505

LH,TERRA COTTA,RED/MAROON,TRIM3#

main55473-12020-04iAE8#198305-198505

LH,BLUE,BLUE,TRIM8#

main55473-12020-05iAE8#..GL,GT,SE,SR198305-198505

LH,BEIGE,BEIGE,TRIM3#

main55473-12021-01iAE8#198505-198704

LH,BLACK,BLACK,TRIM2#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12070iAE8#198305-198704

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-12320iAE8#198305-198505

main55412-12321iAE8#198505-198704

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55429-12030iAE8#198305-198509

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12200-02iAE86..GTV198305-198406

W/O *TIS,TERRA COTTA,RED/MAROON,TRIM3#

main55432-12200-04iAE8#..GL,GT,GTV,SE,SR198305-198406

W/O *TIS,BLUE,BLUE,TRIM8#

main55432-12200-05iAE8#..GL,GT,SE,SR198305-198406

W/O *TIS,BEIGE,BEIGE,TRIM3#

main55432-12210-02iAE86..APX198305-198406

W/*TIS,TERRA COTTA,RED/MAROON,TRIM3#

main55432-12210-04iAE8#..APX,GL,SE,SR198305-198406

W/*TIS,BLUE,BLUE,TRIM8#

main55432-12210-05iAE85198305-198406

W/*TIS,BEIGE,BEIGE,TRIM3#

55441BOX, INSTRUMENT PANEL

main55441-12080iAE8#198305-198505

55478ABEZEL, AUTO CLOCK HOLE

main55478-12040-01iAE8#..APX,GT,GTV,SE,SR198505-198704

BLACK,BLACK,TRIM2#

main55478-12040-02iAE8#..APX,GT,GTV,SE,SR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55478-12040-04iAE8#..APX,GT,GTV,SE,SR198305-198505

BLUE,BLUE,TRIM8#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-12060-02iAE86..APX,GTV198305-198504

TERRA COTTA,RED/MAROON,TRIM3#

sub55560-12051

sub93229-54008

main55560-12060-04iAE8#198305-198504

BLUE,BLUE,TRIM8#

sub55560-12051

sub93229-54008

main55560-12060-15iAE8#..GL,GT,SE,SR198305-198504

BEIGE,BEIGE,TRIM3#

sub55560-12051

sub93229-54008

main55560-12061-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

sub55560-12051

main55560-12061-02iAE86..APX,GTV198504-198505

TERRA COTTA,DEEP MAROON,TRIM3#

sub55560-12051

main55560-12061-14iAE8#198504-198505

BLUE,BLUE,TRIM8#

sub55560-12051

main55560-12061-16iAE8#..GL,GT,SE,SR198504-198505

BROWN,BROWN

sub55560-12051

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12230-02iAE86..APX,GTV198305-198505

TERRA COTTA,TERACOTTA,TRIM3#

main55550-12230-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

main55550-12230-05iAE8#..GL,GT,SE,SR198305-198505

BEIGE,BEIGE,TRIM3#

main55550-12231-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iAE8#198305-198704

55539CCOVER, SPARE SWITCH HOLE

main55539-32010-C0iAE8#198305

BLACK

sub55539-32030

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-13iAE8#198305

GRAY

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12031iAE86198305-198704

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iAE8#198305-198406

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAE8#198305-198704

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12120iAE8#198305-198704

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-12200iAE8#198305-198704

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12090-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55670-12090-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55670-12090-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4

main55680-12010-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55680-12010-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55680-12010-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12110-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55961-12110-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55961-12110-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12100-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main55962-12100-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main55962-12100-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

9011906077

main90119-06077

9015140005

main90151-40005

9017906078

main90179-06078

9017906097

main90179-06097

9017908025

main90179-08025

9018305005

main90183-05005

9018305103

main90183-05103

9046714002

main90467-14002

9165640816

main91656-40816

9166540616

main91665-40616

9352055012

main93520-55012

9354024012

main93540-24012

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

45 parts on this diagram · 2 diagrams in section
