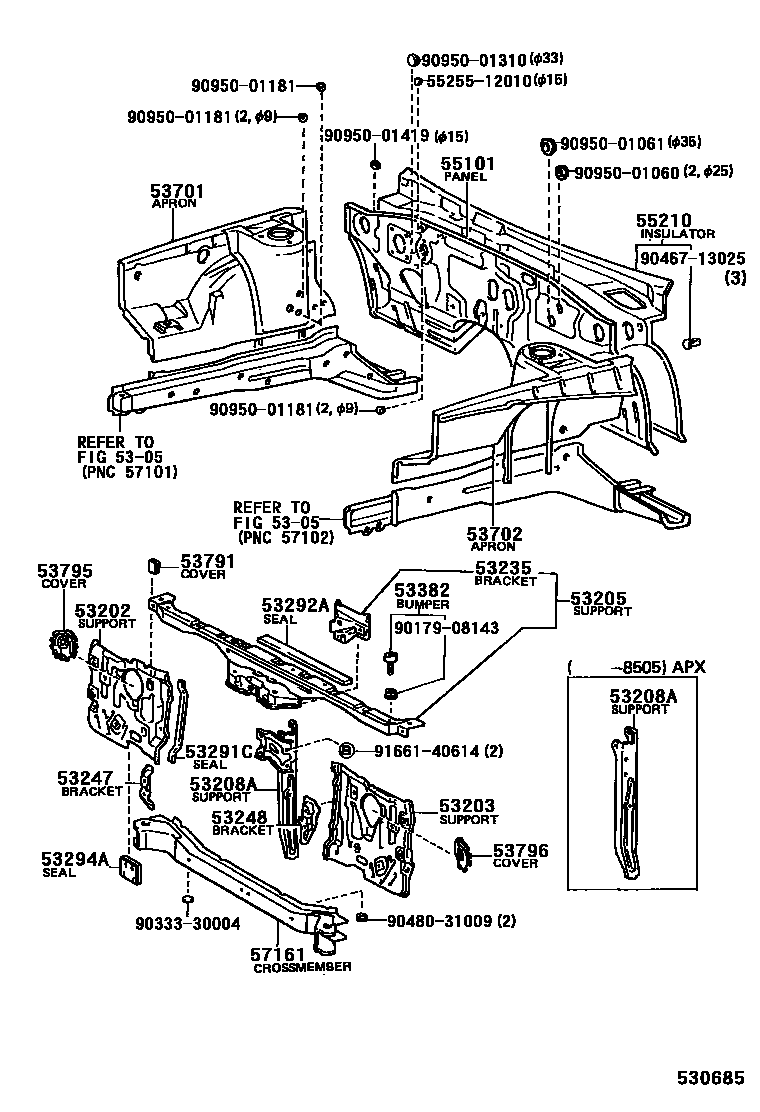

FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-12210iAE8#198305-198501

main53211-12220iAE8#198501-198704

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-12190iAE8#198305-198601

main53212-12200iAE8#198601-198704

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12903iAE8#198305-198408

main53216-12904iAE8#198408-198505

main53216-12927iAE8#198505-198704

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12220iAE8#..GL,GT,GTV,SE,SR198305-198505

sub53208-12290

main53208-12221iAE8#198505-198508

main53208-12291iAE8#198508-198704

main53215-12110iAE86..APX198305-198505

53235BRACKET, HORN MOUNTING

main53235-12010iAE8#198505-198704

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53271-12030iAE8#198305-198704

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53272-12020iAE8#198305-198704

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-12090×2iAE8#198305-198704

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-12010iAE8#198305-198704

53294ASEAL, COOL AIR INTAKE PIPE

main53294-12030×2iAE8#198305-198704

main53294-12040×2iAE8#198305-198704

W/AIR CON

53382BUMPER, HOOD, FRONT

main53382-12050×2iAE8#198305-198704

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12911iAE85198305-198607

main53701-12912iAE86198305-198607

main53701-12919iAE85198607-198704

main53701-12920iAE86198607-198704

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12917iAE85198305-198704

main53702-12918iAE86198305-198704

W/O POWER STEERING

main53702-12919iAE86..APX,GT198305-198704

W/POWER STEERING

53791COVER, COOL AIR INTAKE HOLE

main53791-12040iAE86198305-198704

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12020iAE8#198305-198704

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-12010iAE8#198305-198704

55101PANEL SUB-ASSY, DASH

main55101-12907iAE85198305-198704

main55101-12908iAE86198305-198704

55210INSULATOR ASSY, DASH PANEL

main55210-12200iAE8#198305-198704

57161CROSSMEMBER, FRONT

main57161-12904iAE8#198305-198704

sub57161-12905

5525512010COVER, CLUTCH MASTER CYLINDER HOLE

main55255-12010

9017908143

main90179-08143

9033330004

main90333-30004

9046713025

main90467-13025

9048031009

main90480-31009

9095001060

main90950-01060

9095001061

main90950-01061

9095001181

main90950-01181

9095001310

main90950-01310

9095001419

main90950-01419

9166140614

main91661-40614

31 parts on this diagram · 1 diagram in section
