HOOD & FRONT FENDER

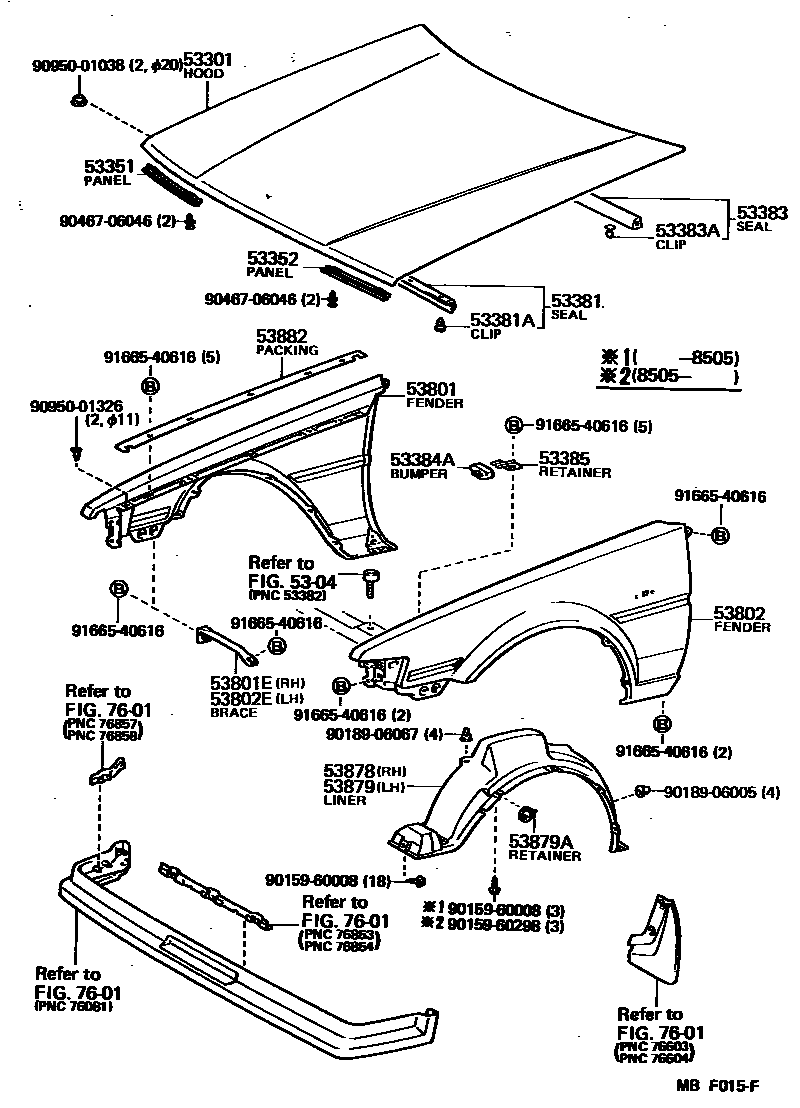

Parts diagram
5304
53301HOOD SUB-ASSY
main53301-12340i198305-198508
sub53301-12342
sub90950-01038
main53301-12340i198508-198608
PLANT.M21,M22
sub53301-12342
sub90950-01038
main53301-12342i198608-198704
PLANT.M21,M22
sub53301-12442
main53301-12440i198508-198608
PLANT.A51-A54
sub53301-12442
sub90950-01038
main53301-12442i198608-198704
PLANT.A51-A54
53351PANEL, HOOD SIDE, RH
main53351-12020i198305-198704
53352PANEL, HOOD SIDE, LH
main53352-12020i198305-198704
53381SEAL, HOOD TO RADIATOR SUPPORT
main53381-12120i198305-198704
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
main90467-08011i198305-198704
53383SEAL, HOOD TO COWL TOP
main53383-12050i198305-198704
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
main90467-08030i198305-198704
53384ABUMPER, FENDER TO HOOD
main53384-14010i198305-198704
53385RETAINER, HOOD, BUMPER
main53385-14010i198305-198704
LH
main53386-14010i198305-198704
RH
53801FENDER SUB-ASSY, FRONT RH
main53801-1A580i198305-198505
W/O *DM
main53801-1A581i198505-198704
W/O *DM
main53801-1A591i198603-198704
W/*DM
main53801-1A600i198305-198505
W/O *DM
main53801-1A601i198505-198704
W/O *DM
main53801-1A620i198305-198505
W/*DM
sub53801-1A860
main53801-1A621i198505-198603
W/*DM
sub53801-1A861
main53801-1A850i198305-198505
W/*DM
sub53801-1A590
main53801-1A851i198505-198603
W/*DM
sub53801-1A591
main53801-1A861i198603-198704
W/*DM
main53801-1E290i198505-198603
W/O *DM & W/ARCH MOULDING
sub53801-1A581
main53801-1E300i198505-198603
W/O *DM & W/ARCH MOULDING
sub53801-1A601
main53801-1E340i198505-198603
W/*DM & ARCH MOULDING
sub53801-1A861
main53801-1E350i198505-198603
W/*DM & ARCH MOULDING
sub53801-1A591
53801EBRACE, FRONT FENDER TO APRON, RH
main53835-12020i198305-198704
53802FENDER SUB-ASSY, FRONT LH
main53802-1A550i198305-198505
W/O *DM
main53802-1A551i198505-198704
W/O *DM
main53802-1A600i198305-198505
W/*DM
sub53802-1A660
main53802-1A601i198505-198603
W/*DM
sub53802-1A661
main53802-1A661i198603-198704
W/*DM
main53802-1E220i198505-198603
W/*DM & ARCH MOULDING
sub53802-1A661
main53802-1E240i198505-198603
W/O *DM & W/ARCH MOULDING
sub53802-1A551
53802EBRACE, FRONT FENDER TO APRON, LH
main53835-12020i198305-198704
53878LINER, FRONT FENDER, RH
main53875-12060i198305-198505
sub53875-12140
main53875-12061i198505-198704
53879LINER, FRONT FENDER, LH
main53876-12060i198305-198505
sub53876-12130
main53876-12061i198505-198704
53879ARETAINER, FRONT FENDER LINER
main53879-14010i198305-198704
53882PACKING, FRONT FENDER MAIN
main53882-12060i198305-198704
7601
9015960008
main90159-60008
9015960298
main90159-60298
9018906005
main90189-06005
9018906067
main90189-06067
9046706046
main90467-06046
9095001038
main90950-01038
9095001326
main90950-01326
9166540616
main91665-40616

27 parts on this diagram · 1 diagram in section
