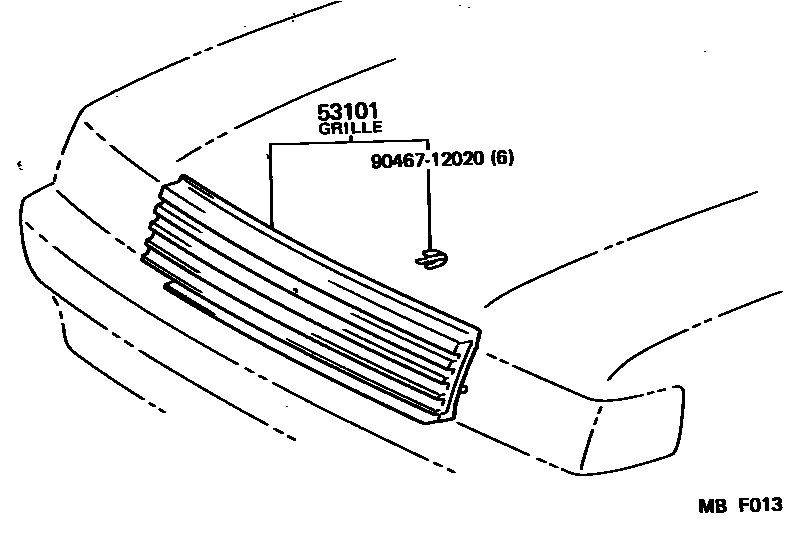

RADIATOR GRILLE

0001 1 0002 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53100-12220iAE8#..GL,GT,GTV,SE,SR198305-198505

main53100-12221iAE86..APX198505-198704

sub53100-12901

main53100-12270iAE86..APX198305-198401

main53100-12271iAE86..APX198401-198505

main53100-12300iAE8#..GL,GT,GTV,SE,SR198505-198704

sub53100-12310

9046712020

main90467-12020

2 parts on this diagram · 3 diagrams in section
