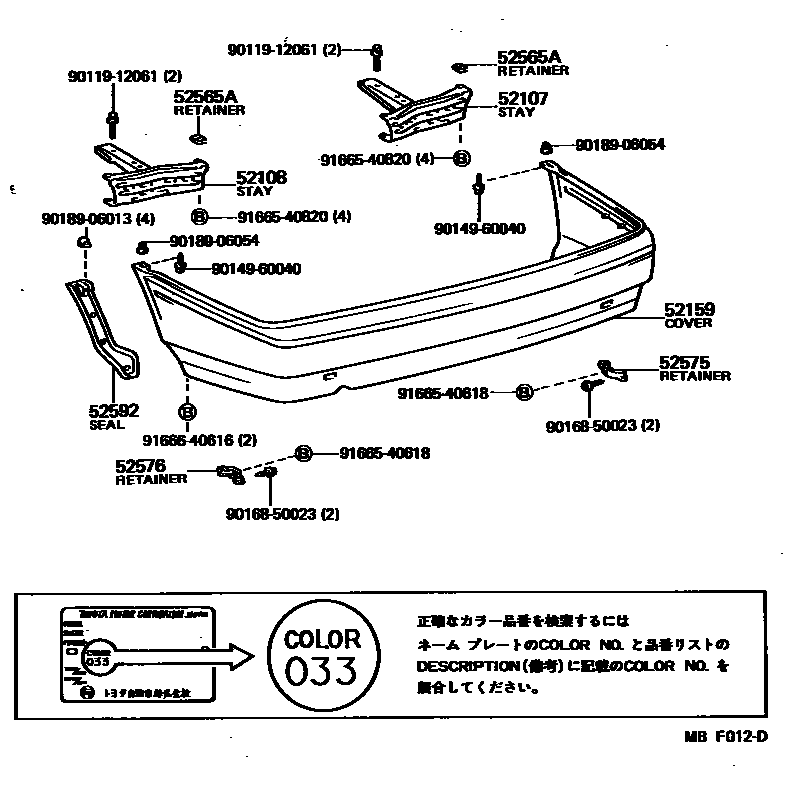

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-12110iAE8#¥3,950198305-198505

main52015-12111iAE8#¥4,150198505-198704

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-12110iAE8#¥3,950198305-198505

main52016-12111iAE8#¥4,150198505-198704

52159COVER, REAR BUMPER

main52159-12060iAE8#..GL,GT,GTV,SE,SR¥40,000198305-198401

DARK GRAY(558,8A9);DARK GRAY(038,147,151,3D7)

main52159-12061iAE8#..GL,GT,GTV,SE,SR¥33,300198401-198505

BLACK(038,041,147,3D7,3E6,8A9)

main52159-12062iAE8#..GL,GT,GTV,SE,SR¥33,500198505-198704

BLACK(041,3E6,148,159,164)

main52159-12082-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,BLACK/RED,2T6 ,3E6

sub52159-12062¥33,500

sub52159-12590¥58,800

main52159-12082-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,BLACK/WHITE,2T7 ,041

sub52159-12062¥33,500

sub52159-12590¥58,800

main52159-12090-02iAE86..APX198305-198401

RED,RED/MAROON,2M9

sub52159-12091¥58,400

main52159-12090-03iAE86..APX198305-198401

SILVER-M,GRAY,2M8

sub52159-12091¥58,400

main52159-12090-08iAE86..APX198305-198401

WHITE,IVORY,2N2

sub52159-12091¥58,400

main52159-12091-02iAE8#..APX,GT,GTV,SE,SR198401-198408

RED,RED,2M9

sub52159-12061¥33,300

main52159-12091-03iAE8#..APX,GT,GTV,SE,SR198401-198505

SILVER-M,SILVER METALLIC,2M8

sub52159-12061¥33,300

main52159-12091-08iAE8#..APX,GT,GTV,SE,SR198401-198408

WHITE,WHITE,2N2

sub52159-12061¥33,300

main52159-12091-12iAE8#..APX,GT,GTV,SE,SR198408-198505

RED,RED,2T6

sub52159-12061¥33,300

main52159-12091-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

sub52159-12061¥33,300

main52159-12092iAE86..GT,GTV¥33,500198505-198605

W/*WAM,BLACK(041,3E6,148,159)

sub52159-12062¥33,500

main52159-12092iAE86..GT,GTV¥33,500198605-198704

W/*WAM,BLACK(041,3E6,164,159)

sub52159-12062¥33,500

main52159-12540-02iAE86198505-198704

W/*WAM,RED,BLACK/RED,2T6 ,3E6

sub52159-12092¥33,500

sub52159-12082¥58,800

main52159-12540-08iAE86198505-198704

W/*WAM,WHITE,BLACK/WHITE,2T7 ,041

sub52159-12092¥33,500

sub52159-12082¥58,800

main52159-12590-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER,MEDIUM GRAY METALLIC,2X1

sub52159-12062¥33,500

main52159-12600-03iAE86198505-198704

W/*WAM,SILVER,MEDIUM GRAY METALLIC,2X1

sub52159-12092¥33,500

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iAE8#¥270198305-198704

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12010iAE8#¥1,030198305-198505

main52575-12011iAE8#¥1,030198505-198704

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12010iAE8#¥1,030198305-198505

main52576-12011iAE8#¥1,030198505-198704

52592SEAL, REAR BUMPER SIDE, LH

main52591-12010iAE8#¥600198305-198505

main52592-12010iAE8#¥510198505-198704

9011912061

main90119-12061¥330

9014960040

main90149-60040¥130

9016850023

main90168-50023¥110

9018906013

main90189-06013¥70

9018906054

main90189-06054¥140

9166540618

main91665-40618¥110

9166540820

main91665-40820¥140

9166640616

main91666-40616¥180

15 parts on this diagram · 2 diagrams in section
