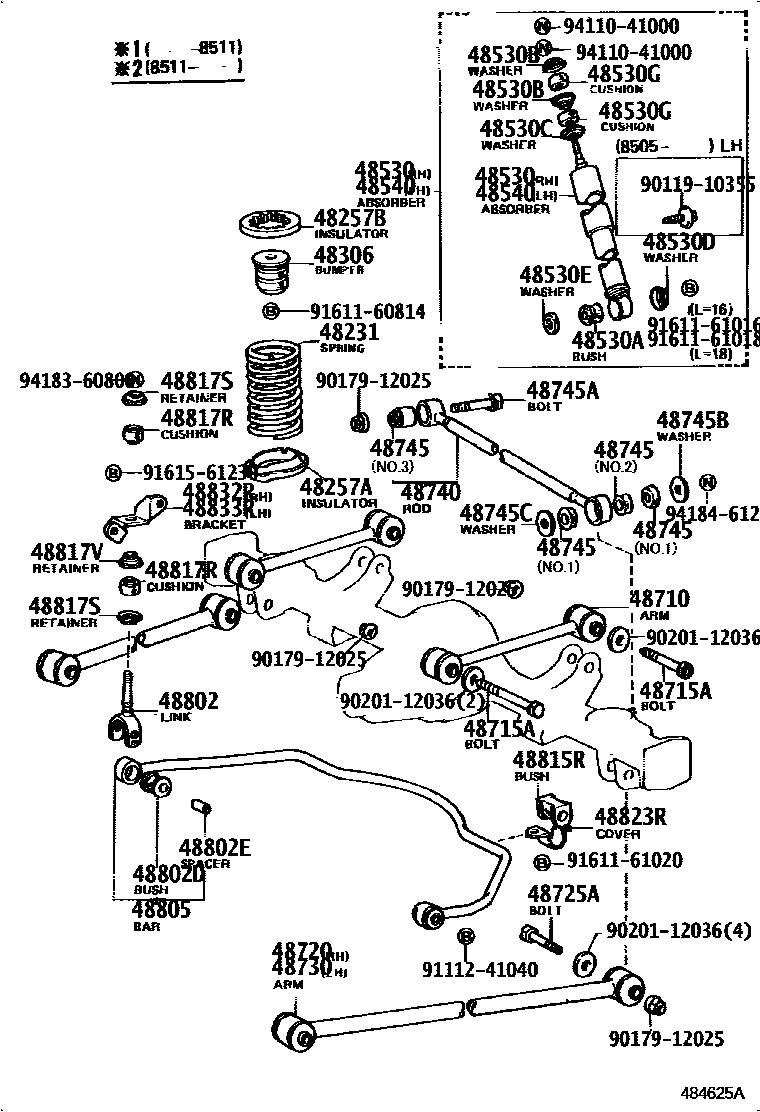

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-12230×2iAE85..2D198305-198704

main48231-12250×2iAE86..GTV198305-198704

main48231-12300×2iAE86..APX,GT198305-198607

main48231-12530×2iAE85..SR198305-198704

main48231-12740×2iAE86..3D..APX198607-198704

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010×2iAE8#198305-198704

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-12020×2iAE8#198305-198704

48306BUMPER SUB-ASSY, REAR SPRING

main48306-12050×2iAE8#198305-198704

sub48306-12070

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-12320iAE85198511-198704

main48531-12340iAE86..APX,GT198511-198704

main48531-12360iAE86..GTV198511-198704

main48531-80028iAE85198305-198505

sub48531-80162

main48531-80029iAE86..APX,GT198305-198505

sub48531-80163

main48531-80030iAE86..GTV198305-198505

main48531-80055iAE85198505-198511

sub48531-80162

main48531-80056iAE86..APX,GT198505-198511

sub48531-80163

main48531-80057iAE86..GTV198505-198511

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iAE8#198305-198704

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×4iAE8#198305-198704

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007×2iAE8#198305-198704

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02047iAE8#198305-198408

RH

main90948-02085iAE8#198408-198704

RH

main90948-03012iAE8#198305-198505

LH

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iAE8#198305-198704

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01003×2iAE8#198305-198704

UPR

main90948-01018×2iAE8#198305-198704

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-12320iAE85198511-198704

main48531-12340iAE86..APX,GT198511-198704

main48531-12360iAE86..GTV198511-198704

main48531-80028iAE85198305-198505

sub48531-80162

main48531-80029iAE86..APX,GT198305-198505

sub48531-80163

main48531-80030iAE86..GTV198305-198505

main48531-80055iAE85198505-198511

sub48531-80162

main48531-80056iAE86..APX,GT198505-198511

sub48531-80163

main48531-80057iAE86..GTV198505-198511

48710ARM ASSY, UPPER CONTROL

main48710-12080×2iAE86..GTV198305-198704

main48710-12100×2iAE85..2D198305-198704

main48710-12110×2iAE8#..APX,GT,SR198305-198704

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-12044×2iAE8#198305-198704

*12-1.25PX77-22

main90101-12045×2iAE8#198305-198704

*12-1.25PX149-23

48720ARM ASSY, LOWER CONTROL, RH

main48720-12020iAE85198305-198704

main48720-12060iAE86198305-198704

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-12044×4iAE8#198305-198704

48730ARM ASSY, LOWER CONTROL, LH

main48720-12020iAE85198305-198704

main48720-12060iAE86198305-198704

48740ROD ASSY, REAR LATERAL CONTROL

main48740-12021iAE86;AE85..4FC198305-198704

main48740-12030iAE85..5F198305-198704

48745BUSH, LATERAL CONTROL ROD

main48706-14010iAE8#198305-198704

main90385-20001×2iAE8#198305-198704

main90386-20001iAE8#198305-198704

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12070iAE8#198305-198704

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iAE8#198305-198704

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iAE8#198305-198704

48802LINK SUB-ASSY, STABILIZER

main48802-12010×2iAE8#..APX,GT,GTV,SR198305-198704

48802DBUSH, STABILIZER LINK

main90385-11021×2iAE8#..APX,GT,GTV,SR198305-198704

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iAE8#..APX,GT,GTV,SR198305-198704

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14100iAE8#..APX,GT,SR198305-198704

main48805-14110iAE86..GTV198305-198704

48815RBUSH, STABILIZER(FOR REAR)

main48815-12110×2iAE8#..APX,GT,SR198305-198704

main48815-12120×2iAE86..GTV198305-198704

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iAE8#..APX,GT,GTV,SR198305-198704

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iAE8#..APX,GT,GTV,SR198305-198704

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02025×2iAE8#..APX,GT,GTV,SR198305-198704

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-12030×2iAE8#..APX,GT,GTV,SR198305-198704

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-12011iAE8#..APX,GT,GTV,SR198305-198704

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-12011iAE8#..APX,GT,GTV,SR198305-198704

9011910355

main90119-10355

9017912025

main90179-12025

9020112036

main90201-12036

9111241040

main91112-41040

9161160814

main91611-60814

9161161016

main91611-61016

9161161018

main91611-61018

9161161020

main91611-61020

9161561230

main91615-61230

9411041000

main94110-41000

9418360800

main94183-60800

9418461200

main94184-61200

45 parts on this diagram · 1 diagram in section
