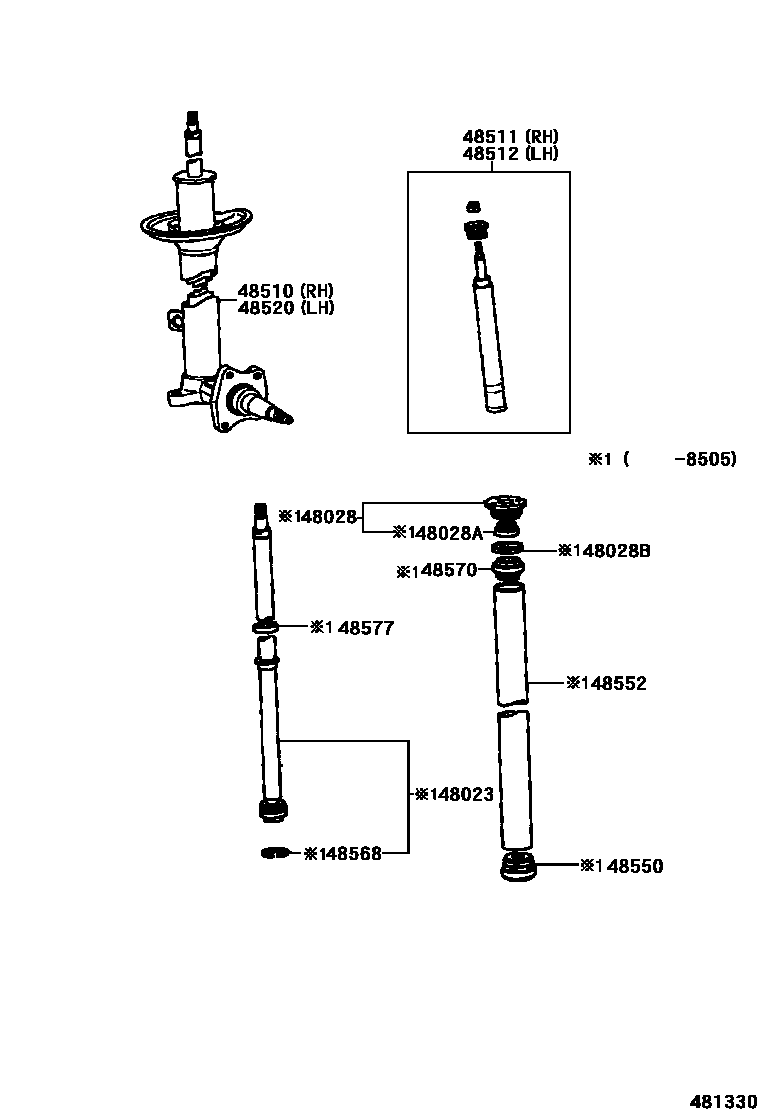

FRONT SPRING & SHOCK ABSORBER
48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48028NUT SUB-ASSY, SHOCK ABSORBER RING
sub48028-14012
48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)
48028BGASKET(FOR SHOCK ABSORBER RING NUT)
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48550VALVE ASSY, SHOCK ABSORBER BASE
48552CYLINDER, SHOCK ABSORBER(FOR FRONT)
48568RING, SHOCK ABSORBER PISTON
48570GUIDE ASSY, SHOCK ABSORBER ROD
48577STOPPER, SHOCK ABSORBER REBOUND
13 parts on this diagram · 2 diagrams in section
