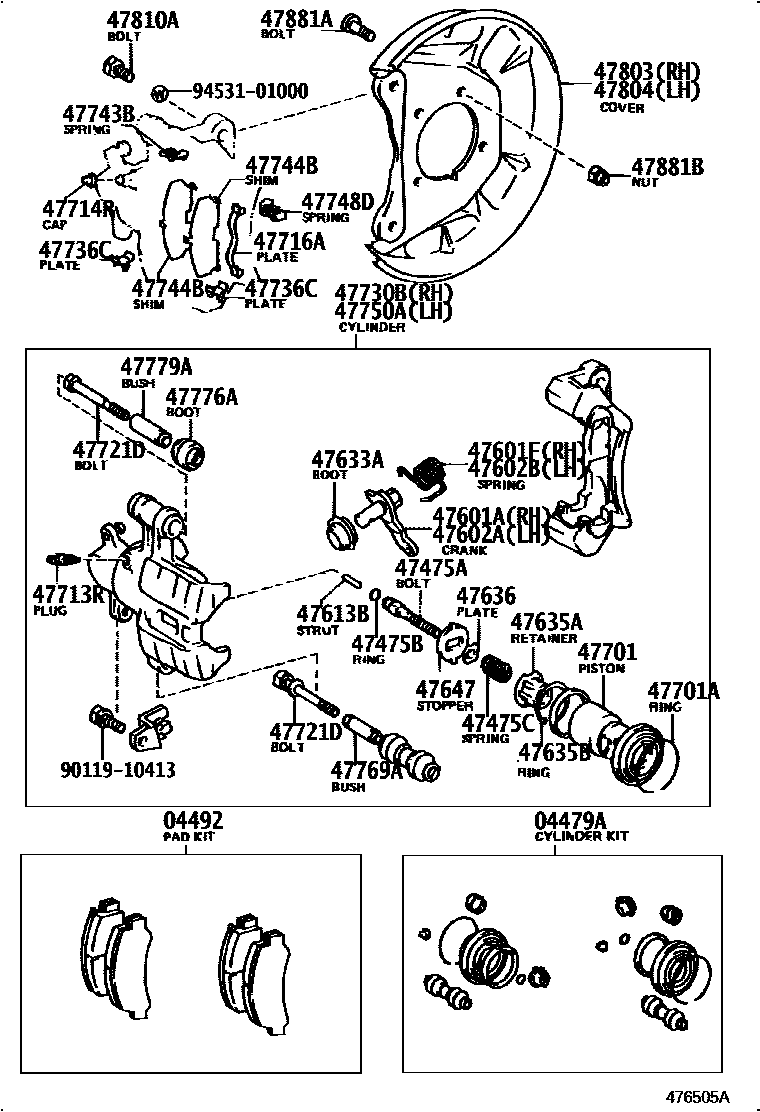

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12110iAE86..APX,GTV198305-198704

04492PAD KIT, DISC BRAKE, REAR

main04492-12030iAE86..APX,GTV198305-198704

sub04492-12031

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iAE86..APX,GTV198305-198704

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iAE86..APX,GTV198305-198704

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iAE86..APX,GTV198305-198704

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12010iAE86..APX,GTV198305-198408

main47601-12011iAE86..APX,GTV198408-198704

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32016iAE86..APX,GTV198305-198408

main90508-32023iAE86..APX,GTV198408-198704

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12010iAE86..APX,GTV198305-198408

main47602-12011iAE86..APX,GTV198408-198704

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32017iAE86..APX,GTV198305-198408

main90508-32024iAE86..APX,GTV198408-198704

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iAE86..APX,GTV198305-198704

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iAE86..APX,GTV198305-198704

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12010iAE86..APX,GTV198305-198704

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-37006iAE86..APX,GTV198305-198704

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iAE86..APX,GTV198305-198704

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010iAE86..APX,GTV198305-198704

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12010iAE86..APX,GTV198305-198704

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-45001iAE86..APX,GTV198305-198704

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAE86..APX,GTV198305-198704

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAE86..APX,GTV198305-198704

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14040iAE86..APX,GTV198305-198704

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iAE86..APX,GTV198305-198704

main90119-08431iAE86..APX,GTV198305-198704

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12230iAE86..APX,GTV198305-198408

sub47730-12231

main47730-12231iAE86..APX,GTV198408-198704

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12020iAE86..APX,GTV198305-198704

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030iAE86..APX,GTV198305-198701

sub47743-12060

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-14030iAE86..APX,GTV198305-198704

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090iAE86..APX,GTV198305-198704

sub47748-12110

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12230iAE86..APX,GTV198305-198408

sub47750-12231

main47750-12231iAE86..APX,GTV198408-198704

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAE86..APX,GTV198305-198704

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iAE86..APX,GTV198305-198704

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAE86..APX,GTV198305-198704

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12010iAE86..APX,GTV198305-198704

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12010iAE86..APX,GTV198305-198704

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10059iAE86..APX,GTV198305-198704

47881ABOLT(FOR DUST COVER)

main42184-22011iAE86..APX,GTV198305-198704

47881BNUT(FOR DUST COVER)

main94181-11000iAE86..APX,GTV198305-198704

9011910413

main90119-10413

9453101000

main94531-01000
