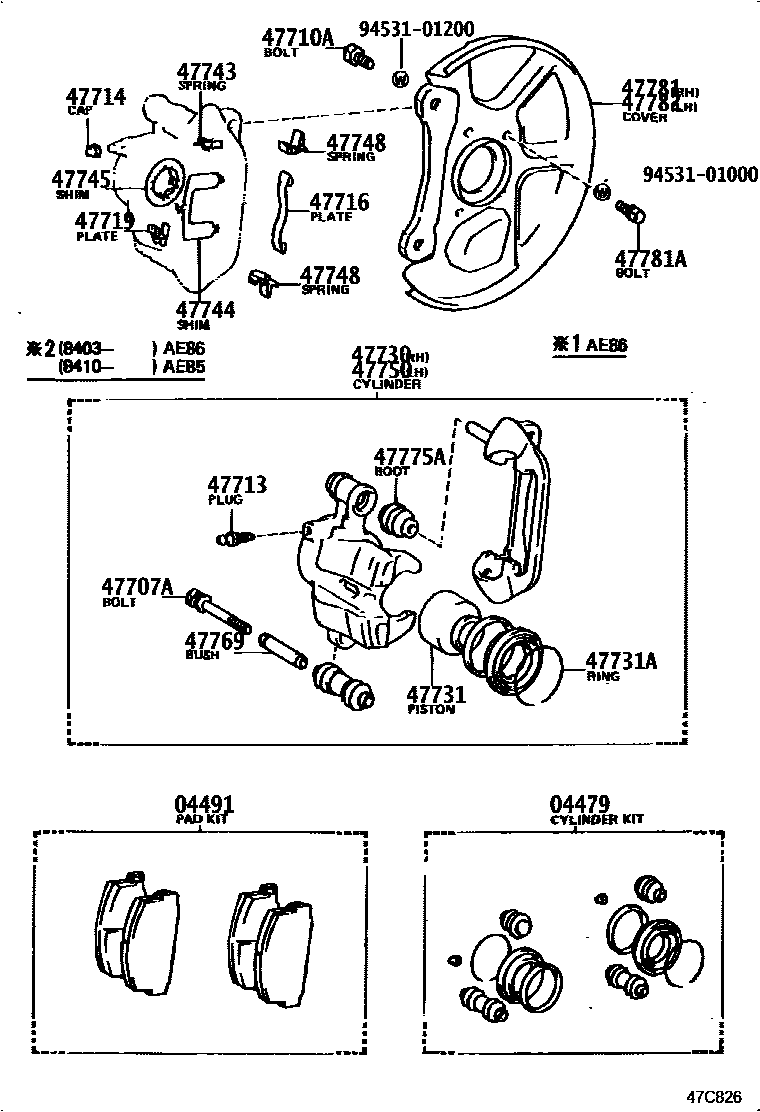

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12100iAE85198305-198704

main04479-14060iAE86198305-198704

04491PAD KIT, DISC BRAKE, FRONT

main04491-12160iAE85198305-198410

main04491-12161iAE85198410-198704

main04491-12190iAE86198305-198704

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08431×2iAE8#198305-198704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064×4iAE86198305-198704

main90101-12332×4iAE85198305-198704

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE8#198305-198704

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE8#198305-198704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14020×2iAE85198305-198704

main47716-14080×2iAE86198305-198704

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010×2iAE8#198305-198701

main47736-12040×4iAE8#198701-198704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12180iAE86198305-198704

main47730-12240iAE85198305-198704

47731PISTON, FRONT DISC BRAKE

main47731-12050×2iAE85198305-198704

main47731-14070×2iAE86198305-198704

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-58001×2iAE85198305-198704

main90522-60004×2iAE86198305-198704

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iAE8#198305-198701

LH

main47748-12050iAE8#198305-198701

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-12040×2iAE85198305-198704

main47744-14050×2iAE86198305-198704

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-12040×2iAE85198410-198704

main47745-14020×2iAE86198403-198704

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-12020×2iAE85198305-198704

RH=UPR,LH=LWR

main47743-14040×2iAE86198305-198704

RH=UPR,LH=LWR

main47748-12060×2iAE85198305-198704

RH=LWR,LH=UPR

main47748-14050×2iAE86198305-198704

RH=LWR,LH=UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12180iAE86198305-198704

main47750-12240iAE85198305-198704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010×2iAE8#198305-198704

47775ABOOT, PIN

main47776-14010×2iAE8#198305-198704

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12080iAE85198305-198704

main47703-12110iAE86198305-198704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-10157×8iAE85198305-198704

main91111-71020×8iAE86198305-198704

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12080iAE85198305-198704

main47704-12110iAE86198305-198704

9453101000

main94531-01000

9453101200

main94531-01200

23 parts on this diagram · 2 diagrams in section
