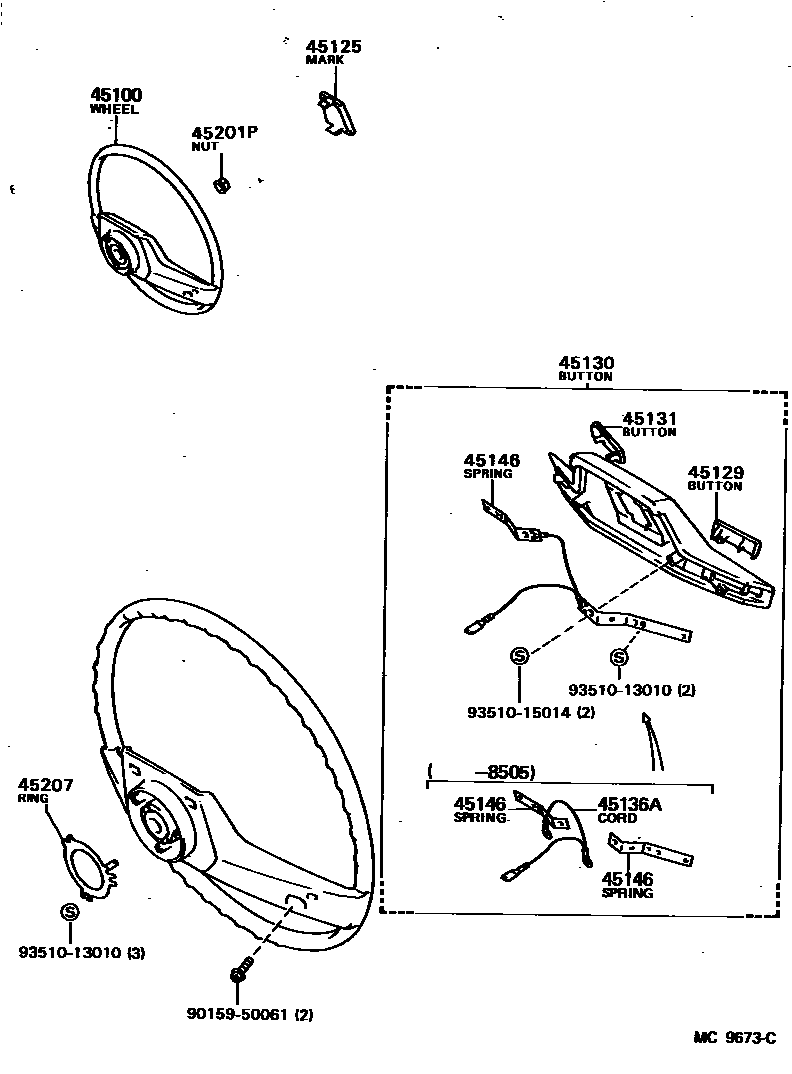

STEERING WHEEL

0001 1 0002 1 0003 1

45100WHEEL ASSY, STEERING

main45100-12300-01iAE86..APX,GTV198305-198505

3-SPOKE,BLACK,BLACK,TRIM2#

main45100-12400-01iAE8#..GT,SE,SR198305-198704

2-SPOKE,BLACK,BLACK,TRIM2#

sub45100-12420

main45100-12410-01iAE85..GL198305-198505

BLACK,BLACK,TRIM2#

main45100-12450iAE86198401-198505

3-SPOKE,LEATHER

main45100-12480-01iAE85..GL198505-198704

2-SPOKE,BLACK,BLACK,TRIM2#

45125MARK, STEERING WHEEL PAD

main45125-12310-01iAE8#..APX,GT,GTV,SR198505-198704

3-SPOKE,BLACK,BLACK,TRIM2#

main45125-12380iAE85..GL198305-198401

main45125-12400iAE8#..GT,SE,SR198305-198704

main45125-12420iAE85..GL198401-198505

main45125-12490iAE85..GL198505-198704

45129BUTTON, HORN, NO.2

main45129-12080-01iAE85..GL198305-198505

BLACK,BLACK,TRIM2#

main45129-12090-01iAE8#..GT,SE,SR198305-198704

BLACK,BLACK,TRIM2#

main45129-12140-01iAE85..GL198505-198704

BLACK,BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-12250-01iAE85..GL198305-198505

BLACK,BLACK,TRIM2#

main45130-12320-01iAE85..GL198505-198704

BLACK,BLACK,TRIM2#

45131BUTTON, HORN, NO.1

main45131-12180-01iAE85..GL198305-198505

BLACK,BLACK,TRIM2#

main45131-12190-01iAE8#..GT,SE,SR198305-198704

BLACK,BLACK,TRIM2#

main45131-12240-01iAE85..GL198505-198704

BLACK,BLACK,TRIM2#

45136PLATE, HORN BUTTON CONTACT

main45136-12110iAE8#..GT,SE,SR198305-198704

main45136-12120iAE86..APX,GTV198305-198505

45136ACORD(FOR HORN CONTACT RING)

main90945-02058iAE85..GL198305-198505

45146SPRING, HORN BUTTON CONTACT

main45146-12090iAE8#..GT,SE,SR198305-198704

main45146-12100×2iAE85..GL198305-198505

main45146-12110iAE85..GL198505-198704

45201PNUT, STEERING WHEEL SET

main90179-12086iAE8#198305-198704

45207RING, HORN CONTACT

main45176-14050iAE86..APX,GTV198305-198401

main45176-20030iAE85..GL198305-198704

9015950061

main90159-50061

9351013010

main93510-13010

9351015014

main93510-15014

13 parts on this diagram · 3 diagrams in section
