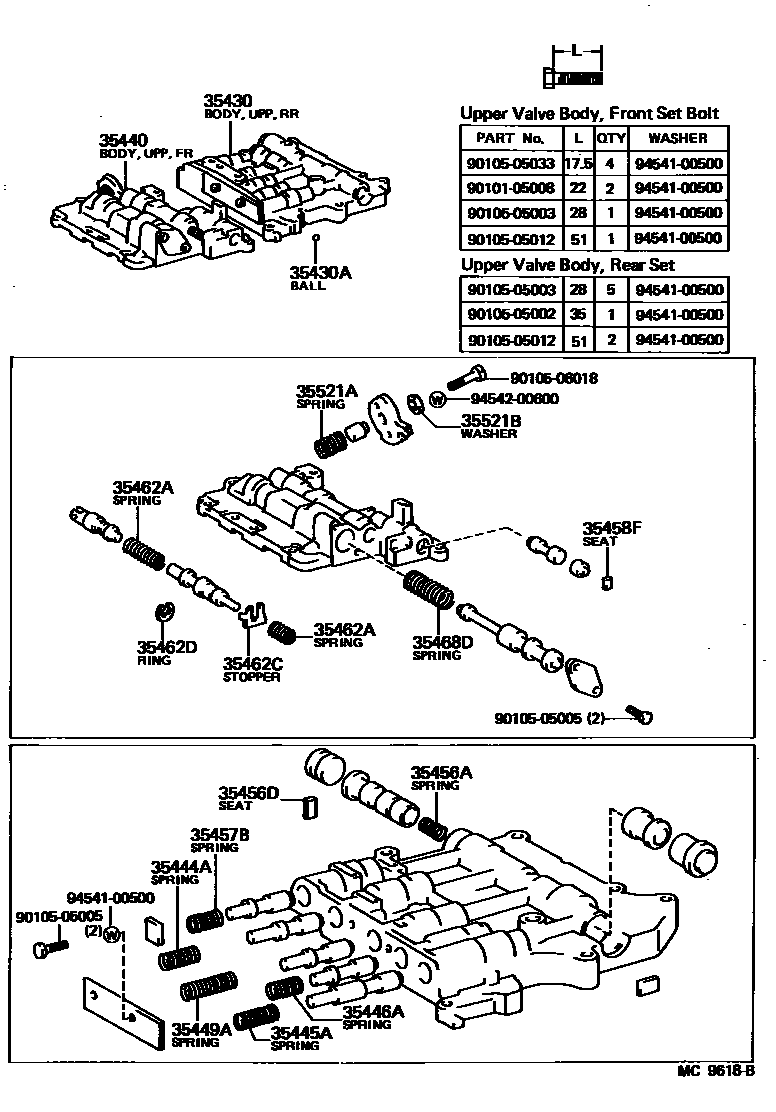

VALVE BODY & OIL STRAINER (ATM)

35430BODY ASSY, REAR UPPER VALVE

main35430-14020i198305-198704

main35430-30120i198505-198704

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×3i198305-198704

sub35495-22020

main90360-06023×6i198305-198704

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010i198305-198605

main35440-14011i198605-198704

main35440-22110i198505-198605

main35440-22111i198605-198704

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725i198505-198704

LWR

main90501-09686i198505-198704

INTERMEDIATE

main90501-11009i198305-198704

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725i198305-198704

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688i198305-198704

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12726×2i198305-198704

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724i198305-198704

main90501-09028i198505-198704

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020i198305-198704

main35493-30030i198505-198704

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09739i198305-198704

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010i198305-198704

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680i198305-198704

main90501-11011i198505-198704

PRIMARY

main90501-12011i198305-198704

35462CSTOPPER, VALVE VIBRATING

main35422-22010i198305-198704

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6i198305-198704

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-19001i198305-198704

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331i198305-198704

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472i198305-198704

9010105008

main90101-05008

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505012

main90105-05012

9010505033

main90105-05033

9010506018

main90105-06018

9454100500

main94541-00500

9454200600

main94542-00600

26 parts on this diagram · 6 diagrams in section
