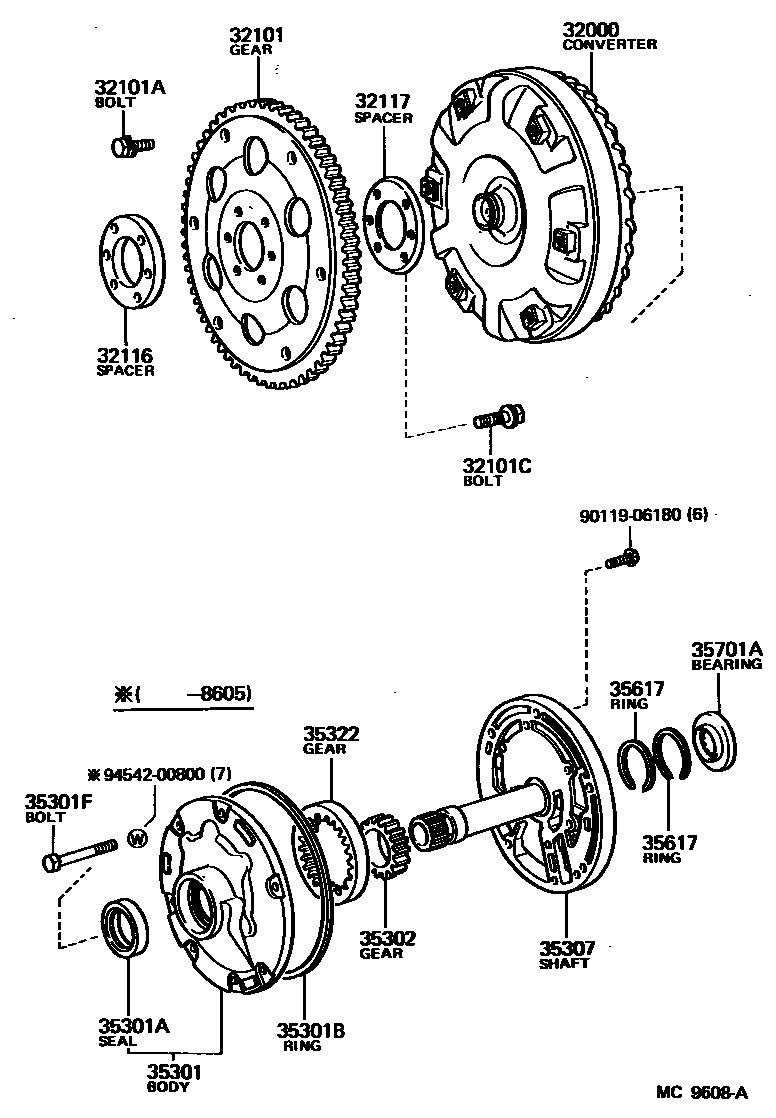

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12070iAE85..4FC198305-198407

main32000-12071iAE85..4FC198407-198704

main32000-12150iAE86..4FC198505-198704

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12030iAE85..4FC198305-198704

main32101-17010iAE86..4FC198505-198704

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iAE85..4FC198305-198505

WHITE

main90109-08113iAE8#..4FC198505-198704

main90119-08223×5iAE85..4FC198305-198505

main90119-08498×5iAE8#..4FC198505-198704

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iAE8#..4FC198305-198704

32116SPACER, DRIVE PLATE, FRONT

main32116-12010iAE85..4FC198305-198704

main32116-17010iAE86..4FC198505-198704

32117SPACER, DRIVE PLATE, REAR

main32117-12010iAE85..4FC198305-198704

main32117-17010iAE86..4FC198505-198704

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iAE8#..4FC198305-198704

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE8#..4FC198312-198704

main90311-38129iAE85..4FC198305-198312

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iAE8#..4FC198305-198704

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042×7iAE8#..4FC198305-198605

main90105-08137×7iAE8#..4FC198605-198704

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iAE8#..4FC198305-198704

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

35307SHAFT SUB-ASSY, STATOR

main35370-14011iAE85..4FC198305-198412

main35370-14012iAE8#..4FC198412-198704

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iAE8#..4FC198305-198704

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iAE8#..4FC198305-198508

main35617-22011×2iAE86..4FC198508-198509

main35617-32010×2iAE86..4FC198509-198704

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iAE8#..4FC198305-198704

9011906180

main90119-06180

9454200800

main94542-00800

17 parts on this diagram · 1 diagram in section
