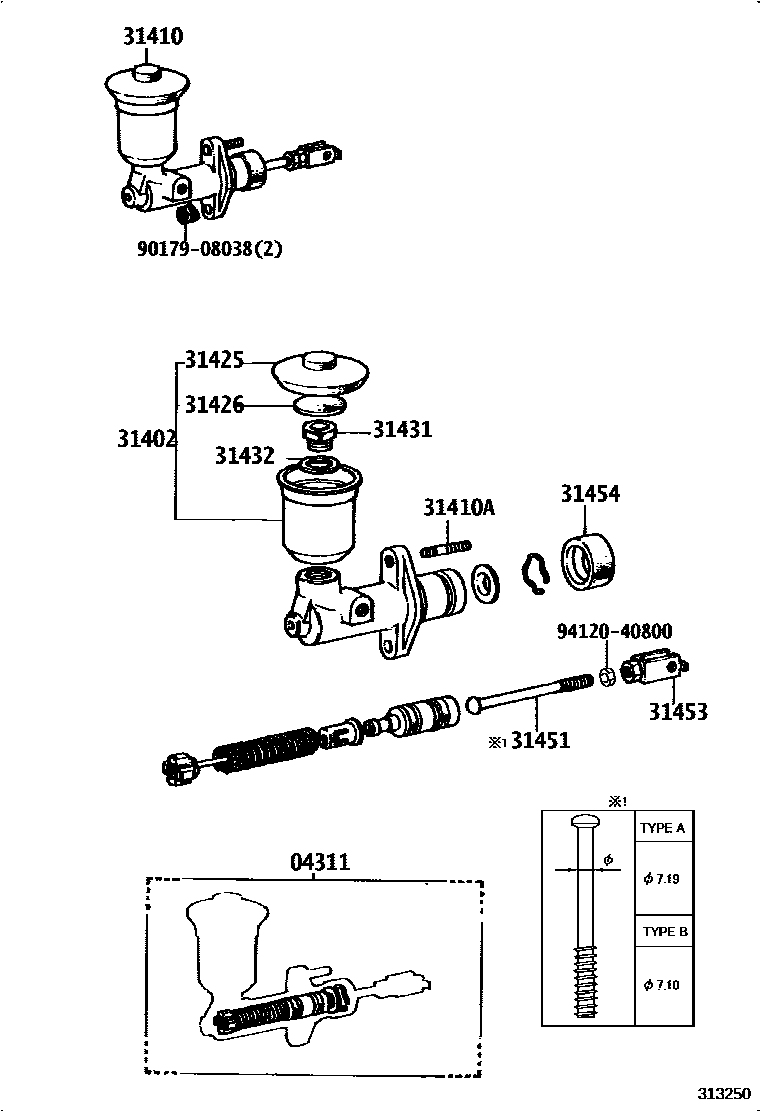

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12020iAE86..5F198305-198611

sub04311-12021

main04311-12040iAE86..5F198611-198704

sub04311-12041

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12010iAE86..5F198305-198704

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12060iAE86..5F198305-198704

sub31410-12061

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08079iAE86..5F198305-198704

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAE86..5F198305-198704

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE86..5F198305-198704

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAE86..5F198305-198704

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAE86..5F198305-198704

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iAE86..5F198305-198611

main31451-22060iAE86..5F198611-198704

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iAE86..5F198305-198610

sub31453-35010

main31453-35010iAE86..5F198610-198704

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE86..5F198305-198704

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
