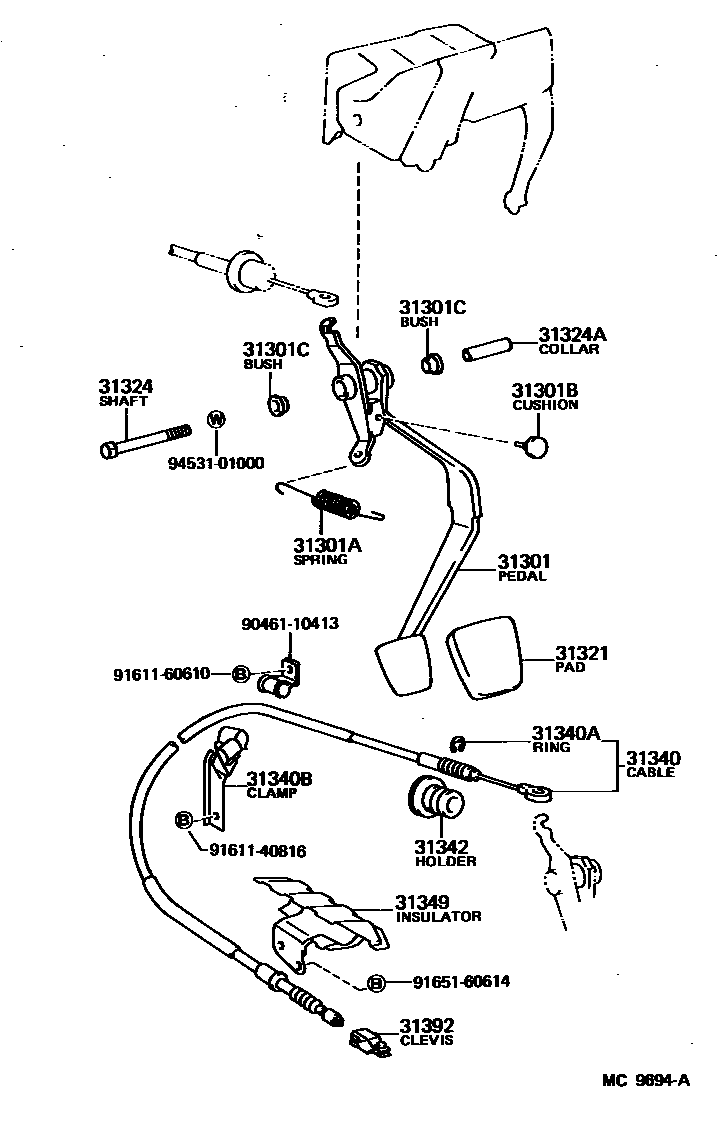

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12230iAE85..5F198305-198704

main31301-12240iAE86..5F198305-198704

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAE8#..5F198305-198704

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAE8#..5F198305-198704

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iAE8#..5F198305-198704

31321PAD, CLUTCH PEDAL

main31321-12030iAE8#..5F198305-198704

31324SHAFT, CLUTCH PEDAL

main90101-10081iAE85..5F198305-198704

main90101-10100iAE86..5F198305-198704

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAE86..5F198305-198704

main90387-10027iAE85..5F198305-198704

31340CABLE ASSY, CLUTCH RELEASE

main31340-19255iAE85..5F198305-198704

sub31340-12210

sub96160-01200

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iAE85..5F198305-198704

31340BCLAMP(FOR CLUTCH RELEASE CABLE)

main90949-01007iAE85..5F198305-198704

31342HOLDER, CLUTCH CABLE, INNER

main31342-12902iAE85..5F198305-198704

31349INSULATOR, CLUTCH CABLE HEAT

main31349-12010iAE85..5F198305-198704

31392CLEVIS, CLUTCH CABLE

main31392-10010iAE85..5F198305-198704

9046110413

main90461-10413

9161140816

main91611-40816

9161160610

main91611-60610

9165160614

main91651-60614

9453101000

main94531-01000

18 parts on this diagram · 2 diagrams in section
