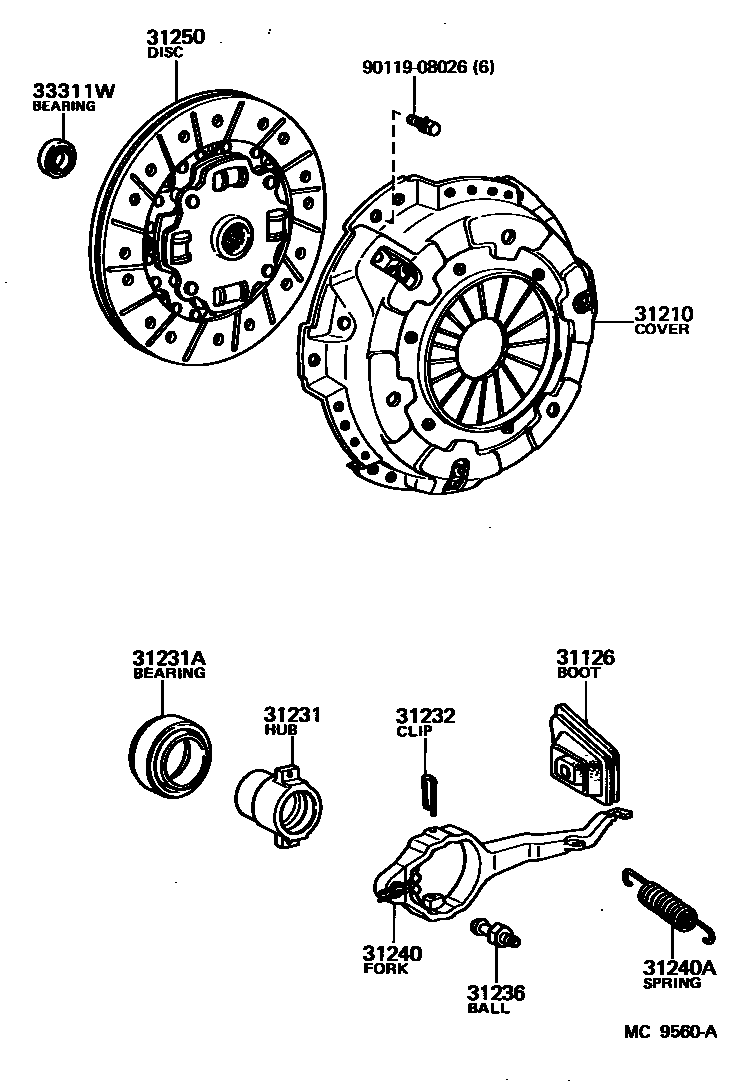

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12040iAE85..5F198305-198704

main31126-20070iAE86..5F198305-198704

31210COVER ASSY, CLUTCH

main31210-12080iAE86..5F198305-198704

main31210-16030iAE85..5F198305-198308

main31210-16031iAE85..5F198308-198605

sub31210-16032

main31210-16120iAE85..5F198605-198704

sub31210-16121

31231HUB, CLUTCH RELEASE BEARING

main31231-12033iAE85..5F198305-198704

main31231-12050iAE86..5F198305-198704

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33004iAE85..5F198305-198704

main90363-40022iAE86..5F198305-198704

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2iAE85..5F198305-198704

main31232-22010×2iAE86..5F198305-198704

31236BALL, RELEASE FORK

main31236-30030iAE85..5F198305-198704

main31236-30060iAE86..5F198305-198704

31240FORK ASSY, CLUTCH RELEASE

main31204-12031iAE85..5F198305-198704

main31204-20080iAE86..5F198305-198704

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iAE85..5F198305-198704

31250DISC ASSY, CLUTCH

main31250-12052iAE85..5F198305-198410

main31250-12053iAE85..5F198410-198704

sub31250-12054

main31250-12180iAE86198305-198404

main31250-12182iAE86198404-198409

main31250-12183iAE86198409-198412

main31250-12184iAE86..5F198412-198704

sub31250-12290

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAE8#..5F198305-198704

9011908026

main90119-08026

11 parts on this diagram · 2 diagrams in section
