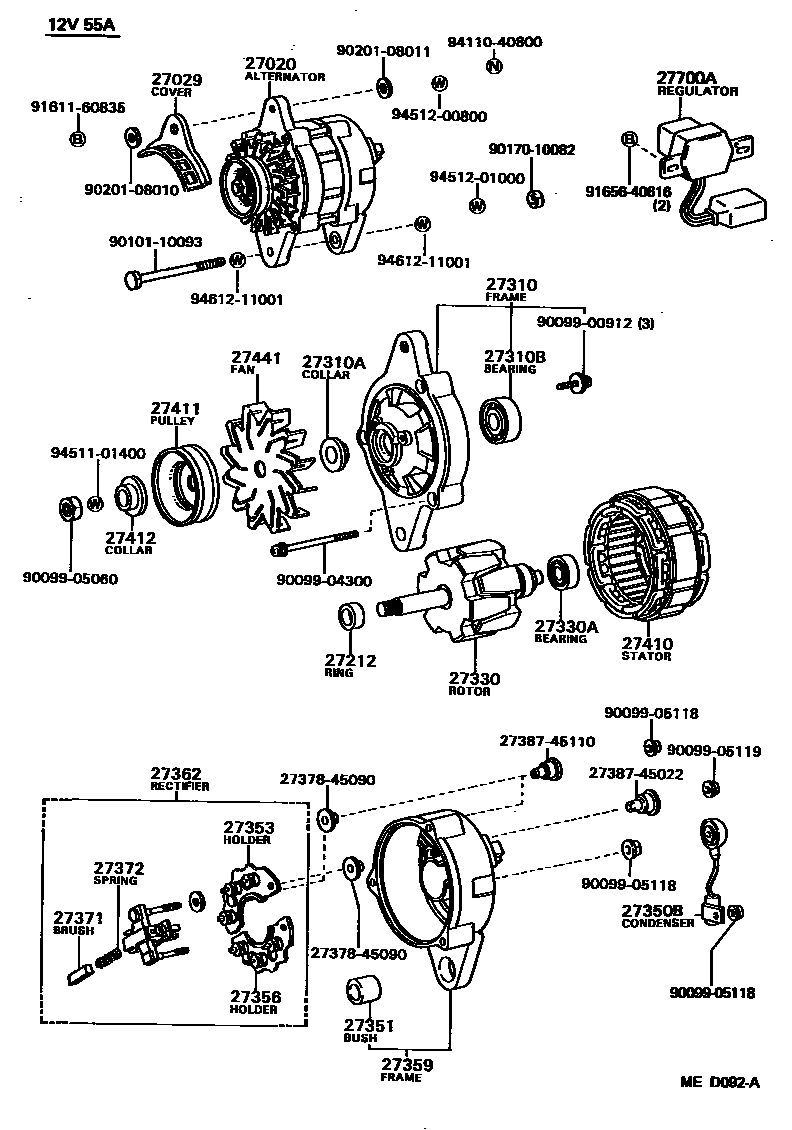

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27020-15140i3AU..AE85198305-198704

main27060-16010i4AGEU..AE86198305-198401

main27060-16011i4AGEU..AE86..4FC198608-198702

12V 60A

main27060-16012i4AGEU..AE86..4FC198702-198704

main27060-16050i4AGEU..AE86198401-198505

12V 60A

main27060-16090i4AGEU..AE86..5F198505-198608

12V 60A

main27060-16091i4AGEU..AE86..5F198608-198704

12V 60A

27029COVER, ALTERNATOR

main27029-15012i3AU..AE85198305-198704

12V 55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-15150i3AU..AE85198604-198704

12V 55A

main27412-45070i3AU..AE85198305-198604

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16010i4AGEU..AE86198305-198401

12V 60A

main27310-16011i4AGEU..AE86..4FC198501-198702

12V 60A

main27310-16080i4AGEU..AE86198401-198501

12V 60A

main27310-16081i4AGEU..AE86..5F198501-198704

12V 60A

sub27310-11110

main27310-16181i4AGEU..AE86..4FC198702-198704

12V 60A

main27310-61023i3AU..AE85198305-198704

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i3AU..AE85198305-198704

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10126i3AU..AE85198305-198704

12V 55A

sub90099-10125

main90099-10141i4AGEU..AE86198305-198309

12V 60A,OD=42

main90099-10152i4AGEU..AE86198309-198501

12V 60A,OD=43

main90099-10159i4AGEU..AE86..5F198702-198704

12V 60A,OD=46

main90099-10178i4AGEU..AE86..4FC198702-198704

12V 60A,OD=46

27330ROTOR ASSY, ALTERNATOR

main27330-10020i4AGEU..AE86..5F198501-198704

12V 60A

main27330-63010i3AU..AE85198305-198704

12V 55A

main27330-63021i4AGEU..AE86198305-198401

12V 60A

main27330-63041i4AGEU..AE86198401-198501

12V 60A

main27330-72100i4AGEU..AE86..4FC198501-198704

12V 60A

sub27330-72101

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i3AU..AE85198305-198704

12V 55A

sub90099-10116

main90099-10140i4AGEU..AE86198305-198704

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i3AU..AE85198305-198704

12V 55A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3AU..AE85198305-198704

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i3AU..AE85198305-198704

12V 55A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i3AU..AE85198305-198704

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15021i3AU..AE85198305-198704

12V 55A

main27359-16010i4AGEU..AE86198305-198401

12V 60A

main27359-16011i4AGEU..AE86..4FC198505-198702

12V 60A

sub27359-16012

sub27384-16380

main27359-16081i4AGEU..AE86..5F198401-198704

12V 60A

main27359-16180i4AGEU..AE86..4FC198702-198704

12V 60A

sub27359-16181

sub27384-16380

27362RECTIFIER ASSY, W/BRUSH

main27362-34021i3AU..AE85198305-198704

12V 55A

sub27362-63011

27371BRUSH, ALTERNATOR

main27371-31011×2i3AU..AE85198305-198704

12V 55A

main27371-63020×2i4AGEU..AE86198305-198704

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3AU..AE85198305-198704

12V 55A

main27372-63020×2i4AGEU..AE86198305-198501

12V 60A

sub27372-87501

main27372-72100×2i4AGEU..AE86198501-198704

12V 60A

27410STATOR ASSY, ALTERNATOR

main27410-43040i3AU..AE85198305-198704

12V 55A

27411PULLEY, ALTERNATOR

main27411-16010i4AGEU..AE86198305-198501

12V 60A

main27411-16011i4AGEU..AE86198501-198505

12V 60A

main27411-16012i4AGEU..AE86..4FC198702-198704

12V 60A

main27411-26111i3AU..AE85198305-198704

12V 55A

main27411-63081i4AGEU..AE86..5F198505-198704

12V 60A

sub27411-16180

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i3AU..AE85198305-198704

12V 55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i3AU..AE85198305-198704

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-15030i3AU..AE85198305-198704

12V 55A

sub27700-15040

main27700-15050i3AU..AE85198305-198704

COLD SPEC & *HAL HEADLAMP

sub27700-15051

main27700-63021i4AGEU..AE86198305-198704

12V 60A

sub27700-70030

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110093

main90101-10093

9017010082

main90170-10082

9020108010

main90201-08010

9020108011

main90201-08011

9161160835

main91611-60835

9165640616

main91656-40616

9411040800

main94110-40800

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001

40 parts on this diagram · 2 diagrams in section
