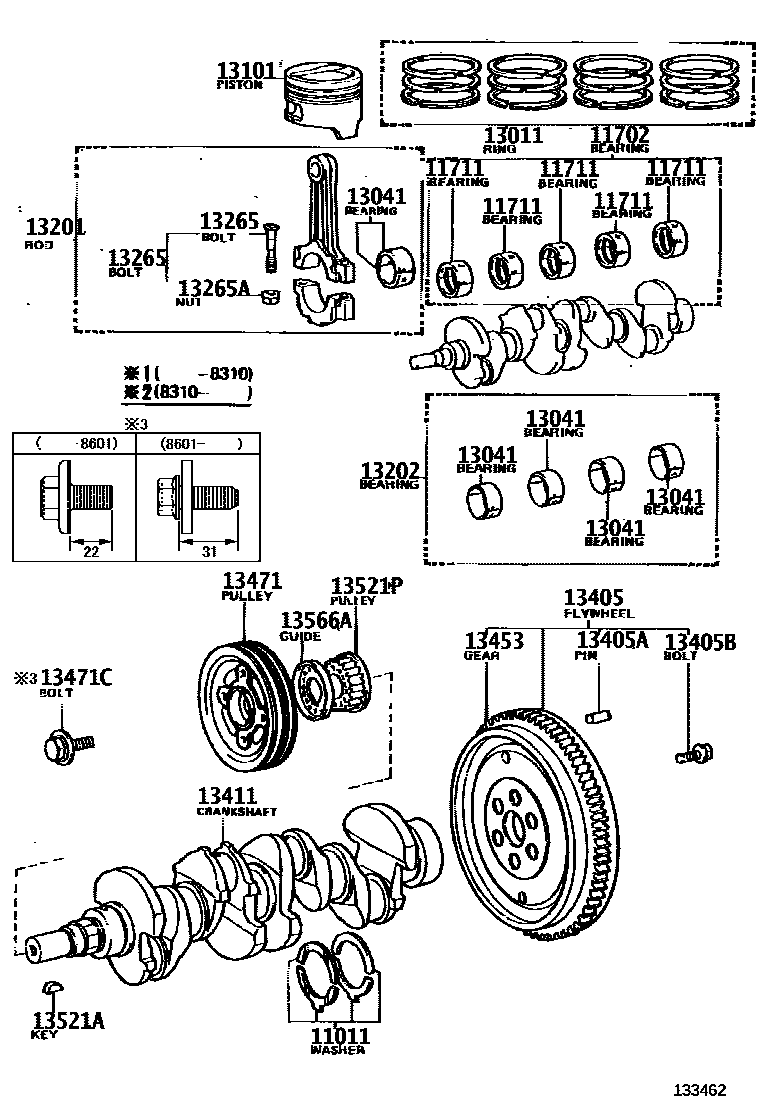

CRANKSHAFT & PISTON

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-15010i198305-198704
sub11011-15020
11702BEARING SET, CRANKSHAFT
main11704-15050i198305-198704
sub11704-16010
11711BEARING, CRANKSHAFT
main11701-15030-01i198305-198403
MARK"1",MARK 1
sub11701-16010
main11701-15030-02i198305-198403
MARK"2",MARK 2
sub11701-16010
main11701-15030-03i198305-198403
MARK"3",MARK 3
sub11701-16010
main11701-15050-01i198305-198704
MARK"1",MARK 1
sub11701-16010
main11701-15050-02i198305-198704
MARK"2",MARK 2
sub11701-16010
main11701-15050-03i198305-198704
MARK"3",MARK 3
sub11701-16010
main11701-15050-04i198608-198704
MARK"4",MARK 4
sub11701-16010
main11701-15050-05i198608-198704
MARK"5",MARK 5
sub11701-16010
main11701-16010-01i198403-198407
MARK"1",MARK 1
main11701-16010-02i198403-198407
MARK"2",MARK 2
main11701-16010-03i198403-198407
MARK"3",MARK 3
13011RING SET, PISTON
main13011-15011i198305-198704
main13011-16070i198305-198704
sub13011-16170
main13013-15010i198305-198704
main13013-16170i198305
main13014-15010i198305-198704
main13015-15010i198305-198704
13041BEARING, CONNECTING ROD
main13041-15011-01i198305-198310
MARK"1",MARK 1
main13041-15011-02i198305-198310
MARK"2",MARK 2
main13041-15011-03i198305-198310
MARK"3",MARK 3
main13041-15030-01i198310-198704
MARK"1",MARK 1
sub13041-15031
main13041-15030-02i198310-198704
MARK"2",MARK 2
sub13041-15031
main13041-15030-03i198310-198704
MARK"3",MARK 3
sub13041-15031
main13041-16010-01i198305-198307
MARK"1",MARK 1
main13041-16010-02i198305-198307
MARK"2",MARK 2
main13041-16010-03i198305-198307
MARK"3",MARK 3
main13041-16040-01i198307-198704
MARK"1",MARK 1
main13041-16040-02i198307-198704
MARK"2",MARK 2
main13041-16040-03i198307-198704
MARK"3",MARK 3
13101PISTON SUB-ASSY, W/PIN
main13101-15020i198305-198704
main13101-16020i198305-198704
main13103-15020i198305-198704
main13103-16020i198305-198704
main13104-15020i198305-198704
main13105-15020i198305-198704
13201ROD SUB-ASSY, CONNECTING
main13201-19016i198305-198306
sub13201-19045
main13201-19035i198305-198307
sub13201-19065
main13201-19045i198306-198310
sub13201-19055
main13201-19055i198310-198704
sub13201-19056
main13201-19065i198307-198704
sub13201-19066
13202BEARING SET, CONNECTING ROD
main13204-15011i198305-198310
main13204-15030i198310-198704
sub13204-15031
main13204-16010i198305-198307
main13204-16040i198307-198704
13265BOLT, CONNECTING ROD
main13265-15020i198307-198704
sub13265-16010
sub90170-09003
main13265-19015i198305-198310
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198307-198704
main90179-08014i198305-198310
13405FLYWHEEL SUB-ASSY
main13405-19135i198305-198704
main13405-19145i198305-198704
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120i198305-198704
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198305-198704
main90105-10076i198305-198704
13411CRANKSHAFT
main13401-16010i198305-198704
main13411-15030i198305-198701
sub13411-15040
main13411-15040i198701-198704
sub13411-15050
13453GEAR, FLYWHEEL RING
main13453-10010i198305-198704
13471PULLEY, CRANKSHAFT
main13407-15013i198305-198508
sub13470-15050
main13470-15050i198508-198704
main13470-16010i198305-198704
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12012i198305-198601
main90119-12101i198601-198608
main90119-12127i198608-198704
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i198305-198608
main95161-10519i198609-198704
13521PPULLEY, CRANKSHAFT TIMING
main13521-15010i198305-198704
main13521-16010i198305-198704
13566AGUIDE, TIMING BELT
main13566-15010i198305-198704
