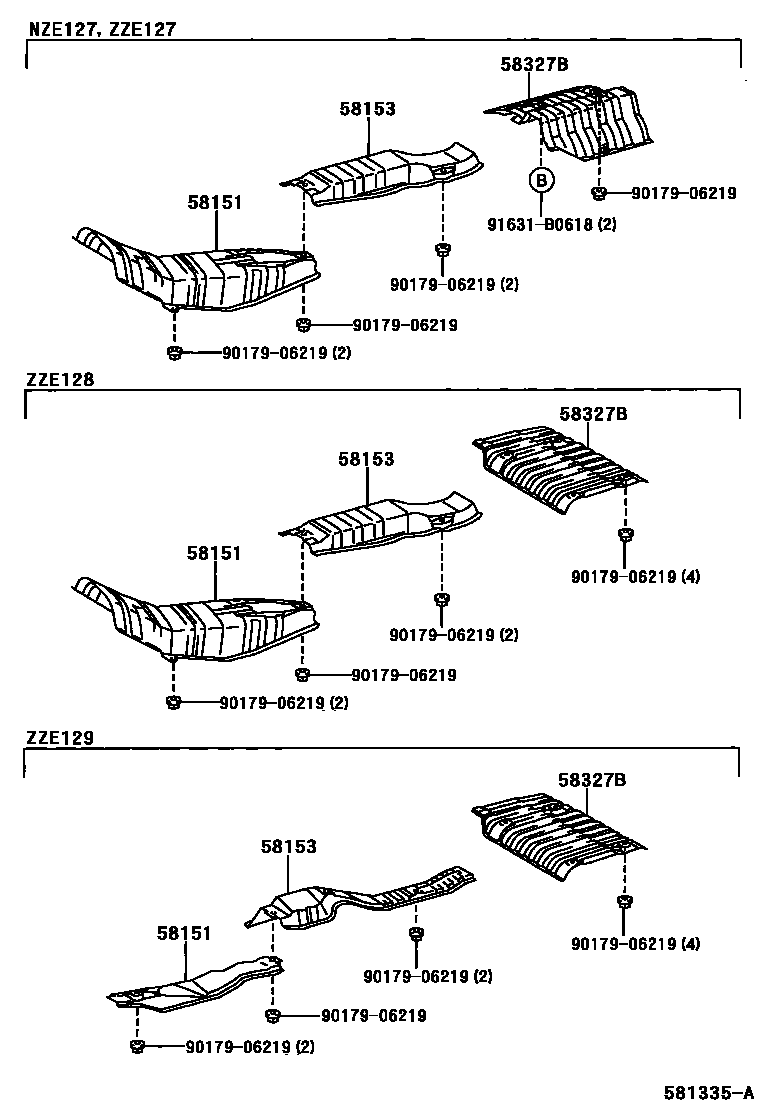

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12190iZZE129200104

main58151-12210iNZE127,ZZE127,128200104-200301

main58151-12220iNZE127,ZZE127,128200301

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12160iZZE129200104

main58153-20141iNZE127,ZZE127,128200104

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-13050iNZE127,ZZE127200104

main58327-13060iZZE128,129200104

9017906219

main90179-06219

91631B0618

main91631-B0618

5 parts on this diagram · 1 diagram in section
