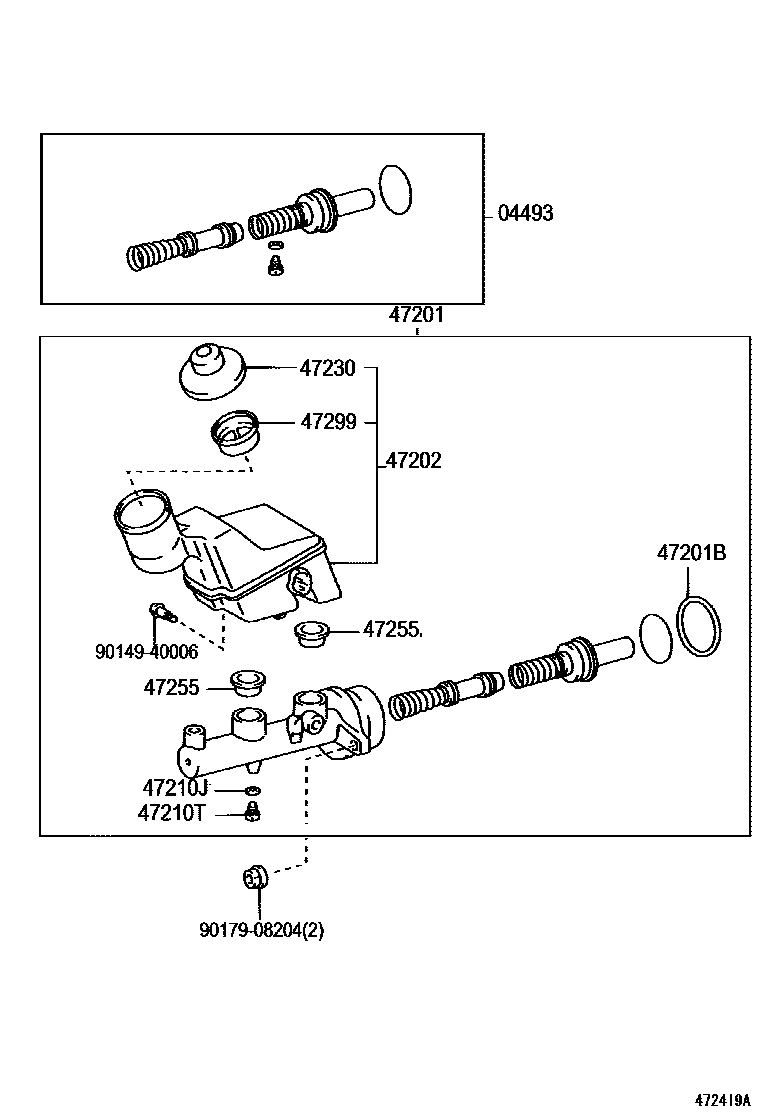

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iNZE127,ZZE12#200104-200404

sub04493-1A030

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-1A330iNZE127,ZZE12#..ATM200104-200404

main47201-1A340iZZE128..MTM200201-200404

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNZE127,ZZE12#200104-200404

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12120iNZE127,ZZE12#..ATM200104-200404

sub47220-12121

sub90149-40021

main47220-12130iZZE128..MTM200201-200404

sub47220-12131

sub90149-40021

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iNZE127,ZZE12#200112-200404

main90430-06104iZZE12#200104-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iNZE127,ZZE12#200104-200404

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iNZE127,ZZE12#200104-200404

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iNZE127,ZZE12#200104-200404

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNZE127,ZZE12#200104-200404

9014940006

main90149-40006

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
