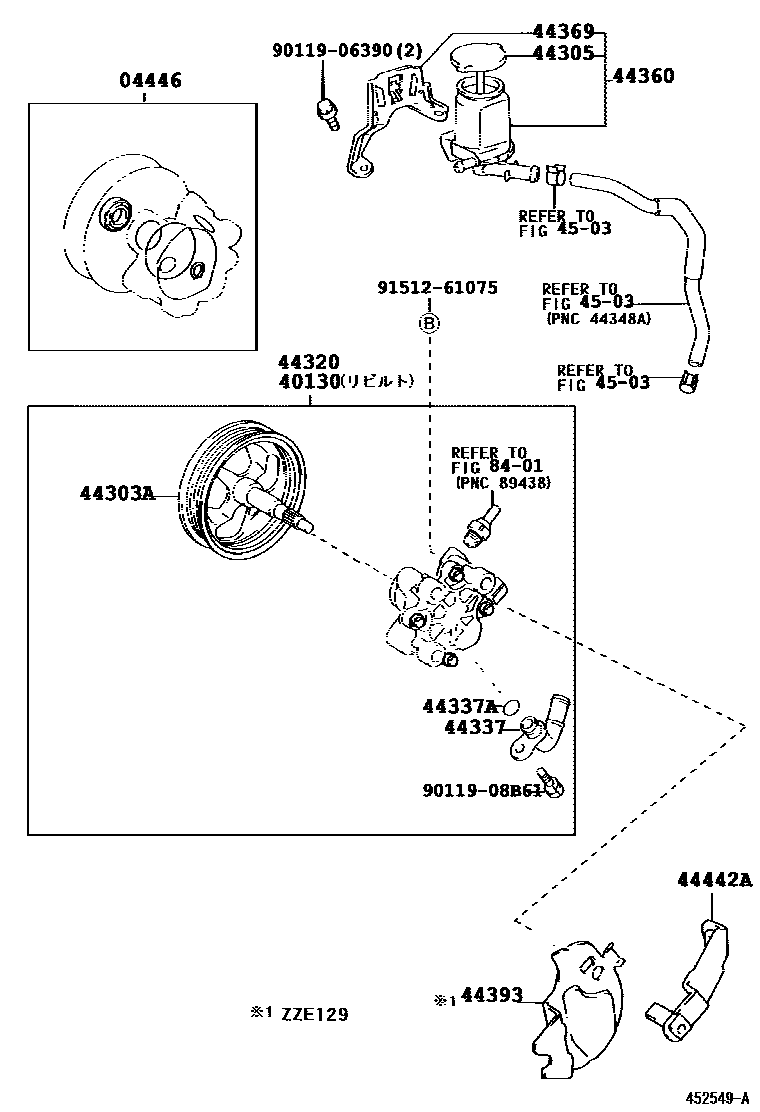

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iZZE12#200104-200404

40130PUMP ASSY,VANE REBUILT

main40130-12540iZZE127,129200104-200404

sub44310-12540

main40130-12550iZZE128200104-200404

sub40130-12570

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-20010iZZE128200104

main44303-32010iZZE127,129200104

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iZZE12#200104

sub44305-28060

44320PUMP ASSY, VANE

main44310-12570iZZE128200104

main44310-13010iZZE127,129200104

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iZZE127,129200104

main44337-48010iZZE128200104

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iZZE12#200104

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12100iZZE12#200104-200404

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE12#200104

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-42010iZZE129200302

main44393-63010iZZE129200104-200302

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE12#200104

4503

8401

9011906390

main90119-06390

9011908B61

main90119-08B61

9151261075

main91512-61075

16 parts on this diagram · 1 diagram in section
