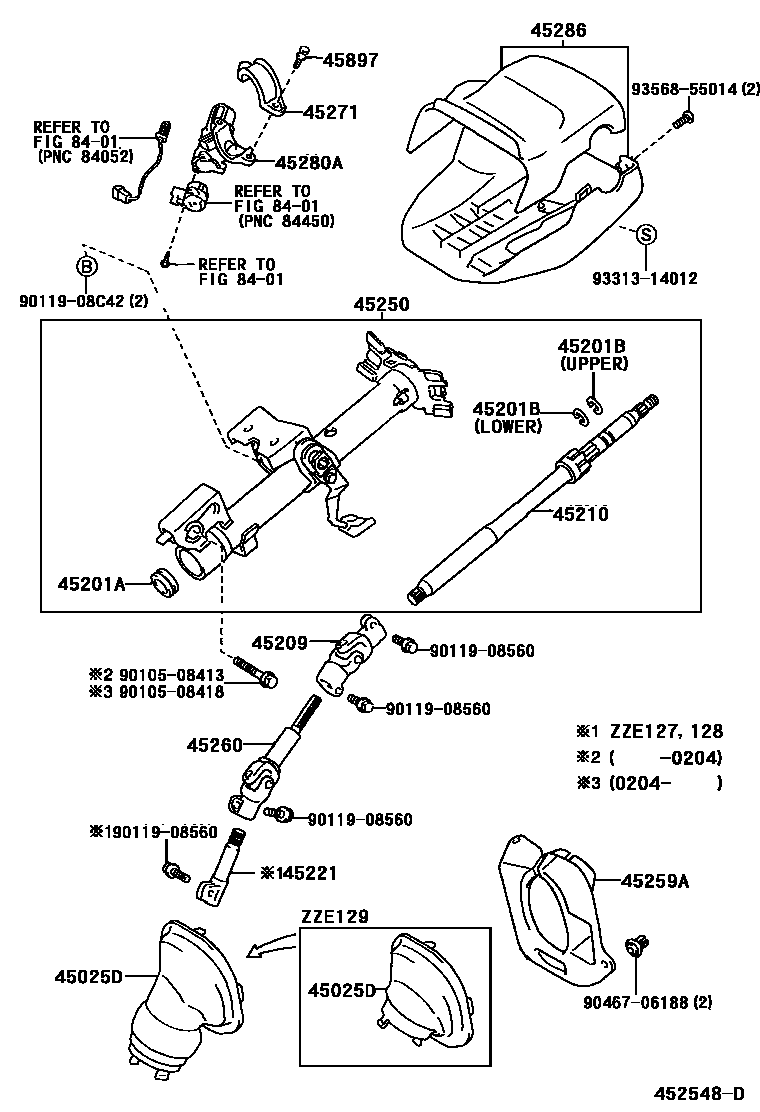

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12220iNZE127200201-200404

main45025-13020iZZE127,128200104-200404

main45025-13030iZZE129200104-200404

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-42010iZZE12#200104-200404

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iZZE12#200104-200404

main90520-17269iZZE12#200104-200404

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12150iNZE127,ZZE12#200104-200404

sub45209-12151

45210SHAFT ASSY, STEERING MAIN

main45210-42020iZZE12#200104-200404

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iNZE127200201-200404

sub45221-12281

main45221-12291iZZE127,128200104-200404

45250COLUMN ASSY, STEERING

main45250-1E192iNZE127200201-200404

main45250-1E200iZZE12#200104-200404

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iNZE127,ZZE127,128200104-200404

main45259-12020iZZE129200104-200404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12460iZZE127,128200104-200404

sub45260-12461

main45260-12470iZZE129200104-200404

main45260-12530iNZE127200201-200404

sub45260-12531

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNZE127,ZZE12#200104-200404

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12400iNZE127200201-200404

main45280-52020iZZE128..MTM200201-200404

main45280-52030iZZE12#..ATM200104-200404

45286COVER, STEERING COLUMN

main45286-12967-C0iZZE128..MTM200202-200204

45897BOLT, STEERING LOCK SET

main45897-12020×2iNZE127,ZZE12#200104-200404

8401

9010508413

main90105-08413

9010508418

main90105-08418

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
