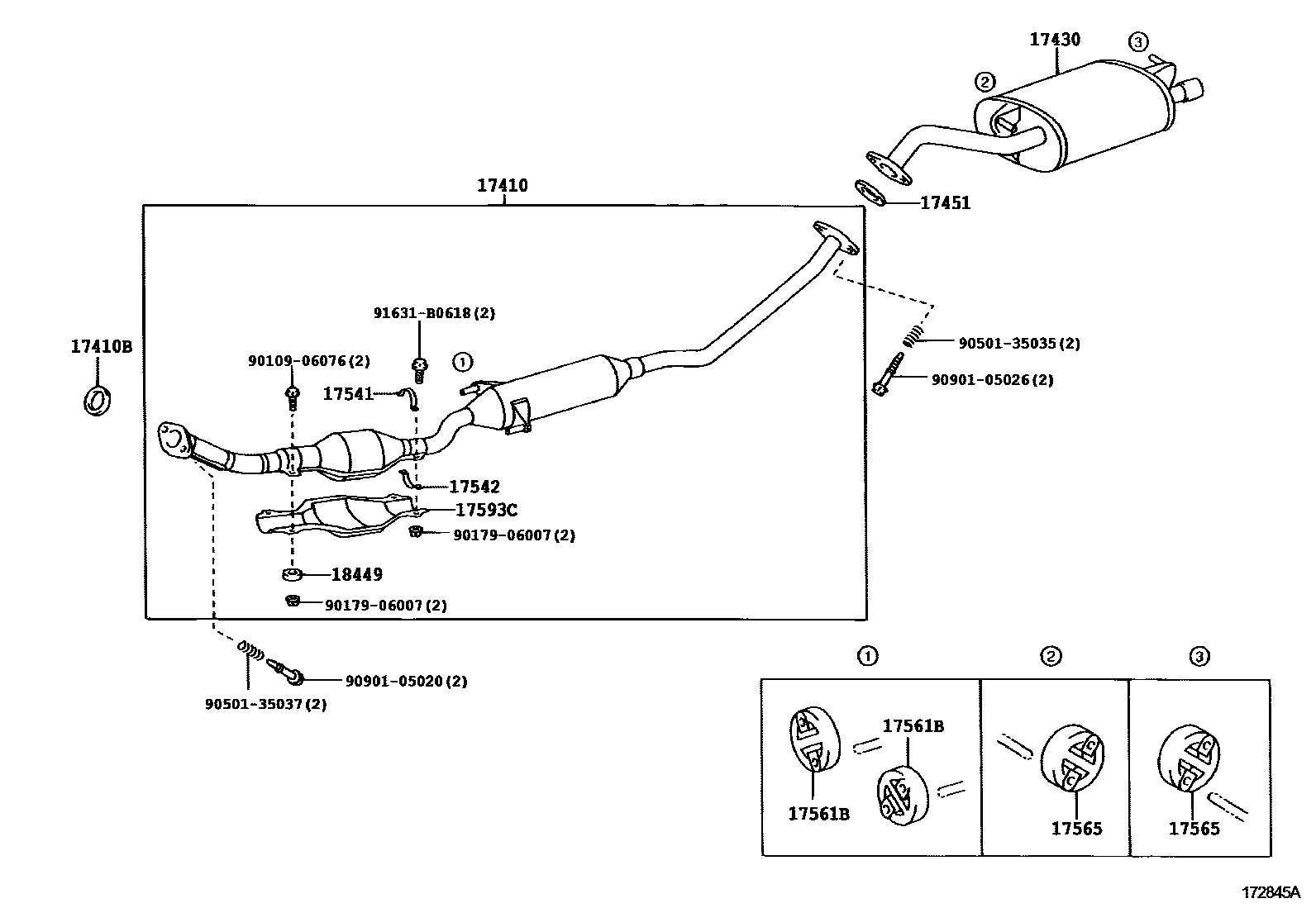

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21220i1NZFE..NZE127200201-200212

sub17410-21223

main17410-21590i1NZFE..NZE127200212

main17410-22200i2ZZGE..ZZE128200104

main17410-22210i1ZZFE..ZZE129200104

main17410-22280i1ZZFE..ZZE127200104

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,1ZZFE..NZE127,ZZE129200104

main17451-22050i2ZZGE..ZZE128200104

main17451-22070i1ZZFE..ZZE127200104

17430PIPE ASSY, EXHAUST, TAIL

main17430-21360i1NZFE..NZE127200201-200212

main17430-21361i1NZFE..NZE127200212

main17430-22270i1ZZFE..ZZE127200104

main17430-22280i2ZZGE..ZZE128200104

main17430-22290i1ZZFE..ZZE129200104

17451GASKET, EXHAUST PIPE

main17451-16030i1ZZFE..ZZE127200104

main17451-20010i2ZZGE..ZZE128200104

main17451-23010i1NZFE..NZE127200104-200212

main17451-64030i1ZZFE..ZZE129200104-200212

sub17451-64031

17541STAY, EXHUST PIPE PROTECTOR, NO.1

main17541-42010i1ZZFE..ZZE127200104-200404

main17541-50010i2ZZGE..ZZE128200104-200404

17542STAY, EXHAUST PIPE PROTECTOR, NO.2

main17542-42010i1ZZFE..ZZE127200104-200404

main17542-50010i2ZZGE..ZZE128200104-200404

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030×2i1NZFE,1ZZFE,2ZZGE..NZE127,ZZE12#200104

sub17565-22030

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040×2i1NZFE,1ZZFE..NZE127,ZZE127,129200104

17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1

main17593-22020i1ZZFE..ZZE127200104

main17593-22070i1ZZFE..ZZE129200104

18449SPACER, CONVERTER PROTECTOR

main18449-74010×2i1ZZFE,2ZZGE..ZZE127,128200104

9010906076

main90109-06076

9017906007

main90179-06007

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

91631B0618

main91631-B0618

17 parts on this diagram · 4 diagrams in section
