CAMSHAFT & VALVE

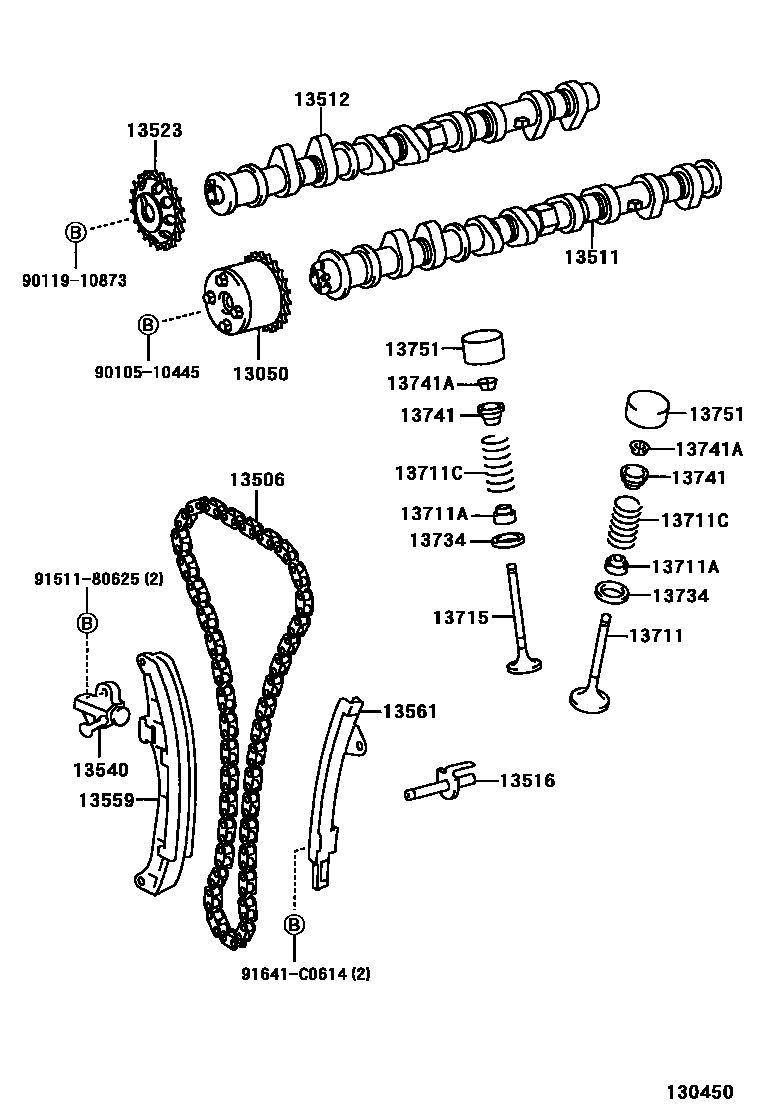

Parts diagram
13050GEAR ASSY, CAMSHAFT TIMING
main13050-21040i200201-200312
sub13050-21041
main13050-22011i200104-200404
sub13050-22012
13506CHAIN SUB-ASSY
main13506-21020i200201-200403
sub13506-21050
sub13506-40010
main13506-22030i200104-200404
main13506-88600i200104-200403
13511CAMSHAFT
main13501-21030i200201-200403
main13501-22040i200104-200210
main13501-22041i200210-200404
sub13501-22042
main13501-29025i200104-200404
13512CAMSHAFT, NO.2
main13502-21030i200201-200401
main13502-21031i200401-200403
main13502-22010i200104-200210
main13502-22011i200210-200404
main13502-29015i200104-200404
13516JET, OIL
main13516-21010i200201-200403
sub13516-21011
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-21020i200201-200312
main13523-22020i200104-200403
13540TENSIONER ASSY, CHAIN, NO.1
main13540-21010i200201-200308
main13540-21020i200308-200403
main13540-22022i200104-200404
main13540-88600i200104-200403
13559SLIPPER, CHAIN TENSIONER
main13559-21010i200201-200403
sub13559-21030
main13559-22011i200104-200404
main13559-88600i200104-200403
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-21010i200201-200403
sub13561-21040
main13561-22020i200104-200404
main13561-88600i200104-200403
13711VALVE, INTAKE
main13711-21010×8i200201-200403
main13711-22030×8i200104-200404
main13711-88600×8i200104-200403
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02092×8i200201-200403
sub90913-02128
main90913-02093×8i200201-200403
main90913-02101×8i200104-200404
main90913-02111×8i200104-200404
main90913-02114×8i200104-200403
main90913-02115×8i200104-200403
13711CSPRING, COMPRESSION(FOR OUTER)
main90905-01049×16i200201-200403
sub90501-27040
13715VALVE, EXHAUST
main13715-21010×8i200201-200403
main13715-22030×8i200104-200404
main13715-88601×8i200104-200203
main13715-88602×8i200203-200403
13734SEAT, VALVE SPRING
main13734-74010×16i200201-200403
main13734-88600×16i200104-200403
13741RETAINER, VALVE SPRING
main13741-22020×16i200201-200203
main13741-22021×16i200203-200403
main13741-88600×16i200104-200403
13741ALOCK, VALVE SPRING RETAINER
main90913-03028×32i200104-200404
main90913-03031×32i200201-200403
main90913-03033×32i200104-200403
13751LIFTER, VALVE
main13751-46030i200201-200403
main13751-46040i200201-200403
main13751-46050i200104-200312
main13751-46060i200104-200312
main13751-46070i200104-200312
main13751-46080i200201-200403
main13751-46090i200104-200312
main13751-46100i200201-200403
main13751-46110i200104-200312
main13751-46120i200104-200312
main13751-46130i200201-200403
main13751-46140i200201-200403
main13751-46150i200201-200403
main13751-46160i200201-200403
main13751-46170i200201-200403
main13751-46180i200104-200312
main13751-46190i200201-200403
main13751-46200i200104-200312
main13751-46210i200104-200312
main13751-46220i200201-200403
main13751-46230i200201-200403
main13751-46240i200201-200403
main13751-46250i200201-200403
main13751-46260i200201-200403
main13751-46270i200104-200312
main13751-46280i200201-200403
main13751-46290i200104-200312
main13751-46300i200201-200403
main13751-46310i200104-200312
main13751-46320i200104-200312
main13751-46330i200201-200403
main13751-46340i200104-200312
main13751-46350i200201-200403
main13751-46360i200104-200312
main13751-46370i200104-200312
9010510445
main90105-10445
9011910873
main90119-10873
9151180625
main91511-80625
91641C0614
main91641-C0614

21 parts on this diagram · 3 diagrams in section
