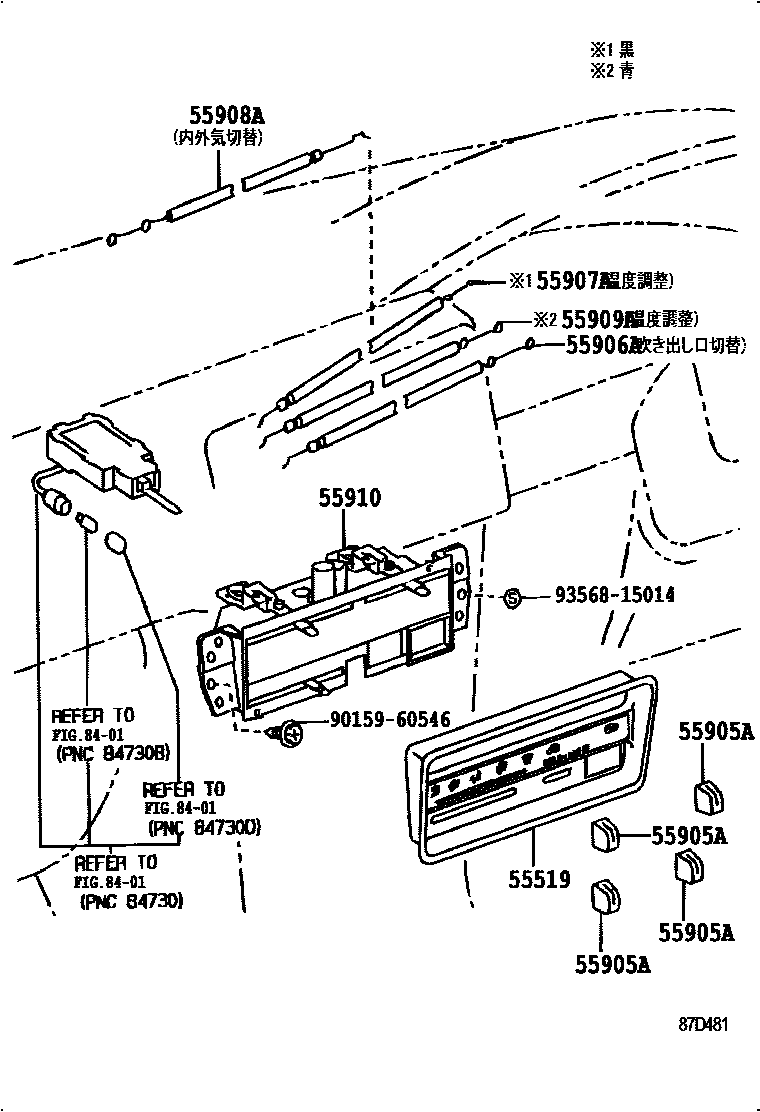

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���-�� �-�����-� 0002 1���-�� �-�����-� 0003 1������� �-�����-� 0004 1������� �-�����-�---���������0005 1������� �-�����-�---�-����� 0006 1������ 0007 1������ 0008 1�-����� ���

55519PLATE, HEATER CONTROL NAME

main55519-12090iAE11#..STOUR,VTOUR199508-199704

55905AKNOB, HEATER CONTROL

main55905-20380iAE111,115..BZT,ZTOUR199508-199704

main55905-89115iAE11#..STOUR,VTOUR199508-199704

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12360iAE11#..STOUR,VTOUR199508-199704

main55906-12390iAE11#..ROSSO,STOUR,VTOUR199704-200207

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12420iAE11#199508-199704

main55907-12470iAE11#..ROSSO,STOUR,VTOUR199704-200207

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12290iAE11#..ROSSO,STOUR,VTOUR199704-200207

main55908-12310iAE11#..STOUR,VTOUR199508-199704

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12280iAE11#..ROSSO,STOUR,VTOUR199704-200207

main55909-12290iAE11#199508-199704

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12620iAE11#..STOUR,VTOUR199508-199704

main55910-12650iAE111,115..BZT,ZTOUR199704-200207

main55910-12660iAE11#..ROSSO,STOUR,VTOUR199704-200207

9015960546

main90159-60546

9356815014

main93568-15014

9 parts on this diagram · 8 diagrams in section
