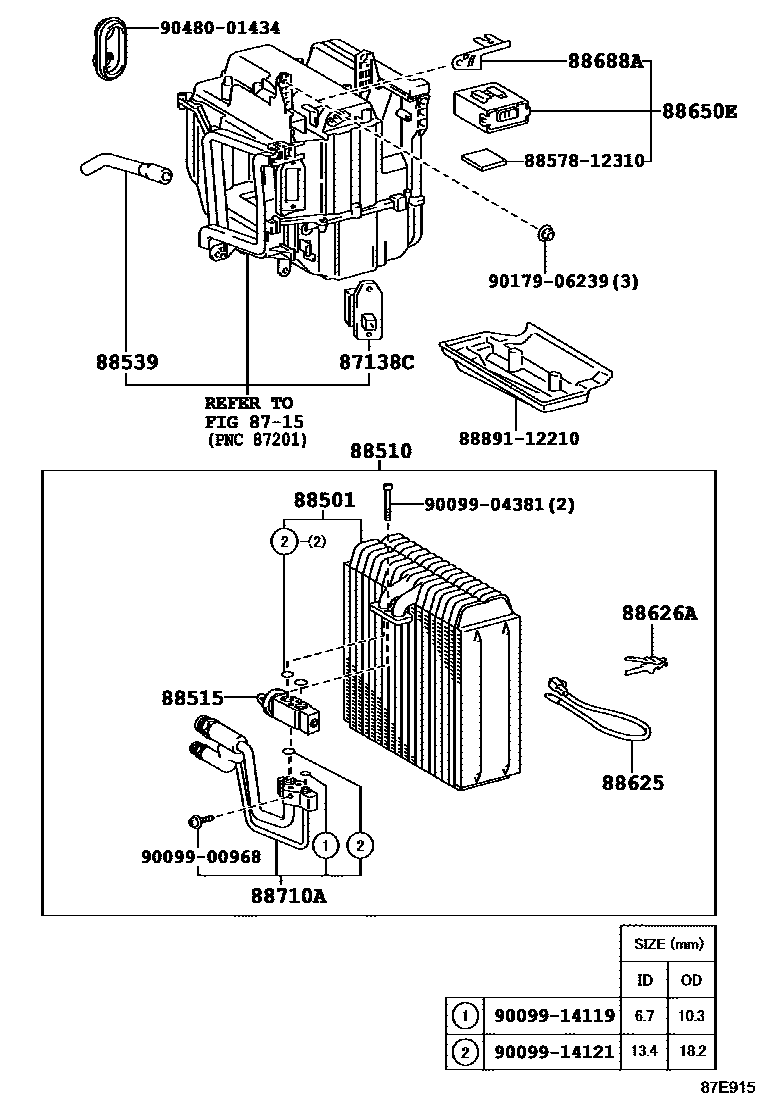

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���-� ������ 0002 1�-� ������

87138CRESISTOR, BLOWER

main87138-12140iAE11#199508-199704

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12391iAE11#..BZT,ROSSO,VTOUR,ZTOUR199704-200207

main88501-12430iAE111,114..STOUR199704-200207

88510UNIT ASSY, COOLER

main88501-12420iAE111,114..STOUR199704-200207

main88510-1A300iAE111,114..STOUR199708-199904

main88510-1A480iAE111,115..BZT,VTOUR,ZTOUR199704-200207

88515VALVE, COOLER EXPANSION

main88515-20100iAE111,114..STOUR199904-200207

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12120iAE11#199508-199704

main88539-12160iAE111,115..BZT,VTOUR,ZTOUR199508-199704

88625THERMISTOR, COOLER, NO.1

main88625-12280iAE11#199704-200207

88626AHOLDER, THERMISTOR

main88626-28010iAE11#199508-199704

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1E040iAE111,114..STOUR199904-200207

main88650-1E050iAE111..BZT199605-199704

main88650-1E090iAE111,115..VTOUR,ZTOUR199508-199704

main88650-1E100iAE111..BZT199605-199704

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-1A090iAE111,114..STOUR199508-199704

88710ATUBE ASSY, AIR CONDITIONER

main88710-12330iAE11#199508-199704

8857812310PAKING, COOLER AIR DUCT

main88578-12310

8889112210PACKING (FOR COOLER)

main88891-12210

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9017906239

main90179-06239

9048001434

main90480-01434

19 parts on this diagram · 2 diagrams in section
