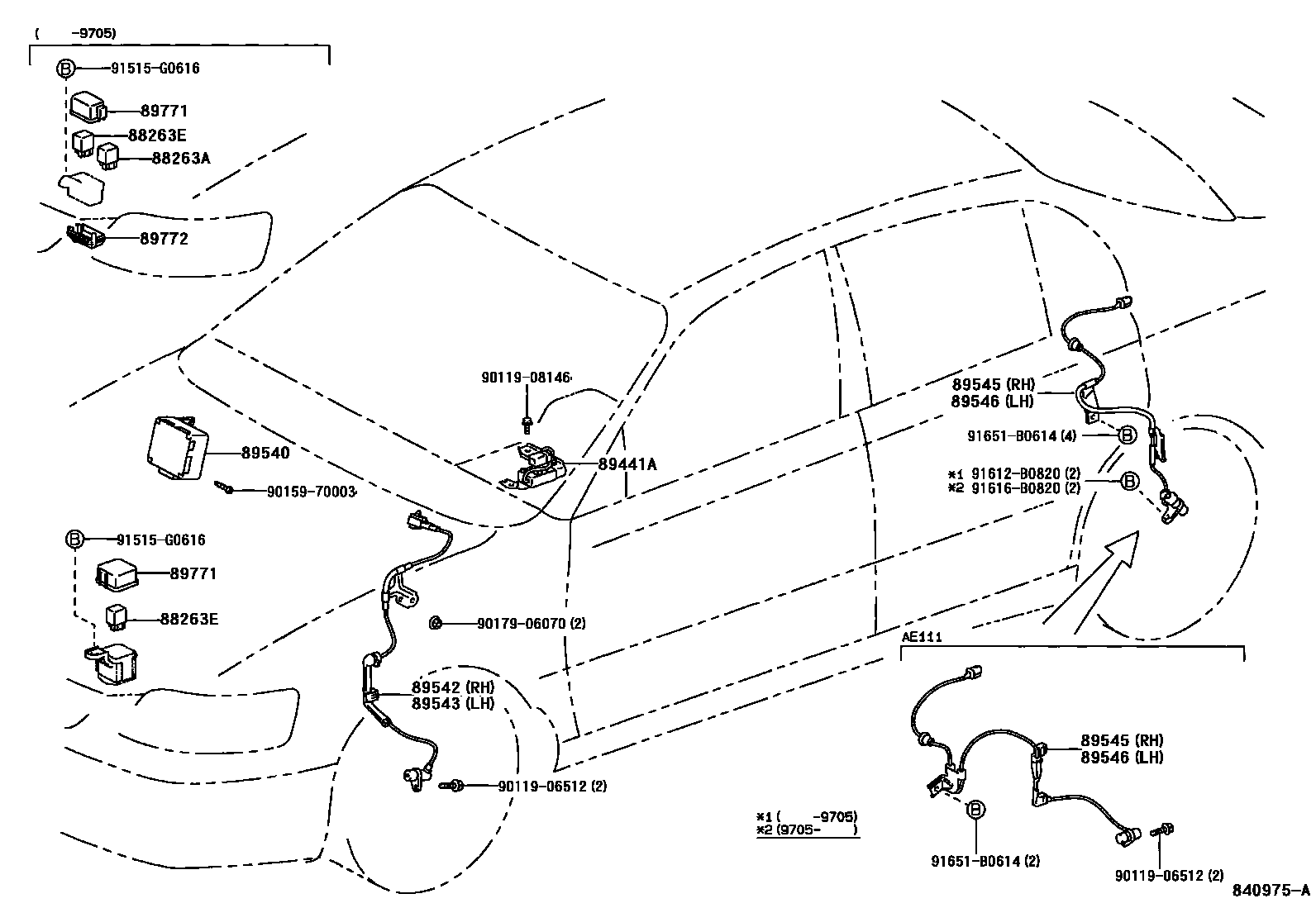

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iAE11#199508-199605

88263ERELAY, SKID CONTROL NO.2

main88263-24030iAE11#199508-200207

89441ASENSOR, DECELERATION

main89440-12050iAE11#199508-199605

main89440-12060iAE114,115199605-200207

89540COMPUTER ASSY, SKID CONTROL

main89540-12220iAE11#199508-199605

main89540-12300iAE111199605-199704

sub89540-12370

main89540-12310iAE114,115199605-199804

main89540-12311iAE114,115199804-200207

main89540-12370iAE111199704-199801

sub89540-12371

main89540-12371iAE111199801-200207

89542SENSOR, SPEED, FRONT RH

main89542-12040iAE11#199508-200207

89543SENSOR, SPEED, FRONT LH

main89543-12040iAE11#199508-200207

89545SENSOR, SPEED, REAR RH

main89545-12030iAE114,115199508-200207

main89545-12040iAE111199605-200207

89546SENSOR, SPEED, REAR LH

main89546-12030iAE114,115199508-200207

main89546-12040iAE111199605-200207

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iAE11#199508-199704

main89771-13010iAE11#199704-200207

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iAE11#199508-199704

9011906512

main90119-06512

9011908146

main90119-08146

9015970003

main90159-70003

9017906070

main90179-06070

91515G0616

main91515-G0616

91612B0820

main91612-B0820

91616B0820

main91616-B0820

91651B0614

main91651-B0614

18 parts on this diagram · 1 diagram in section
