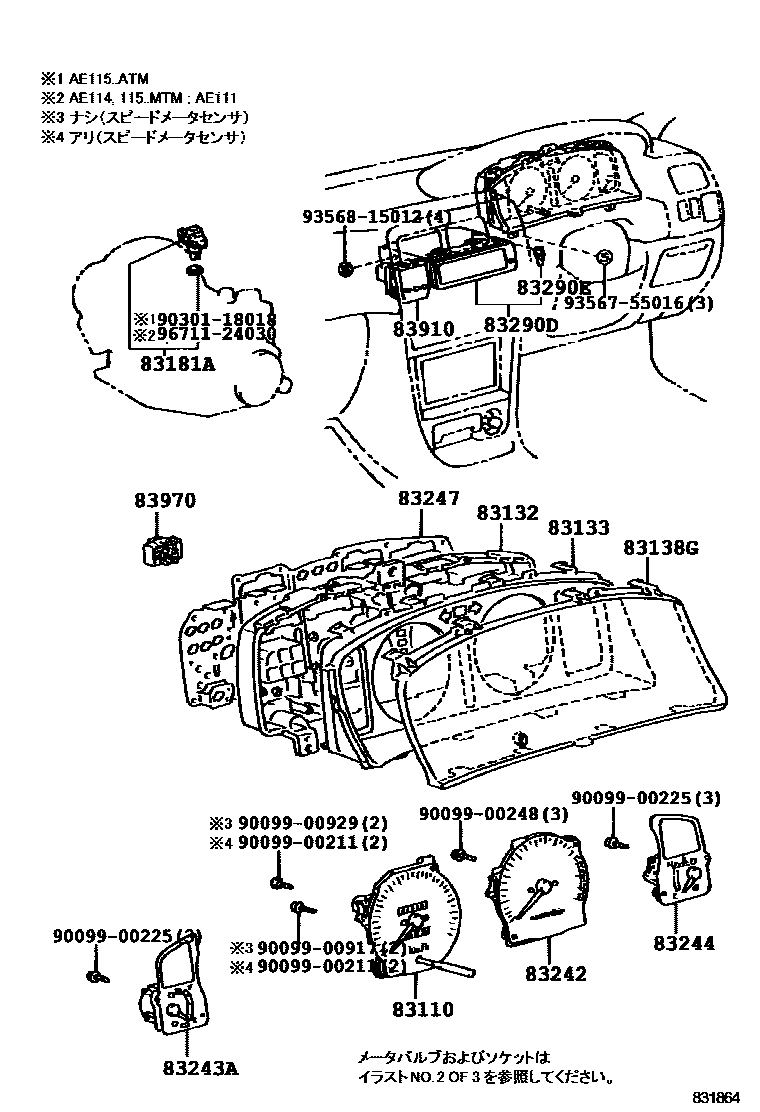

METER

0001 1��(�����) 0002 1��(�����) 0003 1����� & ����:��(�����) 0004 1����� & ����:��(�����) 0005 1��(���-���-� ���)

83110SPEEDOMETER ASSY

main83110-1H231iAE111..STOUR..5F;AE114..STOUR..4FC199704-200207

main83110-1H241iAE114..STOUR..5F;AE111..STOUR..4FC199704-200207

main83110-1H290iAE114..4FC;AE111..(STOUR,ZTOUR)..5F199508-199704

main83110-1H291iAE111..5F;AE114..4FC199704-200207

main83110-1H300iAE115;AE114..5F;AE111..(STOUR,ZTOUR)..4FC199508-199704

main83110-1H301iAE115;AE114..5F;AE111..(ROSSO,STOUR,ZTOUR)..4FC199704-200207

main83220-12010iAE111..BZT199605-199704

main83220-12011iAE111..BZT199704-200207

83132CASE, COMBINATION METER

main83132-1A710iAE111..(STOUR,ZTOUR)..5F199605-199704

main83132-1A730iAE115;AE114..5F199508-199704

main83132-1A750iAE114,115..5F;AE111..BZT..5F199605-199704

main83132-1E060iAE114..4FC199508-199704

main83841-12770iAE111,115..4FC199704-200207

main83841-12780iAE111..6F;AE114,115..5F199704-200207

main83841-12790iAE114..4FC199704-200207

main83841-12800iAE111..5F199704-200207

main83841-1A720iAE111..STOUR..5F199704-199711

main83841-1A721iAE111..STOUR..5F199711-199804

main83841-1A722iAE111..STOUR..5F199804-200207

main83841-1A730iAE111..STOUR..4FC199704-199711

main83841-1A731iAE111..STOUR..4FC199711-199804

main83841-1A732iAE111..STOUR..4FC199804-200207

main83841-1A740iAE114..5F199704-199711

main83841-1A741iAE114..5F199711-199804

main83841-1A742iAE114..STOUR..5F199804-200207

main83841-1A750iAE114..4FC199704-199711

main83841-1A751iAE114..4FC199711-199804

main83841-1A752iAE114..STOUR..4FC199804-200207

83133PLATE, COMBINATION METER, NO.1

main83133-1H350iAE11#..4FC199508-199704

main83133-1H370iAE11#..5F199508-199704

main83811-12630iAE111,115..(BZT,ZTOUR)..4FC199704-200207

main83811-12640iAE111,115..MTM..(BZT,ZTOUR)199704-200207

main83811-12700iAE111,114..STOUR..4FC199704-200207

main83811-12720iAE111,114..STOUR..5F199704-200207

main83811-12790iAE11#..(ROSSO,STOUR,VTOUR)..4FC199704-200207

main83811-1E040iAE11#..(ROSSO,STOUR,VTOUR)..5F199704-200207

83138GGLASS, COMBINATION METER

main83138-1A210iAE11#199508-199704

main83852-12700iAE11#199704-200207

83181ASENSOR, SPEEDOMETER

main83181-12010iAE115..4FC199508-200207

main83181-12020iAE111..4FC;AE111..BZT..5F199605-200207

main83181-12050iAE114,115..5F199508-200207

83242TACHOMETER ASSY, ENGINE

main83242-1H410iAE11#199508-199704

main83881-12030iAE111..BZT199605-199704

main83881-12110iAE114,115..4FC199605-199704

main83881-12770iAE115;AE111..ROSSO,STOUR199704-200207

main83881-12790iAE114;AE111..ZTOUR199704-200207

main83881-12820iAE111..BZT199704-200207

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1A810iAE11#..4FC199508-199605

main83243-1A830iAE11#..5F199508-199605

main83882-12030iAE111..BZT199605-199704

main83882-12110iAE11#..STOUR,VTOUR,ZTOUR199605-199704

main83882-12700iAE111..STOUR..5F199704-200207

main83882-12700iAE114..STOUR199704-200207

main83882-12770iAE114,115199704-199711

main83882-12771iAE114,115199711-199804

main83882-12772iAE11#..ROSSO,STOUR,ZTOUR199804-200207

main83882-12800iAE111..STOUR,ZTOUR199704-199711

main83882-12801iAE111..STOUR,ZTOUR199711-199804

main83882-12820iAE111..BZT199704-199711

main83882-12821iAE111..BZT199711-200207

main83882-1A730iAE111..STOUR..4FC199704-200207

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-1E330iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main83883-12030iAE111..BZT199605-200207

main83883-12770iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-200207

83247PLATE, METER CIRCUIT

main83247-1K070iAE114..4FC199508-199605

main83247-1K110iAE115;AE114..5F199508-199605

main83861-12110iAE115..4FC199605-199704

main83861-12150iAE111..(STOUR,ZTOUR)..5F199605-199704

main83861-12160iAE111..4FC199605-199704

sub83861-12110

main83861-12170iAE114..4FC199605-199704

main83861-12210iAE114,115..5F;AE111..BZT..5F199605-199704

sub83861-12110

main83861-12770iAE115;AE114..5F;AE111..4FC,6F199704-199711

main83861-12771iAE115;AE114..5F;AE111..4FC,6F199711-200207

sub83861-12772

main83861-12772iAE115..4FC199804-200207

main83861-12780iAE114,115..5F199804-200207

main83861-12790iAE111..5F;AE114..4FC199704-199711

main83861-12791iAE111..5F;AE114..4FC199711-199804

main83861-12792iAE114..4FC199804-200207

main83861-12800iAE111..5F199804-200207

main83861-12810iAE111..(ROSSO,STOUR,ZTOUR)..4FC199804-200207

main83861-1A720iAE111..STOUR..5F199704-199711

main83861-1A721iAE111..STOUR..5F199711-199804

main83861-1A722iAE111..STOUR..5F199804-200207

main83861-1A730iAE111..STOUR..4FC199704-199711

main83861-1A731iAE111..STOUR..4FC199711-199804

main83861-1A732iAE111..STOUR..4FC199804-200207

main83861-1A740iAE114..5F199704-199711

main83861-1A741iAE114..5F199711-199804

main83861-1A742iAE114..STOUR..5F199804-200207

main83861-1A750iAE114..4FC199704-199711

main83861-1A751iAE114..4FC199711-199804

main83861-1A752iAE114..STOUR..4FC199804-200207

83290DMETER ASSY, ACCESSORY

main83290-12010iAE11#199508-199704

83290EBULB, ACCESSORY METER

main90077-01001iAE11#199508-199704

sub90010-07007

83910CLOCK ASSY

main83910-12520iAE11#199508-199704

83970BUZZER ASSY, REVERSE WARNING

main83970-12040iAE111..6F199704-200207

main83970-20010iAE11#..4FC199508-200207

9009900211

main90099-00211

9009900225

main90099-00225

9009900248

main90099-00248

9009900917

main90099-00917

9009900929

main90099-00929

9030118018

main90301-18018

9356755016

main93567-55016

9356815012

main93568-15012

9671124030

main96711-24030

22 parts on this diagram · 5 diagrams in section
