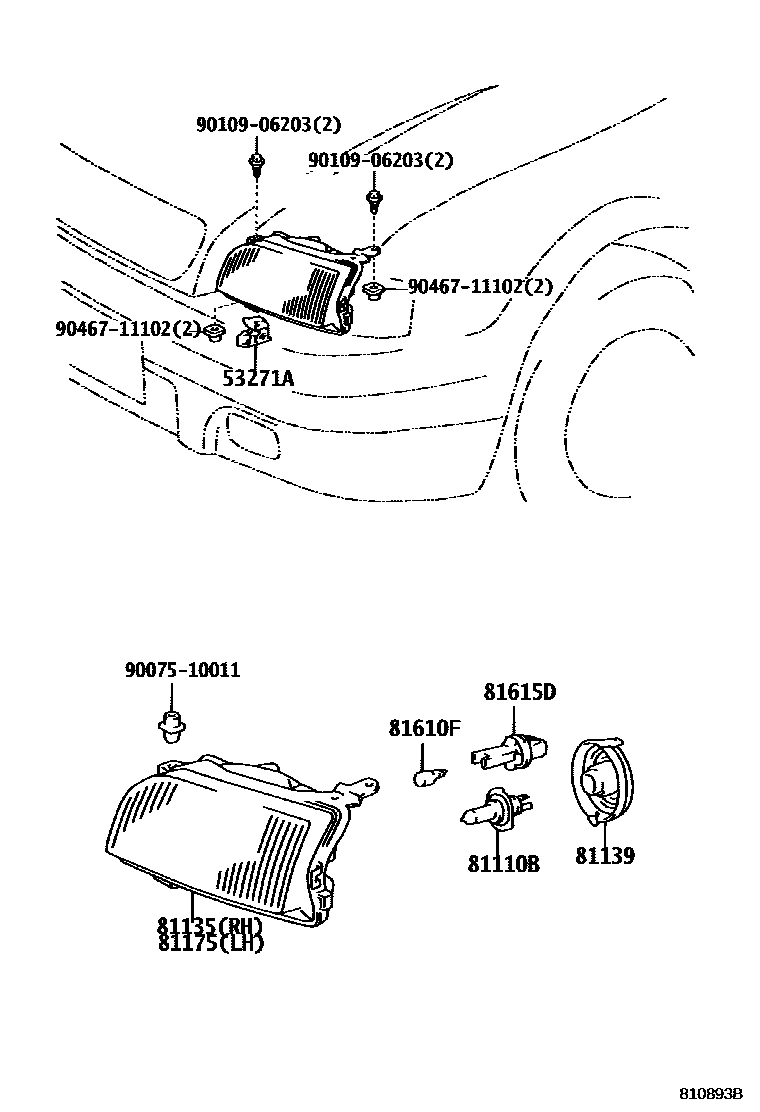

HEADLAMP

0001 1 0002 1 0003 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iAE11#199508-199704

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2iAE11#199704-200207

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-13120iAE11#199508-199704

main81130-13140iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main81130-13150iAE111..BZT199704-200207

main81130-13200iAE111,114..ROSSO199804-200207

81139COVER, HEADLAMP SOCKET

main90075-65002×2iAE11#199508-199704

81175UNIT ASSY, HEADLAMP, LH

main81170-13120iAE11#199508-199704

main81170-13140iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main81170-13150iAE111,114..STOUR199904-200207

main81170-13200iAE111,114..ROSSO199804-200207

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iAE11#199508-199704

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2iAE11#199508-199704

9007510011

main90075-10011

9010906203

main90109-06203

9046711102

main90467-11102

10 parts on this diagram · 3 diagrams in section
