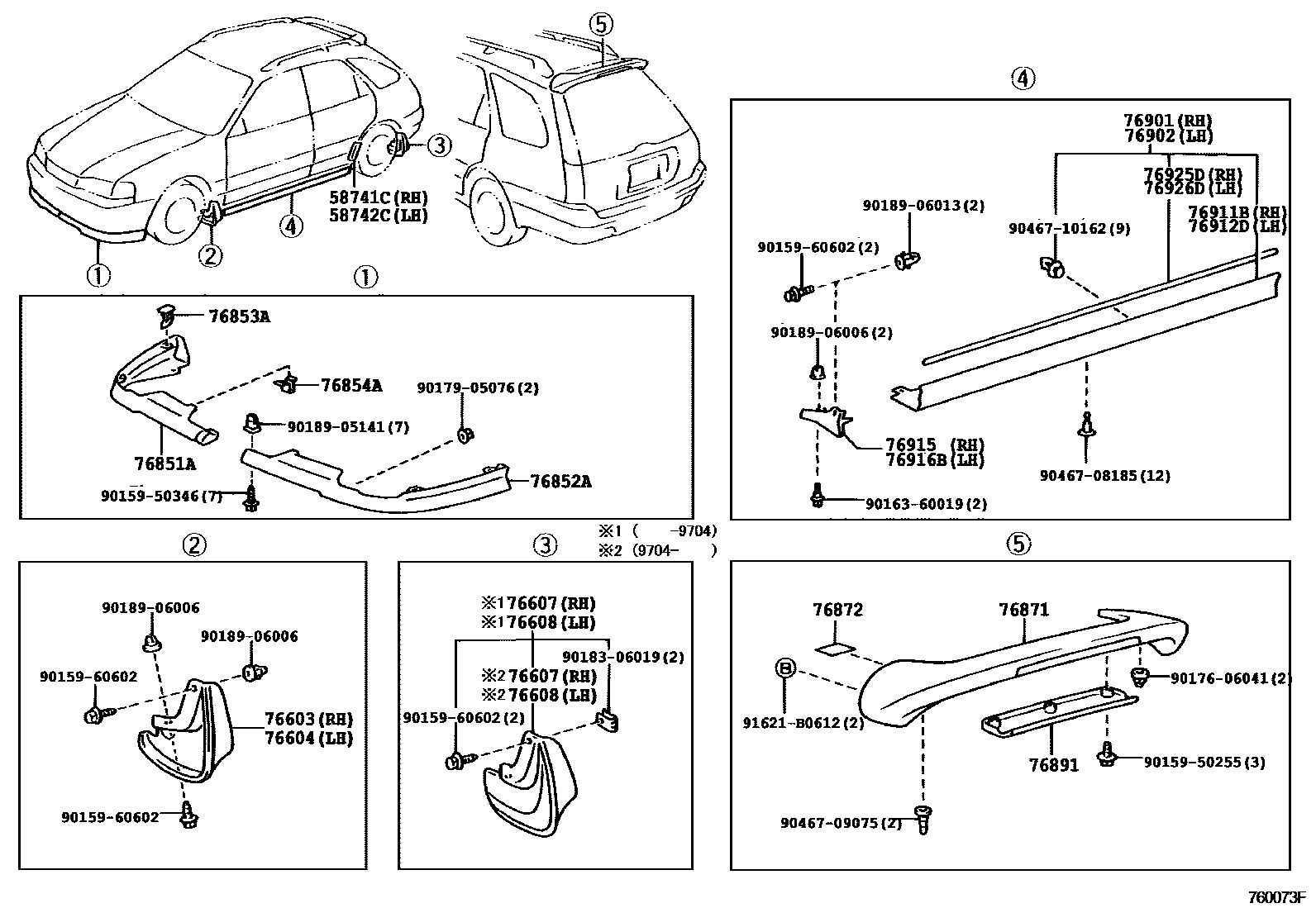

MUDGUARD & SPOILER

58741CPROTECTOR, QUARTER PANEL, RH

main58741-12130iAE11#199508-200207

58742CPROTECTOR, QUARTER PANEL, LH

main58742-12120iAE11#199508-200207

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12171-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76621-12171-B3iAE11#..STOUR,ZTOUR199904-200207

BL.SILVER ME,2AN ,2DF

main76621-12171-B3iAE11#..STOUR,VTOUR,ZTOUR199704-199904

BL.SILVER ME,2AN ,2DE ,2DF

main76621-12171-B4iAE11#..STOUR,VTOUR,ZTOUR199704-199804

SILVER ME,199 ,2DH

main76621-12171-B4iAE11#..ROSSO,STOUR,ZTOUR199804-200207

SILVER ME,199

main76621-12171-C0iAE11#..ROSSO,ZTOUR199904-200207

BLACK METALLIC,205

main76621-12171-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

RED MM,3K4

main76621-12171-D2iAE111,114..ROSSO199804-199808

RED,3M7

main76621-12171-D3iAE111,114..ROSSO199904-199910

SUPER RED II,3E5

main76621-12171-G4iAE11#..STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76621-12171-J1iAE11#..ROSSO,STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

main76621-12181iAE11#..ROSSO,STOUR,VTOUR199704-200207

main76621-19275-A0iAE11#..STOUR,VTOUR,ZTOUR199508-199609

SUPER WHITE 2,040

sub76621-19276

main76621-19275-B2iAE11#..STOUR,VTOUR,ZTOUR199508-199609

SILVER PEARL ME.,2AF ,2AL ,2AM

sub76621-19276

main76621-19275-B2iAE111..BZT199605-199609

SILVER PEARL ME.,2AL

sub76621-19276

main76621-19275-B3iAE11#199508-199609

BLUE SILVER ME.,2AN

sub76621-19276

main76621-19275-B3iAE111,115..ZTOUR199608-199704

sub76621-19276

main76621-19275-B4iAE11#199605-199609

SILVER ME,199

sub76621-19276

main76621-19275-C0iAE111..BZT199605-199609

BLACK METALLIC,205

sub76621-19276

main76621-19275-G0iAE11#..STOUR,VTOUR,ZTOUR199605-199609

DK GREEN MICA,6M1

sub76621-19276

main76621-19276-A0iAE11#..STOUR,VTOUR,ZTOUR199609-199704

SUPER WHITE 2,040

sub76621-12171

main76621-19276-B2iAE111..BZT199609-199705

SILVER PEARL ME.,2AF ,2AL ,2AM

sub76621-12171

main76621-19276-B2iAE111..BZT199609-199705

SILVER PEARL ME.,2AL

sub76621-12171

main76621-19276-B3iAE11#..4FC,5F199609-199705

BLUE SILVER ME.,2AN

sub76621-12171

main76621-19276-B4iAE11#..4FC,5F199609-199705

SILVER ME,199

sub76621-12171

main76621-19276-C0iAE111..BZT199609-199705

BLACK METALLIC,205

sub76621-12171

main76621-19276-G0iAE11#..STOUR,VTOUR,ZTOUR199609-199705

DK GREEN MICA,6M1

sub76621-12171

main76621-19285iAE11#199508-199609

sub76621-19286

main76621-19286iAE11#..STOUR,VTOUR199609-199704

sub76621-12181

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12171-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76622-12171-B3iAE11#..STOUR,ZTOUR199904-200207

BL.SILVER ME,2AN ,2DF

main76622-12171-B3iAE11#..STOUR,VTOUR,ZTOUR199704-199904

BL.SILVER ME,2AN ,2DE ,2DF

main76622-12171-B4iAE11#..ROSSO,STOUR,ZTOUR199804-200207

SILVER ME,199

main76622-12171-B4iAE11#..STOUR,VTOUR,ZTOUR199704-199804

SILVER ME,199 ,2DH

main76622-12171-C0iAE11#..ROSSO,ZTOUR199904-200207

BLACK METALLIC,205

main76622-12171-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

RED MM,3K4

main76622-12171-D2iAE111,114..ROSSO199804-199808

RED,3M7

main76622-12171-D3iAE111,114..ROSSO199904-199910

SUPER RED II,3E5

main76622-12171-G4iAE11#..STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76622-12171-J1iAE11#..ROSSO,STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

main76622-12181iAE11#..ROSSO,STOUR,VTOUR199704-200207

main76622-19275-A0iAE11#..STOUR,VTOUR,ZTOUR199508-199609

SUPER WHITE 2,040

sub76622-19276

main76622-19275-B2iAE111..BZT199605-199609

SILVER PEARL ME.,2AL

sub76622-19276

main76622-19275-B2iAE11#..STOUR,VTOUR,ZTOUR199508-199609

SILVER PEARL ME.,2AF ,2AL ,2AM

sub76622-19276

main76622-19275-B3iAE111,115..ZTOUR199608-199704

sub76622-19276

main76622-19275-B3iAE11#199508-199609

BLUE SILVER ME.,2AN

sub76622-19276

main76622-19275-B4iAE11#199605-199609

SILVER ME,199

sub76622-19276

main76622-19275-C0iAE111..BZT199605-199609

BLACK METALLIC,205

sub76622-19276

main76622-19275-G0iAE11#..STOUR,VTOUR,ZTOUR199605-199609

DK GREEN MICA,6M1

sub76622-19276

main76622-19276-A0iAE11#..STOUR,VTOUR,ZTOUR199609-199704

SUPER WHITE 2,040

sub76622-12171

main76622-19276-B2iAE111..BZT199609-199705

SILVER PEARL ME.,2AL

sub76622-12171

main76622-19276-B2iAE111..BZT199609-199705

SILVER PEARL ME.,2AF ,2AL ,2AM

sub76622-12171

main76622-19276-B3iAE11#..4FC,5F199609-199705

BLUE SILVER ME.,2AN

sub76622-12171

main76622-19276-B4iAE11#199609-199705

SILVER ME,199

sub76622-12171

main76622-19276-C0iAE111..BZT199609-199705

BLACK METALLIC,205

sub76622-12171

main76622-19276-G0iAE11#..STOUR,VTOUR,ZTOUR199609-199705

DK GREEN MICA,6M1

sub76622-12171

main76622-19285iAE11#199508-199609

sub76622-19286

main76622-19286iAE11#..STOUR,VTOUR199609-199704

sub76622-12181

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12440iAE11#..ROSSO,STOUR,VTOUR199704-200207

main76625-12470-A0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76625-12470-A0iAE111,114..STOUR199904-200207

main76625-12470-A0iAE111,114..STOUR199801-199904

main76625-12470-B1iAE11#..STOUR,VTOUR,ZTOUR199704-200207

SILVER ME,199

main76625-12470-B1iAE111,114..STOUR199904-200207

main76625-12470-B1iAE111..BZT199704-199804

SILVER ME,199 ,2DH

main76625-12470-B1iAE111,114..STOUR199801-199904

main76625-12470-B4iAE11#..STOUR,VTOUR,ZTOUR199704-199904

BL.SILVER ME,2AN ,2DE ,2DF

main76625-12470-B4iAE11#..STOUR,ZTOUR199904-200207

BL.SILVER ME,2AN ,2DF

main76625-12470-C0iAE11#..BZT,ROSSO,ZTOUR199704-200207

BLACK ME,205

main76625-12470-C0iAE11#..BZT,ROSSO,ZTOUR199904-200207

main76625-12470-C0iAE111,114..STOUR199801-199904

main76625-12470-D0iAE11#199704-199804

RED MM,3K4

main76625-12470-D2iAE111,114..ROSSO199804-199808

RED,3M7

main76625-12470-D3iAE111,114..ROSSO199904-200207

main76625-12470-D3iAE111,114..ROSSO199904-200207

SUPER RED II,3E5

main76625-12470-G2iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76625-12470-J1iAE11#..ROSSO,STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

main76625-19575iAE11#..STOUR,VTOUR199508-199704

main76625-19585-A0iAE11#..STOUR,VTOUR,ZTOUR199605-199704

SUPER WHITE 2,040

main76625-19585-B0iAE11#..STOUR,VTOUR,ZTOUR199508-199704

SILVER PEARL ME.,2AF ,2AL ,2AM

main76625-19585-B0iAE111..BZT199605-199704

SILVER PEARL ME.,2AL

main76625-19585-B1iAE111,115..ZTOUR199608-199704

main76625-19585-B1iAE11#199508-199704

BLUE SILVER ME.,2AN

main76625-19585-B2iAE11#199605-199704

SILVER ME,199

main76625-19585-C0iAE111..BZT199605-199704

BLACK METALLIC,205

main76625-19585-G0iAE11#..STOUR,VTOUR,ZTOUR199605-199704

DK GREEN MICA,6M1

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12430iAE11#..ROSSO,STOUR,VTOUR199704-200207

main76626-12470-A0iAE111,114..STOUR199801-199904

main76626-12470-A0iAE111,114..STOUR199904-200207

main76626-12470-A0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76626-12470-B1iAE111..BZT199704-199804

SILVER ME,199 ,2DH

main76626-12470-B1iAE11#..STOUR,VTOUR,ZTOUR199704-200207

SILVER ME,199

main76626-12470-B1iAE111,114..STOUR199904-200207

main76626-12470-B1iAE111,114..STOUR199801-199904

main76626-12470-B4iAE11#..STOUR,ZTOUR199904-200207

BL.SILVER ME,2AN ,2DF

main76626-12470-B4iAE11#..STOUR,VTOUR,ZTOUR199704-199904

BL.SILVER ME,2AN ,2DE ,2DF

main76626-12470-C0iAE111,114..STOUR199704-200207

BLACK ME,205

main76626-12470-C0iAE111,114..STOUR199801-199904

main76626-12470-C0iAE11#..BZT,ROSSO,ZTOUR199904-200207

main76626-12470-D0iAE11#199704-199804

RED MM,3K4

main76626-12470-D2iAE111,114..ROSSO199804-199808

RED,3M7

main76626-12470-D3iAE111,114..STOUR199904-200207

main76626-12470-D3iAE111,114..ROSSO199904-200207

SUPER RED II,3E5

main76626-12470-G2iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76626-12470-J1iAE11#..ROSSO,STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

main76626-19575iAE11#..STOUR,VTOUR199508-199704

main76626-19585-A0iAE11#..STOUR,VTOUR,ZTOUR199605-199704

SUPER WHITE 2,040

main76626-19585-B0iAE111..BZT199605-199704

SILVER PEARL ME.,2AL

main76626-19585-B0iAE11#..STOUR,VTOUR,ZTOUR199508-199704

SILVER PEARL ME.,2AF ,2AL ,2AM

main76626-19585-B1iAE111,115..ZTOUR199608-199704

main76626-19585-B1iAE11#199508-199704

BLUE SILVER ME.,2AN

main76626-19585-B2iAE11#199605-199704

SILVER ME,199

main76626-19585-C0iAE111..BZT199605-199704

BLACK METALLIC,205

main76626-19585-G0iAE11#..STOUR,VTOUR,ZTOUR199605-199704

DK GREEN MICA,6M1

76851ACOVER, FRONT SPOILER, RH

main76851-13010-A0iAE111,114..STOUR199801-199904

main76851-13010-A0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76851-13010-A0iAE111,114..STOUR199904-200207

main76851-13010-B0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

SILVER ME,199 ,205

main76851-13010-B0iAE111..BZT199704-199804

SILVER ME,199 ,2DH

main76851-13010-B0iAE111,114..STOUR199801-199904

main76851-13010-B0iAE11#..BZT,STOUR,ZTOUR199804-200207

SILVER ME,199

main76851-13010-B0iAE111,114..STOUR199904-200207

main76851-13010-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199804

BL.SILVER ME,2AN ,2DE ,2DF

main76851-13010-C0iAE111,114..STOUR199801-199904

main76851-13010-C0iAE111,114..STOUR199704-200207

BLACK,205

main76851-13010-C0iAE111,114..STOUR199904-200207

main76851-13010-D0iAE11#199704-199804

RED MM,3K4

main76851-13010-D1iAE111,114..STOUR199904-200207

main76851-13010-G0iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76851-13010-J0iAE11#..STOUR,ZTOUR199804-199904

BLUE M.M,8L5

76852ACOVER, FRONT SPOILER, LH

main76852-13010-A0iAE111,114..STOUR199801-199904

main76852-13010-A0iAE111,114..STOUR199904-200207

main76852-13010-A0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76852-13010-B0iAE111,114..STOUR199904-200207

main76852-13010-B0iAE111..BZT199704-199804

SILVER ME,199 ,205

main76852-13010-B0iAE111..BZT199704-199804

SILVER ME,199 ,2DH

main76852-13010-B0iAE111,114..STOUR199801-199904

main76852-13010-B0iAE11#..BZT,STOUR,ZTOUR199804-200207

SILVER ME,199

main76852-13010-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199804

BL.SILVER ME,2AN ,2DE ,2DF

main76852-13010-C0iAE111,115..BZT,ZTOUR199704-200207

BLACK,205

main76852-13010-C0iAE111,115..BZT,ZTOUR199904-200207

main76852-13010-C0iAE111,114..STOUR199801-199904

main76852-13010-D0iAE11#199704-199804

RED MM,3K4

main76852-13010-D1iAE111,114..STOUR199904-200207

main76852-13010-G0iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76852-13010-J0iAE11#..STOUR,ZTOUR199804-199904

BLUE M.M,8L5

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main76853-10010iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

76854ARETAINER, FRONT SPOILER, NO.2

main76854-13010iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

76871SPOILER, REAR

main76871-13901iAE11#199508-200207

76872PROTECTOR, REAR SPOILER, NO.1

main76872-13020iAE11#199508-200207

76891SPOILER, REAR NO.1

main76891-12110iAE11#199508-200207

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-12060-A2iAE111,114..STOUR199904-200207

main76901-12060-A2iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76901-12060-A2iAE111,114..STOUR199801-199904

main76901-12060-B6iAE111,114..STOUR199904-200207

main76901-12060-B6iAE111..BZT199704-200207

SILVER ME.,199

main76901-12060-B6iAE111..BZT199704-199804

SILVER ME.,199 ,2DH

main76901-12060-B6iAE111,114..STOUR199801-199904

main76901-12060-C1iAE111,114..STOUR199704-200207

BLACK,205

main76901-12060-C1iAE111,114..STOUR199801-199904

main76901-12060-C1iAE111,115..BZT,ZTOUR199904-200207

main76901-12060-D1iAE11#199704-199804

RED MICA ME.,3K4

main76901-12060-D2iAE111,114..STOUR199904-200207

main76901-12060-G2iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76901-12060-J2iAE11#..STOUR,ZTOUR199804-199904

BLUE M.M,8L5

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-12060-A2iAE111,114..STOUR199904-200207

main76902-12060-A2iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SUPER WHITE 2,040

main76902-12060-A2iAE111,114..STOUR199801-199904

main76902-12060-B6iAE11#..STOUR,VTOUR,ZTOUR199704-199804

SILVER ME.,199 ,2DH

main76902-12060-B6iAE111,114..STOUR199801-199904

main76902-12060-B6iAE111..BZT199704-200207

SILVER ME.,199

main76902-12060-B6iAE111,114..STOUR199904-200207

main76902-12060-C1iAE111,114..STOUR199904-200207

main76902-12060-C1iAE111..BZT199704-200207

BLACK,205

main76902-12060-C1iAE111,114..STOUR199801-199904

main76902-12060-D1iAE11#199704-199804

RED MICA ME.,3K4

main76902-12060-D2iAE111,114..STOUR199904-200207

main76902-12060-G2iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main76902-12060-J2iAE11#..STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

76911BMUDGUARD, SIDE, RH

main76911-12901iAE11#..BZT,STOUR,ZTOUR199809-200207

76912DMUDGUARD, SIDE, LH

main76912-12901iAE11#..BZT,STOUR,ZTOUR199809-200207

76915MUDGUARD, REAR DOOR, RH

main76915-12090iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

76916BMUDGUARD, REAR DOOR, LH

main76916-12090iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-12050-B0iAE11#199704-200207

GRAY,040 ,199

main76925-12050-B0iAE111,114..STOUR199801-199904

main76925-12050-B0iAE11#..BZT,STOUR,ZTOUR199804-199904

GRAY,040 ,199 ,6P7

main76925-12050-C0iAE111..BZT199804-199904

BLACK,8L5

main76925-12050-C0iAE111..BZT199704-199804

BLACK,205 ,3K4

main76925-12050-C0iAE111..BZT199704-199804

BLACK,3K4

main76925-12050-C0iAE111,114..STOUR199801-199904

main76925-12050-C0iAE111..BZT199804-200207

BLACK,205

76926DPROTECTOR, SIDE MUDGUARD, LH

main76925-12050-B0iAE11#199704-200207

GRAY,040 ,199

main76925-12050-B0iAE111,114..STOUR199801-199904

main76925-12050-B0iAE11#..BZT,STOUR,ZTOUR199804-199904

GRAY,040 ,199 ,6P7

main76925-12050-C0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

BLACK,3K4

main76925-12050-C0iAE111..BZT199704-199804

BLACK,205 ,3K4

main76925-12050-C0iAE11#..STOUR,ZTOUR199804-200207

BLACK,205

main76925-12050-C0iAE111,114..STOUR199801-199904

main76925-12050-C0iAE11#..STOUR,ZTOUR199804-199904

BLACK,8L5

9015950255

main90159-50255

9015950346

main90159-50346

9015960602

main90159-60602

9016360019

main90163-60019

9017606041

main90176-06041

9017905076

main90179-05076

9018306019

main90183-06019

9018905141

main90189-05141

9018906006

main90189-06006

9018906013

main90189-06013

9046708185

main90467-08185

9046709075

main90467-09075

9046710162

main90467-10162

91621B0612

main91621-B0612

35 parts on this diagram · 1 diagram in section
