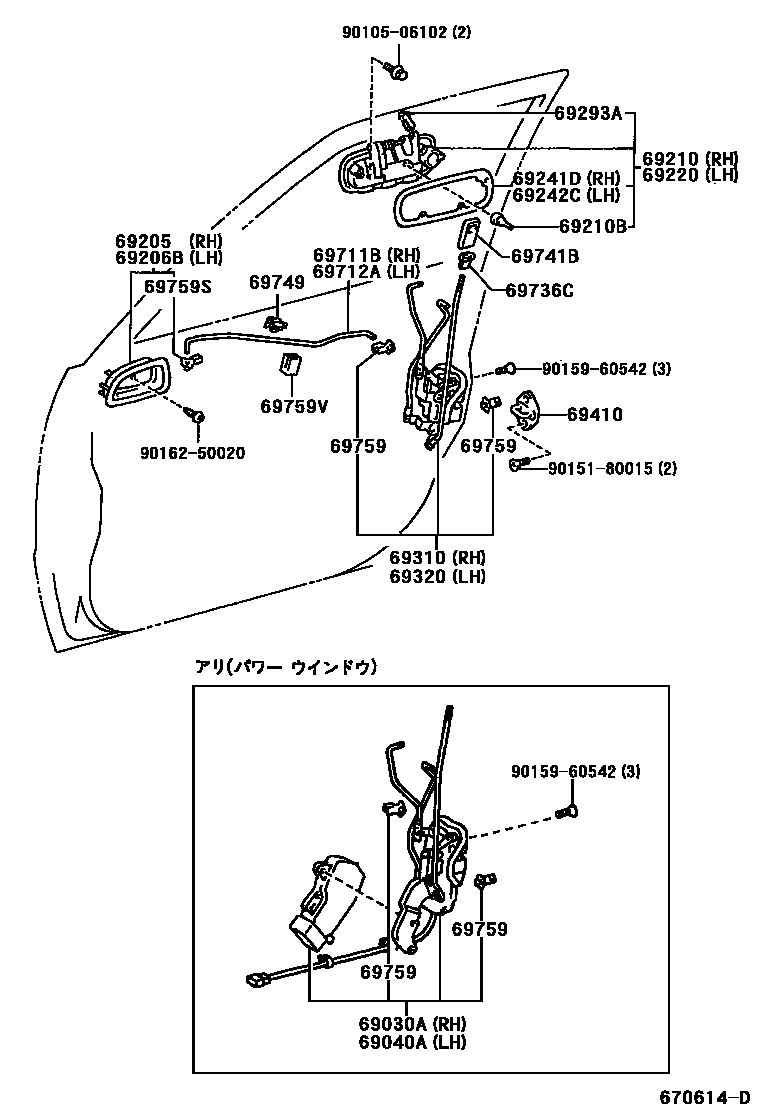

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-12330iAE11#199508-199704

sub69030-12430

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12340iAE11#199508-199704

sub69040-12430

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12160-B0iAE11#..BZT,STOUR,VTOUR199508-200207

SHADOW GRAY,TRIM1#

sub69205-12160

main69205-12160-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69205-12160

main69205-12160-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69205-12160

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12160-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69206-12160

main69206-12160-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub69206-12160

main69206-12160-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69206-12160

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12190iAE11#199508-199704

main69210-12200-A0iAE111,115..ZTOUR199605-199704

SUPER WHITE 2,040

sub69210-12290

main69210-12200-B3iAE111,115..BZT,ZTOUR199605-199704

SILVER ME,199

sub69210-12290

main69210-12200-C0iAE111..BZT199605-199704

BLACK ME,2AN

sub69210-12290

main69210-12200-C0iAE111,115..ZTOUR199605-199704

BLACK ME,2AN ,205

sub69210-12290

main69210-12200-D0iAE111,115..ZTOUR199605-199704

RED MM,2AF

sub69210-12290

main69210-12200-G1iAE111,115..ZTOUR199605-199704

DK GREEN MICA,6M1

sub69210-12290

main69210-12200-G1iAE111,115..ZTOUR199608-199704

sub69210-12290

main69210-12200-G2iAE111,115..ZTOUR199605-199704

BLUISH GREEN M,2AM

sub69210-12290

main69210-12200-J0iAE111,115..BZT,ZTOUR199605-199704

DK.BLUE MC.,2AL

sub69210-12290

main69210-12280iAE11#..ROSSO,STOUR,VTOUR199704-200207

main69210-12290-A0iAE111,114..STOUR199801-199904

sub69210-12290

main69210-12290-A0iAE111,114..STOUR199904-200207

sub69210-12290

main69210-12290-A0iAE115;AE111,114..BZT,STOUR199905-200004

sub69210-12290

main69210-12290-A0iAE111,115..BZT,ZTOUR199704-200207

SUPER WHITE 2,040

sub69210-12290

main69210-12290-B2iAE111,115..ZTOUR199704-199804

GRAY ME.,2DH

sub69210-12290

main69210-12290-B3iAE111,114..STOUR199801-199904

sub69210-12290

main69210-12290-B3iAE111,115..BZT,ZTOUR199704-200207

SILVER ME,199

sub69210-12290

main69210-12290-B3iAE115;AE111,114..BZT,STOUR199905-200004

sub69210-12290

main69210-12290-B3iAE111,114..STOUR199904-200207

sub69210-12290

main69210-12290-C0iAE115;AE111,114..BZT,STOUR199905-200004

sub69210-12290

main69210-12290-C0iAE111,115..ZTOUR199704-199904

BLACK ME,2AN

sub69210-12290

main69210-12290-C0iAE111,114..STOUR199801-199904

sub69210-12290

main69210-12290-C0iAE111..BZT199704-200207

BLACK ME,205

sub69210-12290

main69210-12290-C0iAE111,115..ZTOUR199904-200207

BLACK ME,2AN ,205

sub69210-12290

main69210-12290-C0iAE111,115..ZTOUR199904-200207

sub69210-12290

main69210-12290-D0iAE111,115..BZT,ZTOUR199704-199804

RED MM,3K4

sub69210-12290

main69210-12290-D4iAE111,114..STOUR199904-200207

sub69210-12290

main69210-12290-G0iAE111,115..ZTOUR199704-199904

DK.GREEN M.M.,2DE

sub69210-12290

main69210-12290-G6iAE111,115..BZT,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

sub69210-12290

main69210-12290-J0iAE111,115..ZTOUR199704-200207

DK.BLUE MC.,2DF

sub69210-12290

main69210-12290-J2iAE111,115..ZTOUR199804-199904

BLUE M.M.,8L5

sub69210-12290

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iAE11#199508-200207

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12180iAE11#199508-199704

main69220-12190-A0iAE111,115..ZTOUR199605-199704

SUPER WHITE 2,040

sub69220-12290

sub69220-12190

main69220-12190-B3iAE111,115..BZT,ZTOUR199605-199704

SILVER ME,199

sub69220-12290

sub69220-12190

main69220-12190-C0iAE111,115..ZTOUR199605-199704

BLACK ME,2AN ,205

sub69220-12290

sub69220-12190

main69220-12190-C0iAE111..BZT199605-199704

BLACK ME,2AN

sub69220-12290

sub69220-12190

main69220-12190-D0iAE111,115..ZTOUR199605-199704

RED MM,2AF

sub69220-12290

sub69220-12190

main69220-12190-G1iAE111,115..ZTOUR199608-199704

sub69220-12290

sub69220-12190

main69220-12190-G1iAE111,115..ZTOUR199605-199704

DK GREEN MICA,6M1

sub69220-12290

sub69220-12190

main69220-12190-G2iAE111,115..ZTOUR199605-199704

BLUISH GREEN M,2AM

sub69220-12290

sub69220-12190

main69220-12190-J0iAE111,115..BZT,ZTOUR199605-199704

DK.BLUE MC.,2AL

sub69220-12290

sub69220-12190

main69220-12280iAE11#..ROSSO,STOUR,VTOUR199704-200207

main69220-12290-A0iAE111,114..STOUR199904-200207

sub69220-12290

main69220-12290-A0iAE111,115..BZT,ZTOUR199704-200207

SUPER WHITE 2,040

sub69220-12290

main69220-12290-A0iAE115;AE111,114..BZT,STOUR199905-200004

sub69220-12290

main69220-12290-A0iAE111,114..STOUR199801-199904

sub69220-12290

main69220-12290-B2iAE111,115..ZTOUR199704-199804

GRAY ME.,2DH

sub69220-12290

main69220-12290-B3iAE111,114..STOUR199801-199904

sub69220-12290

main69220-12290-B3iAE111,114..STOUR199904-200207

sub69220-12290

main69220-12290-B3iAE115;AE111,114..BZT,STOUR199905-200004

sub69220-12290

main69220-12290-B3iAE111,115..BZT,ZTOUR199704-200207

SILVER ME,199

sub69220-12290

main69220-12290-C0iAE111,114..STOUR199904-200207

sub69220-12290

main69220-12290-C0iAE111,115..ZTOUR199704-199904

BLACK ME,2AN

sub69220-12290

main69220-12290-C0iAE111,114..STOUR199801-199904

sub69220-12290

main69220-12290-C0iAE115;AE111,114..BZT,STOUR199905-200004

sub69220-12290

main69220-12290-C0iAE111..BZT199704-200207

BLACK ME,205

sub69220-12290

main69220-12290-C0iAE111,115..ZTOUR199904-200207

BLACK ME,2AN ,205

sub69220-12290

main69220-12290-D0iAE111,115..BZT,ZTOUR199704-199804

RED MM,3K4

sub69220-12290

main69220-12290-D4iAE111,114..STOUR199904-200207

sub69220-12290

main69220-12290-G0iAE111,115..ZTOUR199704-199904

DK.GREEN M.M.,2DE

sub69220-12290

main69220-12290-G6iAE111,115..BZT,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

sub69220-12290

main69220-12290-J0iAE111,115..ZTOUR199704-200207

DK.BLUE MC.,2DF

sub69220-12290

main69220-12290-J2iAE111,115..ZTOUR199804-199904

BLUE M.M.,8L5

sub69220-12290

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-12100iAE11#199508-200207

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-12050iAE11#199508-200207

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE11#199508-200207

main69293-12040iAE11#199508-200207

69310LOCK ASSY, FRONT DOOR, RH

main69310-12520iAE111,114..STOUR199508-199704

sub69310-12580

main69310-12580iAE111,114..STOUR199704-200207

main69310-12590iAE11#..BZT,ROSSO,VTOUR,ZTOUR199704-200207

69320LOCK ASSY, FRONT DOOR, LH

main69040-12340iAE111,114..STOUR199508-199704

sub69040-12430

main69320-12530iAE111,114..STOUR199508-199704

sub69320-12580

main69320-12580iAE111,114..STOUR199704-200207

main69320-12590iAE111,114..STOUR199704-200207

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE11#199508-200207

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12170iAE11#199508-200207

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12180iAE11#199508-200207

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12120iAE11#199508-199704

main69736-12121iAE11#199704-200207

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B0iAE11#..BZT,STOUR,VTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69741-12040

main69741-12040-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub69741-12040

main69741-12040-B3iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iAE11#199508-200207

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE11#199508-200207

main69759-20050iAE11#199508-200207

main69759-24010iAE11#199508-200207

main69759-24020iAE11#199508-200207

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iAE11#199508-200207

main69759-22050iAE11#199508-200207

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-14010iAE11#199508-200207

80 X 40

main69759-20390iAE11#199508-200207

60 X 40

9010506102

main90105-06102

9015180015

main90151-80015

9015960542

main90159-60542

9016250020

main90162-50020

25 parts on this diagram · 2 diagrams in section
