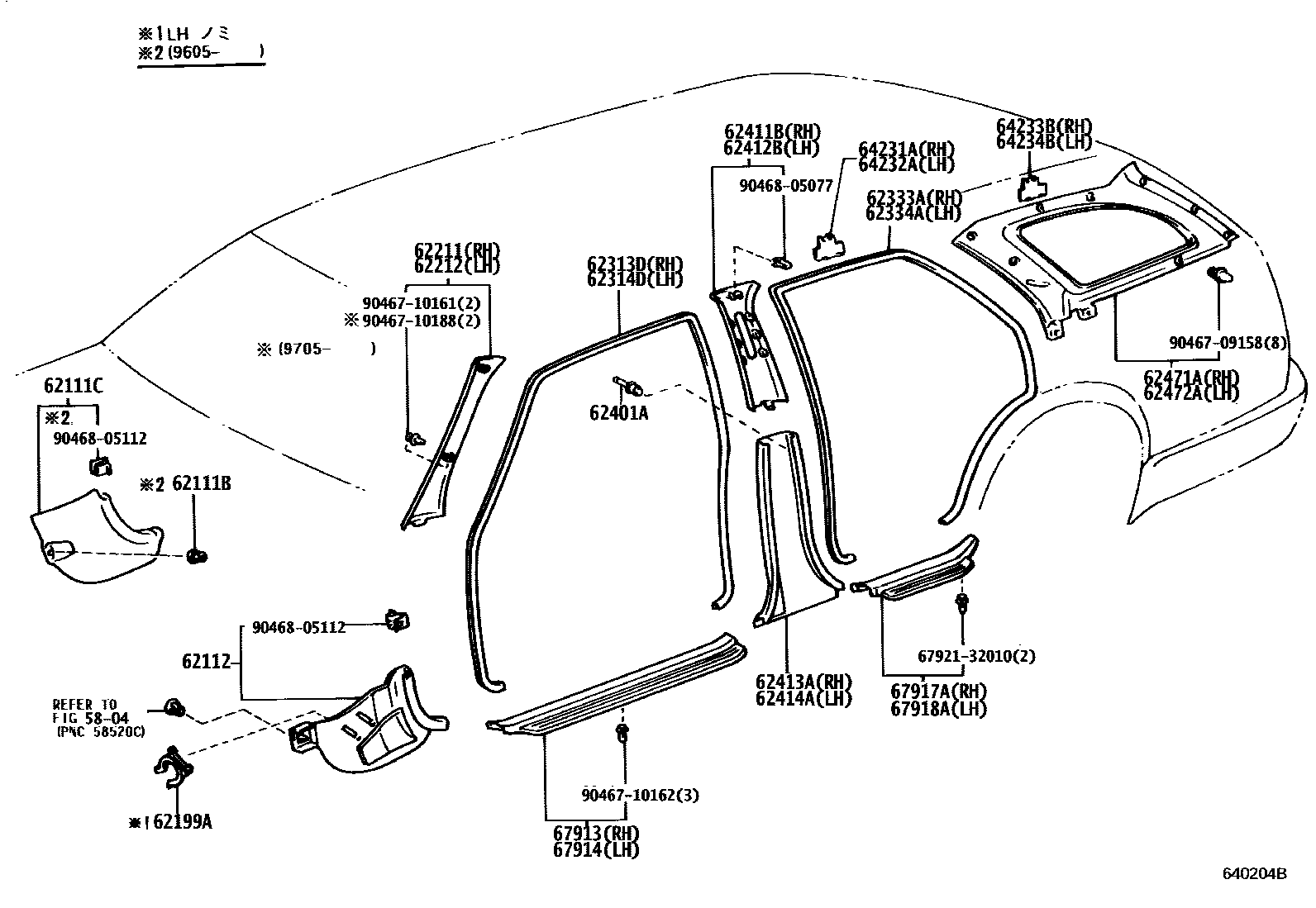

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05050-22iAE11#..BZT,STOUR,VTOUR199605-200207

BLACK,TRIM1#

sub90467-05050

main90467-05050-22iAE111,115..ZTOUR199605-199704

BLACK,TRIM16,17

sub90467-05050

62111CBOARD, COWL SIDE TRIM, RH

main62111-12230-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

sub62111-12231

sub90467-05050

main62111-12231-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62111-12231

main62111-12231-B0iAE111,115..ZTOUR199605-200207

SHADOW GRAY,TRIM1#

sub62111-12231

main62111-12231-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62111-12231

62112BOARD, COWL SIDE TRIM, LH

main62112-12230-B0iAE11#..BZT,STOUR,VTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62112-12230

main62112-12230-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub62112-12230

main62112-12230-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62112-12230

62199AHOLDER, FUSEE

main90468-25003iAE11#199508-200207

62211GARNISH, FRONT PILLAR, RH

main62211-12280-B0iAE111,115..ZTOUR199508-199704

LT.GRAY,TRIM1#

main62211-12280-B0iAE11#..BZT,STOUR,VTOUR199605-199704

LT.GRAY,TRIM16,17

main62211-12300-B0iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62211-12300

main62211-12300-B1iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub62211-12300

62212GARNISH, FRONT PILLAR, LH

main62212-12280-B0iAE111,115..ZTOUR199508-199704

LT.GRAY,TRIM1#

main62212-12280-B0iAE111,115..ZTOUR199605-199704

LT.GRAY,TRIM16,17

main62212-12300-B0iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62212-12300

main62212-12300-B1iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub62212-12300

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12150-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62313-12150

main62313-12150-B0iAE111,115..ZTOUR199508-199704

SHADOW GRAY,TRIM1#

sub62313-12150

main62313-12180-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main62313-12180-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-12060-B0iAE11#199508-199704

SHADOW GRAY,TRIM1#

sub62314-12060

main62314-12060-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62314-12060

main62314-12080-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main62314-12080-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-12120-B0iAE111,115..ZTOUR199508-199704

SHADOW GRAY,TRIM1#

sub62333-12120

main62333-12120-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62333-12120

main62333-12140-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

sub62333-12140

main62333-12140-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62333-12140

62334ATRIM, REAR DOOR OPENING, LH

main62334-12020-B0iAE11#199508-199704

SHADOW GRAY,TRIM1#

sub62334-12020

main62334-12020-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub62334-12020

main62334-12040-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

sub62334-12040

main62334-12040-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62334-12040

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07071-B4iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

sub90467-07071

main90467-07071-B6iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub90467-07071

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12490-B0iAE11#..BZT,STOUR,VTOUR199508-199704

LT.GRAY,TRIM1#

main62411-12490-B0iAE111,115..ZTOUR199605-199704

LT.GRAY,TRIM16,17

main62411-12500-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub62411-12500

main62411-12500-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62411-12500

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12490-B0iAE111,115..ZTOUR199605-199704

LT.GRAY,TRIM16,17

main62412-12490-B0iAE111,115..ZTOUR199508-199704

LT.GRAY,TRIM1#

main62412-12500-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62412-12500

main62412-12500-B2iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub62412-12500

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12210-B0iAE11#199508-199704

SHADOW GRAY,TRIM1#

main62413-12210-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

main62413-12220-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

sub62413-12220

main62413-12220-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62413-12220

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12210-B0iAE11#199508-199704

SHADOW GRAY,TRIM1#

main62414-12210-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

main62414-12220-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

sub62414-12220

main62414-12220-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub62414-12220

62471AGARNISH, ROOF SIDE, INNER RH

main62405-13040-B1iAE11#199508-199704

LT.GRAY,TRIM1#

main62405-13040-B1iAE111,115..ZTOUR199605-199704

LT.GRAY,TRIM16,17

main62405-13050-B0iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main62405-13050-B1iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62406-13040-B1iAE11#..BZT,STOUR,VTOUR199508-199704

LT.GRAY,TRIM1#

main62406-13040-B1iAE111,115..ZTOUR199605-199704

LT.GRAY,TRIM16,17

main62406-13050-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

main62406-13050-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64231AHOOK, ROOM PARTITION NET, FRONT RH

main64231-13010-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub64231-13010

main64231-13010-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub64231-13010

64232AHOOK, ROOM PARTITION NET, FRONT LH

main64232-13010-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub64232-13010

main64232-13010-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub64232-13010

64233BHOOK, ROOM PARTITION NET, REAR RH

main64233-13010-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub64233-13010

main64233-13010-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub64233-13010

64234BHOOK, ROOM PARTITION NET, REAR LH

main64233-13010-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

sub64233-13010

main64233-13010-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub64233-13010

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12240-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub67913-12240

main67913-12240-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub67913-12240

main67913-12240-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub67913-12240

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12210-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub67914-12210

main67914-12210-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub67914-12210

main67914-12210-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub67914-12210

67917APLATE, REAR DOOR SCUFF, RH

main67917-12110-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub67917-12110

main67917-12110-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub67917-12110

main67917-12110-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub67917-12110

67918APLATE, REAR DOOR SCUFF, LH

main67918-12100-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub67918-12100

main67918-12100-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub67918-12100

main67918-12100-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub67918-12100

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9046709158

main90467-09158

9046710161

main90467-10161

9046710162

main90467-10162

9046710188

main90467-10188

9046805077

main90468-05077

9046805112

main90468-05112

33 parts on this diagram · 1 diagram in section
